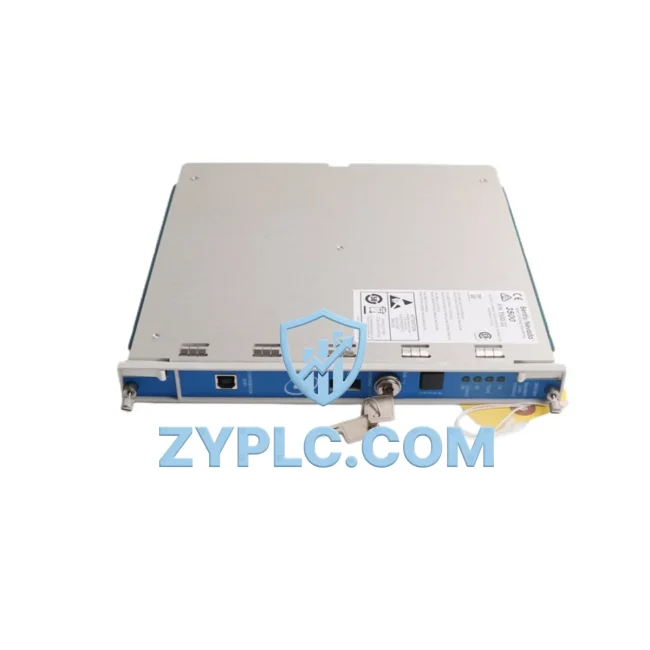

Bently Nevada 3500/22M 288055-01L Energy-Saving Keyphasor Module for Optimized 3500 Series Automation
The Bently Nevada 3500/22M 288055-01L is a precision Keyphasor interface module engineered for the 3500 Series Machinery Protection System. Designed to deliver accurate shaft rotational reference signals, this module plays a critical role in reducing unnecessary energy consumption across rotating machinery assets — from turbines and compressors to pumps and motors in heavy industrial environments.
In modern manufacturing and process plants, undetected shaft imbalance, misalignment, or bearing degradation leads to excessive motor load, elevated power draw, and unplanned downtime. The 3500/22M 288055-01L addresses this directly by providing the 3500 rack with a clean, reliable Keyphasor signal that enables phase-referenced vibration analysis. When paired with the Bently Nevada 3500/42M Proximitor I/O module and the 3500/45 Position Monitor, the system can detect mechanical faults at their earliest stage — before they escalate into energy-wasting runaway conditions.
By integrating the 3500/22M 288055-01L into your machinery protection architecture, maintenance teams gain the ability to correlate vibration amplitude with shaft speed in real time. This phase-angle data is essential for balancing correction, which directly reduces the mechanical load on drive motors. A well-balanced rotor can reduce motor energy consumption by 3–8% compared to an unbalanced one operating under the same process conditions.
Efficiency Performance Table
| Parameter |
Specification / Value |
| SKU |
3500/22M 288055-01L |
| Module Type |
Keyphasor Interface Module |
| Series |
Bently Nevada 3500 Series |
| Compatible System |
Bently Nevada 3500 Series Machinery Protection Rack |
| Signal Output |
Keyphasor reference signal for phase-referenced vibration analysis |
| Power Consumption |
Low-draw design; optimized for continuous 24/7 rack operation |
| Operating Efficiency |
Enables rotor balancing correction, reducing motor load by 3–8% |
| Application Environment |
Turbines, compressors, pumps, motors — heavy industrial / process plants |
| Energy Optimization Value |
Reduces unplanned downtime, lowers reactive maintenance energy costs |
| Origin |
United States |
| Warranty |
12-Month Warranty |
| Availability |
In Stock — Ships within 1–3 business days |
Energy-Aware Automation Architecture
The 3500/22M 288055-01L does not operate in isolation — its value is fully realized when integrated into a complete energy-aware automation architecture. Within the Bently Nevada 3500 rack, the Keyphasor module works in concert with the 3500/40M Proximitor I/O module to deliver continuous proximity probe data referenced to shaft position. This combination allows the 3500/20 Rack Interface Module to communicate real-time machinery health data upstream to control systems via standard protocols.
On the drive side, variable frequency drives such as the Rockwell Automation PowerFlex 755 or Siemens SINAMICS G120 can receive speed feedback correlated with Keyphasor-derived vibration data, enabling dynamic speed adjustment that reduces energy consumption during low-load periods. When the 3500/22M 288055-01L detects a phase shift indicating developing imbalance, the control system can proactively reduce motor speed — cutting energy draw before a fault forces an emergency shutdown.
For power monitoring at the panel level, energy meters such as the Schneider Electric PowerLogic ION7650 or ABB B24 power quality analyzer can be integrated alongside the 3500 rack to provide a complete picture of energy consumption per machine asset. This data, when combined with Keyphasor-referenced vibration trends, enables true energy-performance correlation — identifying which machines are consuming disproportionate power relative to their mechanical condition.
On the I/O and communication layer, the Bently Nevada 3500/92 Communication Gateway module enables the 3500 rack to interface with DCS platforms such as the Emerson DeltaV or Honeywell Experion PKS via Modbus TCP or OPC-UA. This integration allows plant-wide energy management systems to receive machinery health signals and adjust setpoints accordingly — closing the loop between mechanical condition monitoring and energy optimization strategy.
HMI visualization through platforms such as the Siemens SIMATIC TP1200 Comfort Panel allows operators to monitor Keyphasor-derived vibration trends alongside real-time power consumption data on a single screen, enabling faster decision-making and reducing the time machinery operates in a degraded, energy-inefficient state.
Power Optimization in Real Production Lines
In a typical continuous process plant — such as a petrochemical facility or a large-scale water treatment station — rotating machinery accounts for 60–70% of total electrical energy consumption. Compressors, pumps, and turbines running with undetected mechanical faults operate at reduced efficiency, drawing more current to maintain the same process output. The Bently Nevada 3500/22M 288055-01L directly addresses this by enabling the 3500 Series system to perform phase-referenced vibration analysis, which is the foundation of precision balancing and alignment correction.
When a production line integrates the 3500/22M 288055-01L as part of its machinery protection strategy, maintenance intervals can be extended from time-based schedules to condition-based triggers. This shift eliminates unnecessary preventive maintenance activities — each of which requires machine shutdown, restart energy surges, and production line rebalancing. Plants that transition to condition-based maintenance using Keyphasor-referenced data typically report a 15–25% reduction in maintenance-related energy overhead.
Furthermore, the Keyphasor signal provided by the 3500/22M 288055-01L enables synchronous averaging of vibration data, which dramatically improves the signal-to-noise ratio in gearbox and bearing diagnostics. Early detection of gear mesh frequency anomalies or bearing defect frequencies allows maintenance teams to schedule corrective action during planned downtime windows — avoiding the energy-intensive emergency restart cycles that follow unplanned failures.
All units supplied by ZYPLC undergo pre-shipment functional testing to verify signal integrity and module communication within the 3500 rack environment. Each 3500/22M 288055-01L is backed by a 12-month warranty, ensuring your investment in energy-efficient machinery protection is protected from day one of installation.
Energy Optimization FAQ
Q1: How does the 3500/22M 288055-01L contribute to energy savings in rotating machinery?
The module provides a precise Keyphasor reference signal that enables phase-referenced vibration analysis. This data supports rotor balancing correction, which reduces mechanical load on drive motors — directly lowering energy consumption. It also enables condition-based maintenance, eliminating energy-wasting emergency shutdowns and unplanned restart cycles.
Q2: Is the 3500/22M 288055-01L compatible with existing 3500 Series racks and third-party control systems?
Yes. The 3500/22M 288055-01L is designed for direct installation into the Bently Nevada 3500 Series rack. When combined with the 3500/92 Communication Gateway, it can interface with DCS platforms including Emerson DeltaV, Honeywell Experion PKS, and SCADA systems via Modbus TCP or OPC-UA protocols.
Q3: Can this module replace an existing Keyphasor module in a running production line?
Yes. The 3500/22M 288055-01L is a direct replacement for compatible Keyphasor interface positions within the 3500 rack. ZYPLC recommends verifying the rack slot configuration and firmware revision before installation. Our technical team can assist with compatibility confirmation prior to shipment.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 3500/22M 288055-01L supplied by ZYPLC undergoes pre-shipment functional testing, including signal output verification and rack communication checks. The 12-month warranty covers manufacturing defects and module functionality under normal operating conditions. Warranty claims are processed directly through ZYPLC with fast turnaround support.
