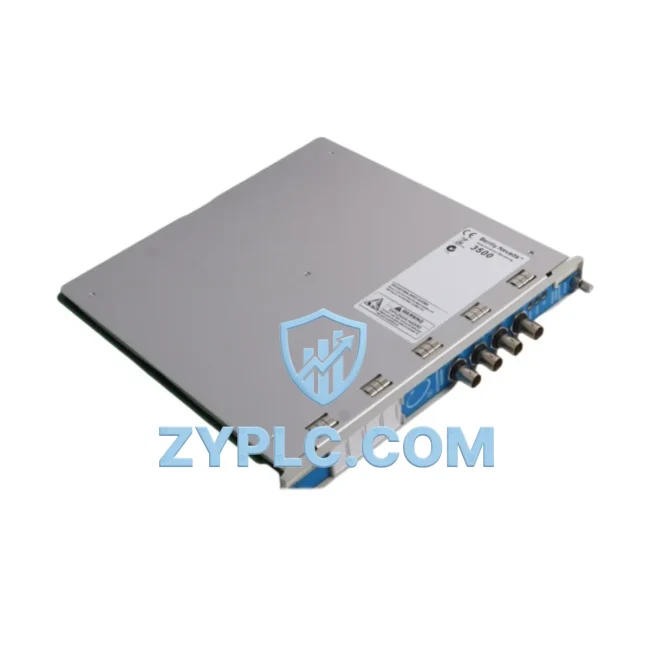

The Bently Nevada 3500/40 125672-01 is a dual-channel vibration monitor engineered for seamless integration within the Bently Nevada 3500 Series modular condition monitoring platform. Designed to occupy a standard 3500 rack slot, this module delivers continuous, real-time vibration measurement for rotating machinery protection in demanding industrial environments. Its role within a layered automation architecture extends far beyond simple signal acquisition — it serves as a critical node in the control system’s machinery health layer, providing the upstream data that drives protective relay actions, DCS alarm integration, and long-term predictive maintenance strategies.

In modern industrial facilities, machinery protection is not a standalone function. The 3500/40 125672-01 operates as part of a tightly coordinated system that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and the execution layer. Understanding its position within this hierarchy is essential for engineers designing systems for power generation, petrochemical processing, water treatment, mining, metallurgy, or continuous manufacturing lines.

Architecture Specification Table

Coordinated Control System Design

The 3500/40 125672-01 does not function in isolation. Its value is realized only when it is properly integrated into the broader 3500 Series rack architecture and connected to the surrounding layers of the control system. A complete machinery protection system built around this module typically includes the following coordinated components:

At the rack and power layer, the 3500/05 Rack Interface Module provides the system backbone, while the 3500/15 Power Supply Module delivers regulated DC power to all installed cards via the backplane. Redundant power configurations using dual 3500/15 units are common in critical applications such as turbine protection and compressor monitoring, ensuring that a single power failure does not interrupt machinery surveillance.

At the I/O and signal conditioning layer, the 3500/40 125672-01 receives its input from Bently Nevada 3300 XL proximity probe systems, which include the probe, extension cable, and proximitor sensor. These transducer assemblies convert shaft displacement into a DC voltage signal that the monitor processes against configurable alert and danger setpoints. Proper cable routing, grounding, and proximitor mounting are critical to signal integrity and must be validated during commissioning.

At the network and communication layer, the 3500/92 Communication Gateway Module enables the rack to interface with plant-level DCS and SCADA systems via Modbus, Profibus, or other supported protocols. This gateway allows the vibration data captured by the 3500/40 125672-01 to be transmitted to operator workstations, historian servers, and alarm management systems in real time. The 3500/22 Transient Data Interface (TDI) module complements this by capturing high-resolution waveform data for advanced diagnostics and machinery analysis.

At the human-machine interface layer, operators interact with the system through System 1 Evolution software or compatible HMI platforms that display trend data, orbit plots, and alarm histories sourced from the 3500 rack. This layer transforms raw vibration measurements into actionable machinery health intelligence, supporting both real-time protection decisions and long-term predictive maintenance planning.

At the execution and protection layer, the relay outputs from the 3500/40 125672-01 connect to emergency shutdown (ESD) systems, solenoid valves, or interlock circuits that initiate protective actions when vibration thresholds are exceeded. In turbine and compressor applications, these relay signals are often wired in series with other protective monitors — such as the 3500/42 Proximitor/Seismic Monitor or the 3500/45 Position Monitor — to form a comprehensive machinery protection voting logic.

For systems requiring redundancy, the 3500 platform supports dual-rack configurations where a secondary rack mirrors the primary, ensuring continuous monitoring even during module replacement or rack maintenance. This architecture is particularly important in power generation and refinery applications where unplanned shutdowns carry significant operational and safety consequences.

Application in Layered Automation Systems

The 3500/40 125672-01 is deployed across a wide range of industries where rotating machinery protection is a regulatory and operational requirement:

Power Generation: In gas turbine and steam turbine protection systems, the 3500/40 125672-01 monitors shaft radial vibration on journal bearings. It integrates with turbine control systems (TCS) and ESD panels to provide automatic trip signals when vibration exceeds danger setpoints, protecting multi-million-dollar assets from catastrophic failure.

Petrochemical and Refinery: Centrifugal compressors, pumps, and expanders in hydrocarbon processing facilities rely on continuous vibration monitoring to comply with API 670 machinery protection standards. The 3500/40 125672-01 is a recognized solution for API 670-compliant installations, providing the dual-channel measurement and relay output architecture required by the standard.

Water and Wastewater Treatment: Large pumping stations and blower systems benefit from the 3500/40’s ability to detect early-stage bearing degradation and rotor imbalance, reducing unplanned downtime and extending equipment service intervals in facilities where maintenance access is limited.

Mining and Metallurgy: Ball mills, crushers, and conveyor drive systems in mining operations generate significant vibration signatures that must be continuously monitored. The 3500/40 125672-01 provides the measurement resolution and alarm flexibility needed to distinguish normal operational vibration from fault conditions in these high-noise environments.

Packaging and Continuous Manufacturing: High-speed rotating equipment on packaging lines and process manufacturing systems requires vibration monitoring to maintain product quality and line availability. Integration of the 3500/40 125672-01 into the plant’s DCS via the 3500/92 gateway enables centralized alarm management and condition-based maintenance scheduling.

Architecture Engineering FAQ

Q1: Is the 3500/40 125672-01 compatible with existing 3500 Series racks, and can it be installed alongside other 3500 monitor modules?
Yes. The 3500/40 125672-01 is designed for direct installation into any standard 3500 Series rack chassis. It communicates with the rack’s backplane and is fully compatible with other 3500 Series modules, including the 3500/15 Power Supply, 3500/22 TDI, 3500/42 Proximitor/Seismic Monitor, 3500/45 Position Monitor, and 3500/92 Communication Gateway. Mixed-module rack configurations are standard practice in multi-parameter machinery protection systems.

Q2: What commissioning steps are required when integrating the 3500/40 125672-01 into a new or existing control architecture?
Commissioning requires verification of proximitor gap voltage, signal cable continuity, and backplane communication status using Bently Nevada’s rack configuration software. Alert and danger setpoints must be configured according to the machinery OEM’s vibration limits and the applicable API 670 or ISO 7919 standards. System integration testing should confirm that relay outputs correctly trigger downstream ESD or interlock circuits under simulated alarm conditions before the system is placed in service.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance of the 3500/40 125672-01?
ZYPLC’s 12-Month Warranty covers the 3500/40 125672-01 against manufacturing defects and functional failures under normal operating conditions. Our technical team provides pre-sales configuration guidance, post-sales commissioning support, and replacement unit sourcing to minimize system downtime. For facilities managing large installed bases of 3500 Series equipment, ZYPLC maintains inventory of critical modules to support rapid exchange programs and scheduled maintenance outages.
