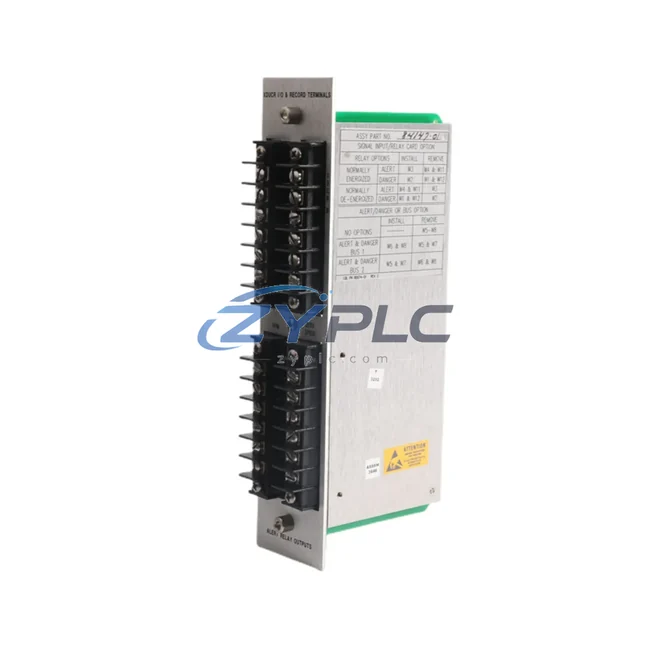

Bently Nevada 84147-01 XDCR I/O Terminal for 84147

Bently Nevada 84147-01 XDCR I/O Terminal for 84147 Control System

The Bently Nevada 84147-01 XDCR I/O Record Terminal is a precision-engineered signal interface component designed to operate within the Bently Nevada 84147 Series vibration monitoring architecture. In modern industrial automation environments — spanning rotating machinery protection, turbine control, compressor monitoring, and critical asset management — the integrity of the transducer signal path is foundational to system reliability. The 84147-01 terminal serves as the structured I/O interface between field-mounted transducers and the monitoring rack, ensuring that raw vibration, proximity, and dynamic pressure signals are accurately routed, conditioned, and delivered to the processing layer without signal degradation or cross-channel interference.

Unlike standalone instruments, the 84147-01 is architected for system-level deployment. Its value is realized not in isolation, but as a coordinated element within a layered automation hierarchy that includes rack-mounted monitor modules, power supply assemblies, communication gateways, and supervisory control platforms. Engineers specifying this terminal for new installations or replacement projects benefit from its direct compatibility with the broader 84147 ecosystem, reducing integration risk and commissioning time while supporting long-term maintainability across the asset lifecycle.

Product Specification Table

System Compatibility Notes

The 84147-01 XDCR I/O Record Terminal achieves its full operational value when deployed as part of a coordinated Bently Nevada 84147 Series monitoring system. In a complete machinery protection architecture, the terminal interfaces directly with field transducers — typically Bently Nevada 3300 XL 8mm or 3300 XL 11mm proximity probes — which provide continuous shaft displacement and vibration data from rotating equipment such as steam turbines, gas compressors, and centrifugal pumps.

At the rack level, the 84147-01 connects to Bently Nevada 84147 monitor modules, which perform signal processing, alarm threshold evaluation, and trip relay actuation. These monitors are powered by dedicated rack power supply units within the 84147 chassis, ensuring stable, isolated DC power delivery to all signal processing cards. The power layer is critical: voltage fluctuations or ground loops introduced at the power supply level can propagate through the I/O terminal and corrupt transducer readings, making the selection of a compatible, regulated power supply module essential to system integrity.

For communication and data aggregation, the 84147 rack typically interfaces with a Bently Nevada 3500/92 communication gateway or equivalent Modbus/TCP or OPC-DA interface module, enabling real-time vibration data to be transmitted to a distributed control system (DCS) or SCADA platform. In many installations, this data feeds into a GE System 1 condition monitoring software environment, where trend analysis, alarm management, and predictive maintenance workflows are executed. The 84147-01 terminal’s role in this chain is to ensure that the raw transducer signal arrives at the monitor card with full fidelity — free from noise, impedance mismatch, or wiring errors that would otherwise compromise the accuracy of the downstream analytics.

At the human-machine interface layer, operators interact with vibration data through panel-mounted HMI displays or workstation-based monitoring consoles connected to the DCS. The reliability of the data presented at this layer is directly dependent on the quality of signal termination at the I/O record level — a function the 84147-01 is specifically designed to fulfill. In redundant architecture designs, dual-channel monitor configurations may employ paired 84147-01 terminals to support 1oo2 or 2oo3 voting logic, ensuring that a single wiring fault or terminal failure does not result in a spurious trip or missed alarm condition.

For cabinet-level integration, the 84147-01 is typically installed alongside terminal blocks, cable marshalling assemblies, and surge protection devices within a dedicated machinery protection panel. Proper grounding of the terminal record, combined with shielded cable routing practices, is essential to maintaining signal integrity in electrically noisy industrial environments such as motor control centers, compressor stations, and turbine halls.

Industrial Application Notes

The Bently Nevada 84147-01 XDCR I/O Record Terminal finds application across a wide range of heavy industrial sectors where rotating machinery protection is a safety and operational priority.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 84147-01 is deployed within turbine protection panels to monitor shaft vibration, axial displacement, and differential expansion. These parameters are critical to preventing catastrophic bearing failures and rotor damage, and the accuracy of the I/O termination layer directly influences the reliability of the protection system’s trip response.

In petrochemical and refinery applications, the terminal supports continuous monitoring of centrifugal compressors, pumps, and fans operating in hazardous area classifications. The 84147-01’s compatibility with the broader Bently Nevada ecosystem ensures that machinery protection systems can be maintained and expanded without requiring wholesale replacement of existing rack infrastructure — a significant advantage in facilities where minimizing process downtime is paramount.

In water and wastewater treatment plants, the terminal is used in pump station monitoring systems where early detection of bearing wear or rotor imbalance can prevent unplanned outages and costly emergency repairs. The warranty terms confirmed during quotation provided with each 84147-01 unit supports the procurement and maintenance planning requirements of municipal utility operators, who typically require documented warranty coverage as part of their asset management programs.

In mining and mineral processing operations, the 84147-01 supports vibration monitoring of large grinding mills, conveyors, and hoisting equipment. The harsh electrical environment of these facilities — characterized by high-power motor drives, variable frequency drives (VFDs), and extensive cable runs — places particular demands on the signal integrity of the I/O termination layer, making the use of a purpose-designed terminal record essential.

In metallurgical and steel production facilities, the terminal is integrated into continuous caster and rolling mill protection systems, where real-time vibration data informs both process control decisions and predictive maintenance scheduling. The ability to source a replacement 84147-01 with a warranty terms confirmed during quotation and confirmed system integration support ensures that maintenance teams can restore system functionality quickly following a component failure, minimizing production losses.

Product Compatibility FAQ

Q1: Is the Bently Nevada 84147-01 compatible with existing 84147 Series rack installations, and can it be installed without modifying the rack backplane?
A: Yes. The 84147-01 XDCR I/O Record Terminal is designed for direct installation within the Bently Nevada 84147 Series rack architecture. It interfaces with the rack’s backplane connector and terminal wiring scheme without requiring modification to the existing chassis or monitor modules. Engineers should verify the rack slot assignment and cable labeling against the original system documentation prior to installation to ensure correct channel mapping and avoid signal cross-connection errors.

Q2: How does the 84147-01 support redundant monitoring architectures, and what considerations apply when deploying it in a dual-channel or voting logic configuration?
A: In redundant configurations, the 84147-01 can be deployed in paired arrangements to support dual-channel monitoring of a single measurement point. Each terminal record handles one transducer input channel, and the associated monitor modules perform independent signal processing. For 1oo2 or 2oo3 voting architectures, system engineers must ensure that each 84147-01 terminal is wired to a separate, electrically isolated transducer to prevent a single wiring fault from affecting both channels simultaneously. Cable routing, grounding, and shield termination practices should follow Bently Nevada installation guidelines to maintain channel independence.

Q3: What does the warranty terms confirmed during quotation cover for the 84147-01, and how does ZYPLC support long-term maintenance and spare parts availability?
A: The warranty terms confirmed during quotation provided with each 84147-01 unit covers functional defects arising under normal operating conditions, including signal termination failures, connector integrity issues, and manufacturing defects identified during installation or initial commissioning. ZYPLC maintains inventory of 84147-01 terminals and related 84147 Series components to support both immediate replacement requirements and long-term spare parts programs. For facilities operating aging Bently Nevada systems, ZYPLC’s system integration support service assists engineers in identifying compatible replacement components and verifying system-level compatibility prior to procurement, reducing the risk of specification errors and installation delays.
