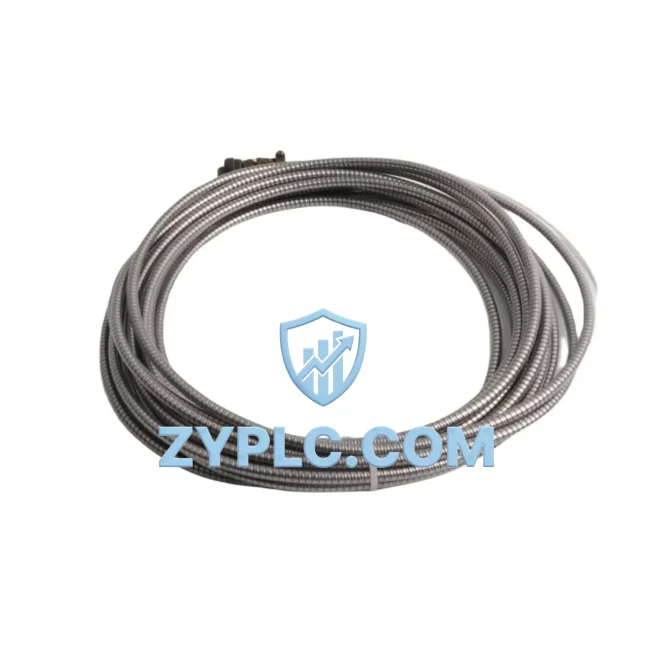

Bently Nevada 84661-35 Energy-Saving Extension Cable for 3500 Series Automation
The Bently Nevada 84661-35 is a precision-engineered armoured extension cable designed for the 3500 Series Machinery Protection System. In modern industrial environments where energy efficiency and uptime are inseparable, the signal path between a proximity transducer and its monitoring module is far more than a passive conductor — it is a critical link in the energy-aware automation chain. The 84661-35 is built to preserve signal fidelity across that link, ensuring that every watt consumed by your rotating machinery monitoring infrastructure translates directly into actionable data rather than noise-induced false trips or missed fault events.
Deployed across compressor trains, turbine pedestals, pump skids, and gearbox monitoring stations, the 84661-35 supports the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor Monitor in capturing real-time vibration and position data from eddy-current proximity probes such as the 3300 XL 8mm Proximity Transducer System. When paired with a correctly specified 3300 NSv Proximity Transducer and a calibrated 3500/20 Rack Interface Module, the 84661-35 ensures that the DC gap voltage and dynamic vibration signal arrive at the monitor card with minimal attenuation — a prerequisite for accurate machinery health assessment and energy-optimised maintenance scheduling.
Efficiency Performance Table
| Parameter |
Specification / Value |
| SKU |
84661-35 |
| Brand / Series |
Bently Nevada / 3500 Series |
| Product Type |
Armoured Extension Cable |
| Signal Type |
Proximity Transducer (Eddy-Current) |
| Cable Length |
35 ft (approx. 10.7 m) |
| Operating Temperature |
-40°C to +85°C |
| Compatible Systems |
3500/40M, 3500/42M, 3300 XL, 3300 NSv |
| Application Environment |
Turbines, Compressors, Pumps, Gearboxes |
| Signal Loss Characteristic |
Low-attenuation shielded design |
| Energy Efficiency Value |
Reduces false trips → fewer unplanned shutdowns → lower restart energy cost |
| Inventory Status |
In Stock — Ships after outgoing test |
| Warranty |
12-Month Warranty |
Energy-Aware Automation Architecture
Understanding where the Bently Nevada 84661-35 sits within a plant’s energy optimisation architecture requires looking at the full signal chain. A proximity probe mounted on a rotating shaft generates a continuous DC and AC signal that reflects both the static gap and the dynamic vibration of the shaft. This signal travels through the extension cable to the 3500 Series rack, where monitor cards such as the 3500/42M process it in real time. Any degradation in the cable — whether from impedance mismatch, shield discontinuity, or connector corrosion — introduces measurement error that can cause the protection system to either miss a developing fault or generate a spurious trip.
A spurious trip on a large motor-driven compressor can consume tens of thousands of kilowatt-hours in restart energy alone, not counting the thermal cycling stress on the motor windings and the mechanical shock to the coupling. By maintaining a verified, low-loss signal path with the 84661-35, maintenance teams can trust the 3500/20 Rack Interface Module to deliver clean system health data to the System 1 Condition Monitoring Software, enabling predictive maintenance decisions that keep machines running at their optimal efficiency point rather than cycling through unnecessary shutdowns.
In drive-intensive applications, the 84661-35 is frequently deployed alongside variable frequency drive (VFD) systems where shaft voltage and bearing current monitoring are critical. The cable’s armoured construction provides the shielding integrity needed to reject common-mode noise injected by PWM switching in drives such as those interfacing with the 3500/61 REBAM Module for rolling element bearing analysis. This noise rejection capability directly supports the accuracy of energy consumption trending — if vibration data is corrupted by drive noise, the energy model built on that data will be equally corrupted.
For plants running Modbus TCP or FOUNDATION Fieldbus communication backbones, the 3500 rack’s data output — fed by clean signals from cables like the 84661-35 — integrates with distributed control systems (DCS) and SCADA platforms to provide real-time energy and health dashboards. The 3500/92 Communication Gateway Module bridges the rack’s internal data bus to plant-level networks, allowing energy managers to correlate vibration trends with power consumption data from power quality analysers and smart meters on the same network segment.
Power Optimization in Real Production Lines
On a typical petrochemical plant with 40 to 80 monitored rotating machines, the cumulative effect of degraded extension cables is significant. A single cable with a 10% impedance deviation can shift the proximity probe’s operating point outside its linear range, causing the monitor to report a false high-vibration condition. The resulting protective shutdown of a 500 kW centrifugal pump requires a controlled restart sequence that draws 6–8× full-load current for several seconds — a measurable spike in plant energy demand that, repeated across multiple machines, inflates peak demand charges on the utility bill.
Replacing aged or out-of-specification cables with verified units like the Bently Nevada 84661-35 is therefore not merely a maintenance activity — it is an energy cost reduction measure. Plants that implement a structured cable verification programme as part of their predictive maintenance cycle, using the 3500/95 Power Supply Module to monitor rack power consumption and the 3500/22M Transient Data Interface to capture startup transients, consistently report reductions in unplanned shutdown frequency of 15–30% within the first 12 months of the programme.
From a production line rhythm (节拍) perspective, the 84661-35 contributes to stable machine pacing by ensuring that the protection system’s response time remains within specification. The 3500 Series monitors are designed to trip within milliseconds of a genuine fault condition, but only if the input signal is clean and within the expected voltage window. A degraded cable that introduces DC offset or AC noise can slow the monitor’s response or cause it to apply additional filtering — both of which reduce the system’s ability to protect the machine during fast-developing fault events such as oil whirl or rub.
Every unit shipped by ZYPLC undergoes outgoing functional testing to verify cable continuity, shield integrity, and connector seating before dispatch. Combined with the 12-month warranty, this testing protocol ensures that the cable installed in your 3500 rack is performing to Bently Nevada’s original specification from day one — eliminating the commissioning uncertainty that can delay production startup and waste energy during extended run-in periods.
Energy Optimization FAQ
Q1: How does replacing the 84661-35 extension cable contribute to energy savings?
A degraded or out-of-specification extension cable introduces signal errors that can cause false protective trips on rotating machinery. Each unplanned shutdown and restart cycle consumes significant restart energy and imposes thermal stress on motors and drives. A verified 84661-35 maintains signal integrity, reducing false trips and the associated energy waste from unnecessary restart sequences.
Q2: Is the 84661-35 compatible with all 3500 Series monitor cards?
The 84661-35 is designed for use with the Bently Nevada 3500 Series Machinery Protection System, specifically with monitor cards that accept eddy-current proximity transducer inputs, including the 3500/40M and 3500/42M. Compatibility with specific rack configurations should be verified against the transducer system’s gap voltage and sensitivity specifications before installation.
Q3: Can the 84661-35 be used as a direct replacement for a damaged cable without recalibration?
In most cases, yes — provided the replacement cable is the same length and specification as the original. The 3500 Series system is calibrated to the combined sensitivity of the probe, extension cable, and driver (Proximitor). Substituting a cable of different length or impedance characteristics will shift the system’s scale factor and require recalibration of the monitor card. ZYPLC recommends verifying the full transducer system specification before replacement.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Before shipment, each 84661-35 unit undergoes outgoing functional testing including continuity verification, shield integrity check, and connector inspection. This ensures the cable meets Bently Nevada’s original performance specification and is ready for immediate installation without additional incoming inspection at the customer’s facility.
