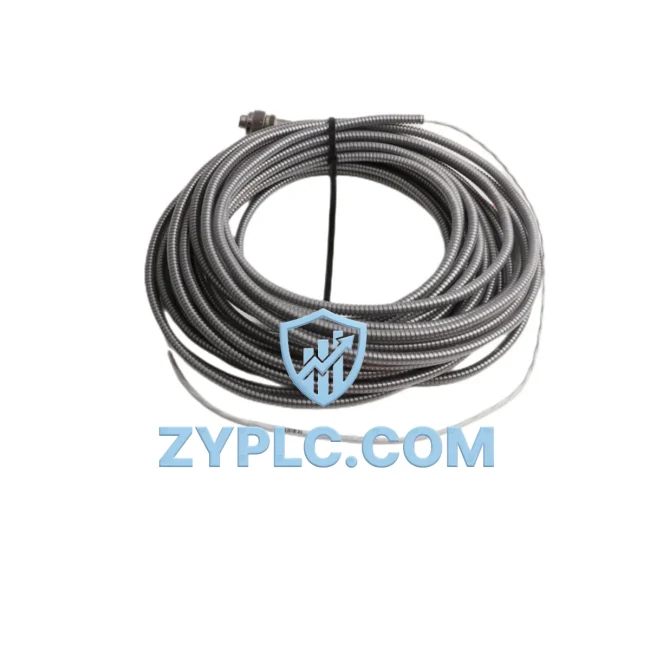

Bently Nevada 84661-50 System-Ready Interconnect Cable for 3500 Series Architecture

Bently Nevada 84661-50 System-Ready Interconnect Cable for 3500 Series Architecture

The Bently Nevada 84661-50 Interconnect Cable is a precision-engineered signal transmission component designed to serve as a critical link within the Bently Nevada 3500 Series Machinery Protection System architecture. In modern industrial automation and condition monitoring environments, the integrity of signal pathways between transducers, monitors, and processing modules determines the reliability of the entire protection system. The 84661-50 fulfills this role by providing a stable, low-noise interconnect solution that supports consistent data flow across the full control hierarchy — from field-mounted sensors through to the rack-level monitoring modules and ultimately to the supervisory control and data acquisition (SCADA) layer.

Unlike generic cabling solutions, the 84661-50 is engineered specifically for the electrical and mechanical demands of the 3500 Series platform. Its connector geometry, shielding characteristics, and conductor specifications are matched to the input requirements of 3500 Series monitor modules, ensuring that vibration, position, speed, and temperature signals are transmitted without degradation. This level of contextual integration reduces commissioning time, eliminates field-wiring ambiguity, and supports long-term system maintainability — all of which are essential in high-availability plant environments such as power generation, oil and gas, petrochemical processing, and rotating machinery protection.

Architecture Specification Table

Coordinated Control System Design

The 84661-50 does not operate in isolation — it is a functional element within a layered, coordinated control system architecture. In a typical 3500 Series installation, the signal chain begins at the field sensor layer, where proximity probes, accelerometers, or velocity transducers such as the Bently Nevada 330180-51-05 proximity probe or the 330130-040-00-00 extension cable capture raw machinery data. These signals are routed through the 84661-50 interconnect cable to the appropriate monitor module housed within the 3500/05 Rack Interface Module or the 3500/15 Power Supply Module chassis.

Within the rack, the 84661-50 interfaces with monitor modules including the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/72M Temperature Monitor, depending on the measurement channel configuration. The rack backplane, managed by the 3500/01 Rack Interface Module, coordinates communication between individual monitor cards and the system’s Ethernet or RS-232/RS-485 communication gateway — enabling real-time data transmission to the plant DCS or SCADA platform.

At the power layer, the 3500/15 Power Supply Module provides regulated DC power to all rack-mounted modules, and the 84661-50’s low-impedance signal path ensures that power supply noise does not corrupt measurement accuracy. For redundant system configurations, a secondary 3500/15 power supply can be installed alongside a 3500/20 Rack Interface Module to support hot-standby operation, with the 84661-50 maintaining signal continuity across both primary and redundant monitor channels.

At the human-machine interface layer, operators interact with the system through Bently Nevada System 1 software or third-party HMI platforms, receiving alarm, trend, and diagnostic data that originates from the transducer signals carried by the 84661-50. The cable’s shielding and connector integrity directly influence the quality of the data presented at the HMI, making it a foundational component for accurate machinery health assessment.

For plants requiring integration with broader automation architectures, the 3500 Series communicates via Modbus TCP, OPC-DA, or proprietary Bently Nevada protocols, and the 84661-50 supports this ecosystem by ensuring that the analog front-end of the signal chain meets the input specifications required for reliable digital conversion and protocol encapsulation.

Application in Layered Automation Systems

The 84661-50 Interconnect Cable finds application across a wide range of process and discrete manufacturing environments where rotating machinery protection is critical. In power generation facilities — including gas turbines, steam turbines, and hydro generators — the cable supports continuous vibration and axial position monitoring, enabling early detection of rotor imbalance, bearing wear, and shaft misalignment before catastrophic failure occurs.

In oil and gas upstream and midstream operations, the 84661-50 is deployed in compressor trains, pump skids, and gas turbine-driven generators, where the 3500 Series system provides API 670-compliant machinery protection. The cable’s robust shielding is particularly valuable in these environments, where variable-frequency drives, high-voltage switchgear, and electromagnetic interference from adjacent equipment can introduce noise into sensitive measurement circuits.

Petrochemical and refinery applications rely on the 84661-50 to maintain signal integrity in high-temperature, high-humidity control rooms and field junction boxes. Water treatment and desalination plants use the 3500 Series with the 84661-50 to monitor large centrifugal pumps and blowers, where continuous operation is required and unplanned downtime carries significant operational and regulatory consequences.

In mining and metallurgical processing, the cable supports vibration monitoring of ball mills, crushers, and conveyor drive systems, where the mechanical environment is particularly demanding. Packaging and material handling lines in food and beverage or consumer goods manufacturing also benefit from the 84661-50’s reliable signal transmission, supporting predictive maintenance programs that reduce unplanned stoppages and extend equipment service intervals.

Architecture Engineering FAQ

Q1: Is the 84661-50 compatible with all 3500 Series monitor modules, and does it require any adapter or termination hardware?
The 84661-50 is designed for direct compatibility with the standard input connector specifications of the 3500 Series monitor family, including the 3500/22M, 3500/42M, and 3500/72M modules. No adapter hardware is required for standard rack configurations. For installations involving the 3500/20 Rack Interface Module in a redundant architecture, the cable can be used on both primary and secondary monitor channels without modification. Always verify the specific connector pinout against the module’s installation manual prior to final termination.

Q2: How does the 84661-50 support long-term system maintainability and what does the 12-Month Warranty cover?
The 84661-50 is supplied with a 12-Month Warranty covering functional performance and workmanship defects. In the context of long-term system maintainability, using OEM-specified interconnect cables such as the 84661-50 ensures that replacement components match the original electrical and mechanical specifications, preventing signal degradation that can occur when non-OEM cables are substituted. The warranty period supports plant maintenance planning cycles and provides assurance for both initial commissioning and post-repair validation.

Q3: Can the 84661-50 be installed in hazardous area control cabinets, and what are the key installation considerations?
The 84661-50 is suitable for installation in industrial control cabinets and field junction boxes operating within its rated temperature range of -40°C to +85°C. For hazardous area installations, the cable should be routed in accordance with the plant’s area classification requirements and applicable electrical codes (IEC 60079, NEC Article 500, or equivalent). Shielded cable runs should be grounded at a single point to prevent ground loops, and the cable should be routed away from high-voltage power conductors to minimize electromagnetic interference. Consult the Bently Nevada 3500 Series installation documentation for rack-level grounding and cable routing guidelines specific to your system configuration.
