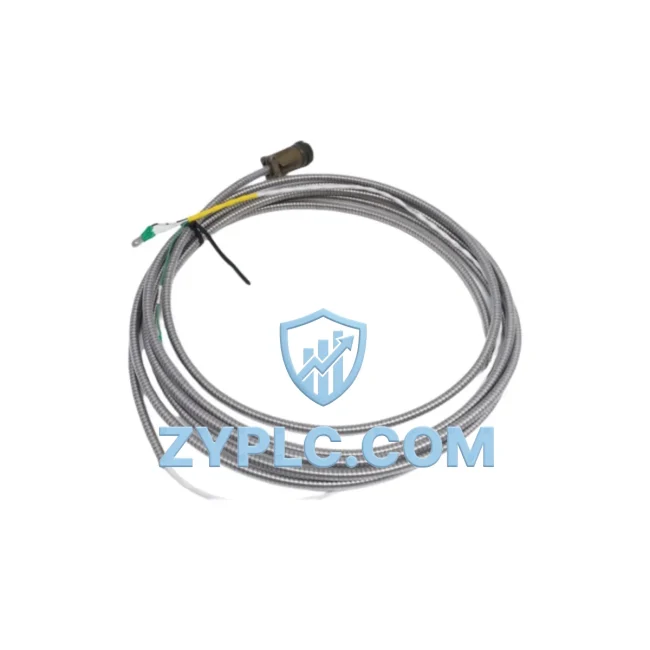

Bently Nevada 84661-75 System-Ready Velomitor Cable for 3500 Architecture

Bently Nevada 84661-75 System-Ready Velomitor Cable for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 84661-75 Velomitor Interconnect Cable is a precision-engineered signal transmission component designed to operate as an integral element within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone accessory, the 84661-75 occupies a critical position in the signal chain that connects field-mounted Velomitor piezo-velocity sensors to the 3500 rack-based monitoring system — enabling real-time vibration data acquisition, continuous machinery health assessment, and seamless integration across the full automation hierarchy.

In modern industrial control environments, system consistency depends not only on the intelligence of the controller or the sensitivity of the sensor, but on the integrity of every signal path between them. The 84661-75 cable ensures that velocity signals generated by Velomitor transducers are transmitted with minimal attenuation, noise immunity, and mechanical reliability — preserving the fidelity of data that drives protection decisions at the 3500 rack level. This makes the cable a foundational element in any architecture where rotating machinery monitoring is required alongside process control, safety instrumented systems, or distributed control platforms.

Architecture Specification Table

Coordinated Control System Design

The 84661-75 cable achieves its full value when understood within the context of a coordinated, multi-layer control system. At the field level, Bently Nevada Velomitor XA velocity transducers — such as the 330525 or 330500 series — are mounted directly on bearing housings, gearboxes, or motor end-bells to capture velocity signatures across the machinery train. The 84661-75 cable routes these analog signals from the transducer junction box or direct mount point back to the 3500 rack, where dedicated monitor modules process the incoming data.

Within the 3500 rack, the signal is received by velocity monitor cards such as the 3500/42M four-channel velocity monitor or the 3500/44M aeroderivative turbine monitor, which apply alarm setpoints, danger thresholds, and relay logic based on the incoming velocity amplitude. The 3500/20 rack interface module and 3500/22M transient data interface provide the communication backbone that connects monitor outputs to the plant DCS or safety system via Modbus, Ethernet/IP, or FOUNDATION Fieldbus — ensuring that vibration alarm states are visible at the operator workstation level without delay.

Power to the 3500 rack is supplied through the 3500/15 power supply module, with optional redundant power configurations using dual 3500/15 units to eliminate single points of failure in critical machinery protection applications. The 3500/01 rack backplane provides the internal communication bus that links all installed monitor modules, allowing the system to function as a unified protection platform rather than a collection of independent instruments.

At the human-machine interface layer, operator stations running System 1 Evolution software receive processed vibration data from the 3500 rack, enabling trend analysis, alarm management, and predictive maintenance scheduling. For installations where the 3500 system is integrated into a broader DCS environment — such as a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM platform — the 3500/22M or dedicated gateway modules handle protocol translation, ensuring that machinery protection data is available as process variables within the main control narrative.

The 84661-75 cable’s 75-foot length is specifically suited to installations where the sensor mounting point is remote from the local junction box or instrument enclosure, such as on large compressor trains, steam turbine pedestals, or cooling tower fan drives. Its shielded construction resists interference from variable frequency drives, high-voltage switchgear, and other EMI sources commonly present in industrial machinery environments — maintaining signal integrity across the full cable run without requiring additional signal conditioning.

Application in Layered Automation Systems

In power generation facilities, the 84661-75 cable is deployed on gas turbine and steam turbine trains where continuous velocity monitoring is mandated by API 670 machinery protection standards. The cable connects Velomitor sensors on turbine bearing housings to the 3500 rack mounted in the local control panel, with monitor outputs feeding the plant DCS and the turbine control system simultaneously — enabling coordinated trip logic that protects both the machinery and the connected process.

In petrochemical and refinery applications, the 84661-75 supports condition monitoring on centrifugal compressors, reciprocating compressors, and process pumps operating in hazardous area classifications. The cable’s robust construction and field-rated temperature range make it suitable for installation in outdoor compressor shelters and process unit environments where ambient conditions are demanding and cable routing distances are significant.

In water and wastewater treatment facilities, the 84661-75 is used on large pump motors and blower drives where early detection of bearing deterioration or imbalance can prevent unplanned outages that disrupt treatment capacity. The integration of the 3500 system with SCADA platforms via Modbus TCP allows vibration alarm states to be displayed alongside process flow and level data at the central control room, giving operators a unified view of both process and machinery health.

In mining and minerals processing, the cable supports monitoring on mill drives, conveyor head pulleys, and crusher bearings — applications where machinery failures carry significant production and safety consequences. The 3500 system’s relay outputs, fed by signals transmitted through the 84661-75, can be wired directly into the site’s safety relay logic to initiate controlled shutdowns when vibration levels exceed danger thresholds.

In packaging and discrete manufacturing lines, the 84661-75 enables condition monitoring on high-speed rotating equipment such as centrifuges, turboblowers, and precision spindle drives, where velocity-based monitoring provides earlier fault detection than displacement-based methods for certain fault modes. Integration with the plant PLC or MES system through the 3500 rack’s communication outputs allows maintenance work orders to be generated automatically when alarm conditions are detected.

Architecture Engineering FAQ

Q1: Is the 84661-75 cable compatible with all Bently Nevada 3500 Series monitor modules, and can it be used with both new and legacy 3500 rack configurations?
The 84661-75 Velomitor Interconnect Cable is designed for use with the full range of Bently Nevada 3500 Series velocity monitor modules, including the 3500/42M, 3500/44M, and 3500/45. It is compatible with both current-production 3500 racks and legacy installations, provided the monitor module accepts standard Velomitor ICP/IEPE-type sensor inputs. For installations using older 3500 racks with non-standard connector configurations, verify the termination type at the monitor module input before installation. The 12-Month Warranty covers manufacturing defects and signal integrity performance under normal operating conditions.

Q2: How does the 84661-75 cable support system redundancy and long-term maintenance planning in critical machinery protection architectures?
In redundant machinery protection architectures, it is common practice to install dual sensor and cable paths on critical machinery trains, with each cable routed through separate conduit paths to eliminate common-cause failure modes. The 84661-75’s 75-foot length accommodates most turbine and compressor train layouts without requiring field splices, which are a common source of signal degradation and maintenance issues. Maintaining a spare 84661-75 cable in the site instrument store is recommended for critical applications, as cable replacement is a straightforward maintenance task that can be completed during a planned outage window without requiring rack reconfiguration or monitor module recalibration.

Q3: What installation and commissioning considerations apply when integrating the 84661-75 into an existing 3500 system connected to a plant DCS or safety instrumented system?
When installing the 84661-75 in an existing 3500 system, ensure that the cable shield is grounded at one end only — typically at the monitor module end — to prevent ground loop currents that can introduce noise into the velocity signal. During commissioning, verify the sensor bias voltage at the monitor module input to confirm that the Velomitor transducer is correctly powered and the cable continuity is intact. If the 3500 rack is connected to a plant DCS or SIS via the 3500/22M or a Modbus gateway, confirm that the monitor module’s alarm and danger relay outputs are correctly mapped to the DCS input cards and that the communication link is active before completing the loop check. The 12-Month Warranty period begins from the date of shipment and covers the cable assembly under normal installation and operating conditions.
