Bently Nevada 89477-17 System-Ready Interconnect Cable for 3500 Architecture

Bently Nevada 89477-17 System-Ready Interconnect Cable for 3500 Series Control Architecture

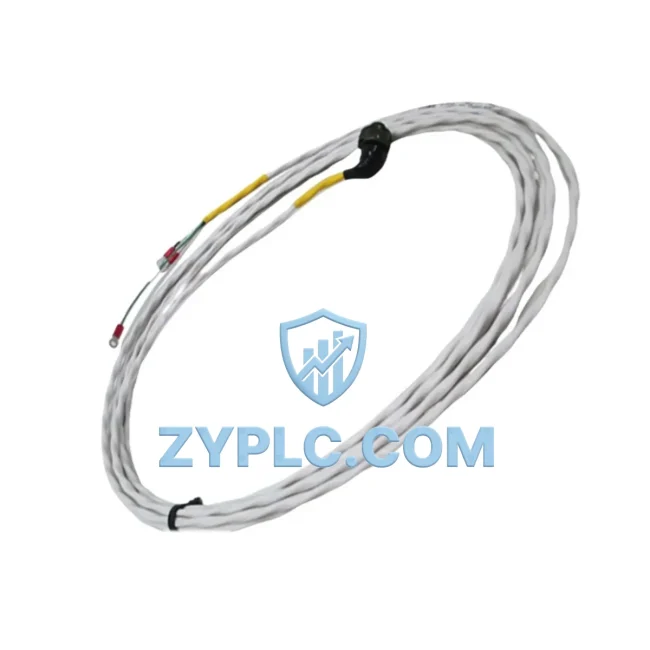

The Bently Nevada 89477-17 Interconnect Cable is a precision-engineered signal transmission component designed to operate within the full-stack architecture of the Bently Nevada 3500 Series Machinery Protection System. Rather than functioning as a standalone accessory, the 89477-17 serves as a critical signal pathway that binds the transducer field layer to the monitoring rack infrastructure — ensuring that vibration, position, and process data flows with integrity from sensor to system processor without degradation, noise interference, or signal loss.

In modern industrial automation and condition monitoring environments, the reliability of an interconnect cable is not merely a matter of physical connectivity — it defines the quality of data that drives protection decisions. The 89477-17 is engineered to meet the exacting demands of the 3500 rack system, where signal fidelity directly influences trip accuracy, alarm thresholds, and long-term machinery health trending. Its shielded construction and precision-matched impedance characteristics make it the correct choice for integration with proximity probes, velocity transducers, and accelerometers deployed across rotating equipment assets.

Within a layered automation architecture, the 89477-17 occupies the field wiring layer — the interface between physical measurement and digital processing. This layer must be treated with the same engineering discipline as the control layer above it. A poorly specified or incompatible cable introduces ground loops, capacitive loading errors, and EMI susceptibility that can corrupt the very signals the 3500 Series rack is designed to protect. The 89477-17 eliminates these risks by providing a factory-validated, system-matched interconnect solution.

Architecture Specification Table

Coordinated Control System Design

The 89477-17 Interconnect Cable achieves its full value when understood within the context of a complete Bently Nevada 3500 Series system deployment. The 3500 rack chassis — typically populated with modules such as the 3500/22M Transient Data Interface, 3500/42M Proximitor/Seismic Monitor, 3500/45 Position Monitor, and 3500/50M Tachometer Module — depends on clean, consistent signal delivery from the field layer. The 89477-17 provides exactly this function, acting as the verified signal conduit between field-mounted transducers and the rack’s input terminals.

At the power layer, the 3500/15 Power Supply Module provides regulated DC power to the rack, while the 89477-17 ensures that field signal returns are properly referenced to system ground — preventing common-mode noise from corrupting differential measurements. In redundant system configurations, where dual 3500/20 Rack Interface Module assemblies are used to maintain continuous monitoring during module replacement, the integrity of the interconnect cable becomes even more critical: any signal interruption at the cable level would defeat the purpose of rack-level redundancy.

At the communication and integration layer, the 3500 rack interfaces with plant DCS and SCADA systems via Modbus TCP or 3500/92 Communication Gateway modules. The data quality transmitted upstream is only as good as the analog signal quality at the input — which is directly governed by the 89477-17’s shielding performance and connector integrity. Engineers integrating the 3500 system with System 1 Evolution condition monitoring software will recognize that accurate waveform capture and spectral analysis depend on a noise-free signal chain from transducer to rack to software.

Junction boxes such as the Bently Nevada 3500 Field Wiring Termination Module serve as the intermediate connection point between the 89477-17 cable runs and the rack I/O modules. Proper cable routing, shield termination, and connector seating at these junction points are essential for maintaining the system’s overall measurement accuracy and protection reliability across the full operating life of the installation.

Application in Layered Automation Systems

The 89477-17 Interconnect Cable is deployed across a wide range of heavy industrial sectors where rotating machinery protection is mission-critical. In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 3500 Series system monitors shaft vibration, axial position, and differential expansion in real time. The 89477-17 provides the reliable signal path that allows the 3500/42M monitor to detect sub-millimeter changes in rotor dynamics and initiate protective shutdown before catastrophic failure occurs.

In petrochemical and refinery applications, compressors, pumps, and expanders operate continuously under high process loads. The 89477-17 is routed through cable trays and conduit systems in environments with elevated ambient temperatures, chemical exposure, and strong electromagnetic fields from variable frequency drives and motor control centers. Its robust shielding construction maintains signal integrity in these demanding conditions, supporting uninterrupted condition monitoring across the full production cycle.

In mining and mineral processing operations, where large grinding mills, conveyors, and crushers generate significant mechanical vibration and electrical noise, the 89477-17 ensures that the 3500 Series rack receives clean transducer signals despite the harsh electromagnetic environment. Similarly, in water and wastewater treatment plants, the cable supports long-term, low-maintenance monitoring of pump and blower assets with minimal signal degradation over multi-year service intervals.

For packaging and process manufacturing lines where high-speed rotating equipment must maintain precise balance and alignment, the 89477-17 supports the continuous vibration monitoring that enables predictive maintenance programs — reducing unplanned downtime and extending mean time between failures across the production asset base.

Architecture Engineering FAQ

Q1: Is the 89477-17 compatible with all modules in the Bently Nevada 3500 Series rack?
The 89477-17 is designed for use within the Bently Nevada 3500 Series architecture and is compatible with the standard transducer input modules in the 3500 rack family, including the 3500/42M, 3500/45, and 3500/50M. It is intended for use with Bently Nevada proximity probes, velocity transducers, and accelerometers that connect to the 3500 rack via field wiring termination assemblies. Engineers should verify connector type and cable length requirements against the specific module and transducer combination in their system configuration before installation.

Q2: How does the 89477-17 support long-term maintenance and system reliability in continuous operation environments?
The 89477-17 is engineered for long service life in industrial environments, with shielded construction that resists EMI degradation over time. In continuous operation facilities such as power plants and refineries, maintaining a stock of verified replacement cables — including the 89477-17 — is a standard practice for minimizing corrective maintenance time. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that replacement cables meet original specification and support system continuity without re-validation delays.

Q3: What installation and commissioning considerations apply when integrating the 89477-17 into an existing 3500 Series system?
During installation, shield termination practice is critical: the cable shield should be terminated at the rack end only (single-point grounding) to prevent ground loop currents that would introduce noise into the measurement signal. Cable routing should maintain physical separation from high-voltage power cables and VFD output conductors. Upon commissioning, signal levels should be verified at the 3500 rack input terminals using a calibrated signal source to confirm that the 89477-17 introduces no measurable signal attenuation or noise floor elevation. These steps ensure that the Contextual Integration between field transducers and the 3500 monitoring system performs to specification from initial startup.

—
