Bently Nevada 89477-30 System-Ready Interconnect Cable for 3500 Series Architecture

Bently Nevada 89477-30 System-Ready Interconnect Cable for 3500 Series Architecture

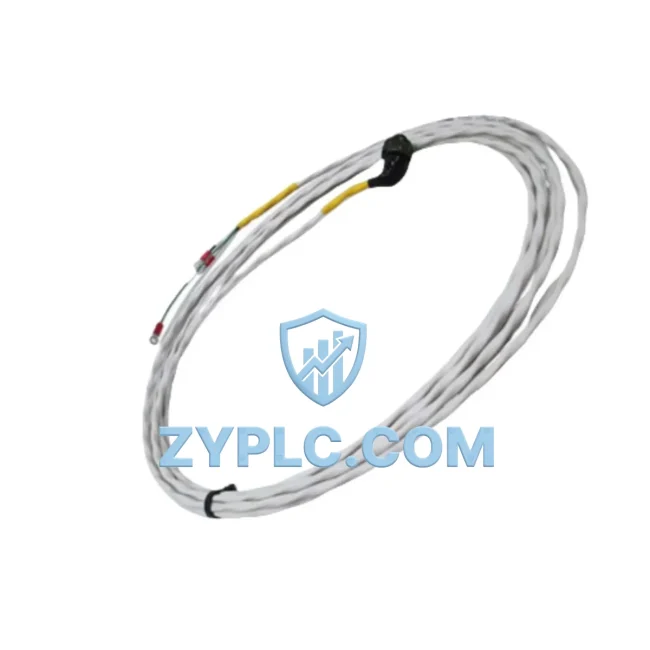

The Bently Nevada 89477-30 Interconnect Cable is a precision-engineered signal transmission component designed specifically for integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, mining, metallurgy, and rotating equipment management — the integrity of signal pathways between transducers, monitors, and control systems is foundational to system reliability. The 89477-30 fulfills this role by providing a mechanically robust, electrically stable interconnect solution that supports the full signal chain from field-mounted sensors to rack-level processing modules.

Within the 3500 Series platform, the 89477-30 Interconnect Cable serves as the physical link between proximity probes, velocity transducers, or accelerometers and the corresponding 3500/40M, 3500/42M, 3500/44M, or 3500/45 monitor modules housed in the 3500 rack. Its shielded construction minimizes electromagnetic interference in electrically noisy plant environments, ensuring that vibration, position, and speed signals arrive at the monitor inputs with full fidelity. This is critical in applications where the 3500 Series rack is deployed alongside variable frequency drives, high-voltage switchgear, or large motor control centers that generate significant EMI.

Architecture Specification Table

Coordinated Control System Design

The 89477-30 Interconnect Cable does not operate in isolation — it is a deliberate architectural element within a layered machinery protection system. Understanding its role requires examining the full signal and control hierarchy of a 3500 Series installation.

At the field sensor layer, proximity probes such as the Bently Nevada 3300 XL 8mm Proximity Transducer System or velocity transducers from the 330500 series are mounted directly on rotating machinery — turbines, compressors, pumps, and gearboxes. These sensors generate continuous analog signals representing shaft vibration, axial position, and rotational speed. The 89477-30 cable carries these signals from the field junction box or direct transducer output to the 3500 rack input terminals, maintaining signal integrity across the cable run.

Inside the 3500 rack, the signal is received by dedicated monitor modules. Depending on the measurement type, this may be the 3500/40M Proximitor/Seismic Monitor for radial vibration, the 3500/42M Proximitor/Seismic Monitor for dual-channel vibration, the 3500/44M Aeroderivative Vibration Monitor for high-frequency applications, or the 3500/45 Position Monitor for thrust and differential expansion. Each of these modules depends on a clean, low-noise signal path — precisely what the 89477-30 is engineered to deliver.

The rack itself is powered by the 3500/15 Power Supply Module, which provides regulated DC power to all installed monitor cards. Redundant power configurations using dual 3500/15 modules are common in critical machinery protection applications, and the signal cabling infrastructure — including the 89477-30 — must be compatible with this high-availability architecture. The 3500/20 Communication Gateway Module aggregates processed data from all monitor modules and transmits it upstream via Modbus, Ethernet, or other supported protocols to the plant DCS, SCADA, or historian system, completing the data flow from transducer to enterprise-level monitoring.

For system integrators managing large installations, the 3500 Rack Interface Module (RIM) and associated backplane provide the internal bus over which all modules communicate. The 89477-30 cable’s role is upstream of this internal bus — it ensures that the analog signals entering the rack are of sufficient quality for the monitor modules to perform accurate measurement and alarm processing. In redundant architectures, parallel cable runs using matched 89477-series cables ensure that no single cable failure can interrupt machinery protection coverage.

Application in Layered Automation Systems

The 89477-30 Interconnect Cable finds application across a broad range of industries where rotating machinery protection is critical to operational continuity and safety compliance.

In power generation — including gas turbines, steam turbines, and hydro generators — the 3500 Series system with 89477-30 cabling provides continuous shaft vibration and axial position monitoring, enabling operators to detect imbalance, misalignment, and bearing degradation before catastrophic failure occurs. The cable’s shielded construction is essential in generator hall environments where high magnetic fields are present.

In petrochemical and refinery applications, centrifugal compressors and process pumps are monitored using 3500 Series racks cabled with 89477-series interconnects. API 670 compliance — the industry standard for machinery protection systems — requires reliable, interference-free signal transmission, and the 89477-30 is designed to meet these requirements. Integration with the plant DCS via the 3500/20 Communication Gateway allows process engineers to correlate vibration data with process variables in real time.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives are equipped with 3500 Series protection systems. The harsh environment — dust, vibration, and wide temperature swings — demands cable assemblies with robust mechanical construction. The 89477-30 is suited for these conditions, supporting long-term reliable operation with minimal maintenance intervention.

In water and wastewater treatment, high-speed pump and blower protection systems use 3500 Series monitors to prevent unplanned downtime. The 89477-30 cable supports integration of these field instruments into centralized SCADA architectures, enabling remote monitoring and predictive maintenance scheduling.

Architecture Engineering FAQ

Q1: Is the 89477-30 compatible with all 3500 Series monitor modules, and can it be used in a redundant monitoring architecture?
The 89477-30 is designed for use within the Bently Nevada 3500 Series platform and is compatible with the signal input requirements of standard 3500 Series monitor modules including the 3500/40M, 3500/42M, 3500/44M, and 3500/45. For redundant monitoring architectures, parallel cable runs using matched 89477-series cables are recommended to ensure that no single cable failure compromises machinery protection coverage. Always verify connector compatibility with the specific monitor module revision in your rack configuration before installation.

Q2: What installation and commissioning considerations apply when integrating the 89477-30 into an existing 3500 Series rack?
During installation, cable routing should avoid proximity to high-voltage power conductors and variable frequency drive output cables to minimize induced noise. Cable shields should be grounded at one end only — typically at the rack end — to prevent ground loop currents that can introduce low-frequency noise into the signal path. After installation, signal verification using the 3500 Series rack’s built-in diagnostic functions or a Bently Nevada System 1 software interface is recommended to confirm signal levels and alarm setpoints before returning the machinery to service.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for 3500 Series cabling?
All 89477-30 Interconnect Cables supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. ZYPLC maintains dedicated inventory of 3500 Series compatible cables and accessories to support both planned maintenance programs and emergency replacement requirements. For long-term maintenance contracts or bulk procurement inquiries, contact the ZYPLC technical sales team directly to discuss availability, lead times, and volume pricing.
