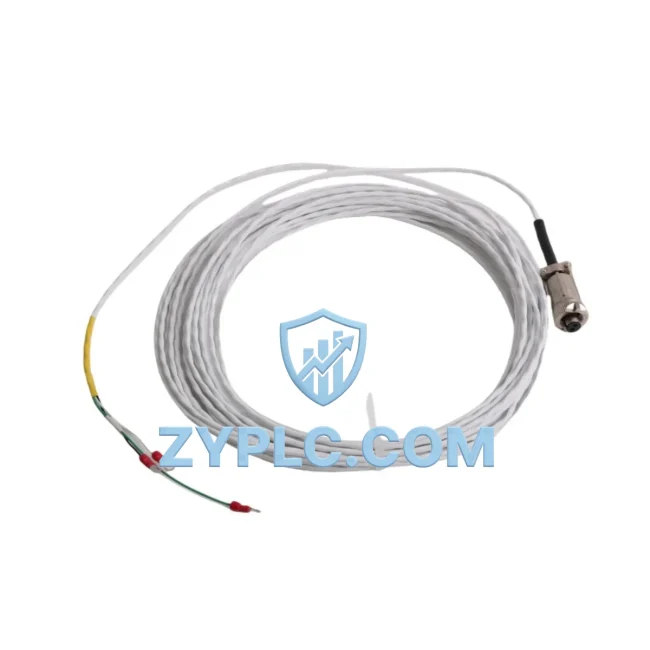

Bently Nevada 9571-20 Energy-Saving Interconnect Cable for 3500

Bently Nevada 9571-20 Energy-Saving Interconnect Cable for Optimized 3500 Series Automation

The Bently Nevada 9571-20 Interconnect Cable Module is a precision-engineered signal transmission component designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in industrial automation. In energy-intensive production environments where unplanned downtime and inefficient motor operation translate directly into wasted kilowatt-hours and elevated maintenance costs, the 9571-20 plays a foundational role in keeping the entire condition monitoring loop intact, accurate, and responsive.

Unlike generic cabling solutions, the 9571-20 is purpose-built to maintain signal integrity between transducers, I/O modules, and the 3500 rack system, ensuring that every vibration, temperature, and position measurement reaches the monitoring processor without distortion. This signal fidelity is what allows plant engineers to make real-time decisions about motor load, bearing health, and shaft alignment — all of which directly affect energy consumption and equipment utilization rates.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated energy-aware automation architecture, the Bently Nevada 9571-20 serves as the critical link between field-mounted sensors and the 3500 Series monitoring rack. Consider a typical large-scale rotating machinery installation: proximity probes and accelerometers mounted on a high-speed compressor feed raw vibration signals through the 9571-20 cable into the Bently Nevada 3500/42M Four-Channel Proximitor/Seismic Monitor, which processes those signals and triggers alarms or shutdowns when thresholds are exceeded. Without a reliable, low-noise interconnect cable, the entire monitoring chain degrades — false trips waste energy through unnecessary restarts, while missed alarms allow machinery to run in inefficient, high-vibration states that consume excess power.

The 9571-20 is also fully compatible with the Bently Nevada 3500/22M Transient Data Interface, which captures startup and shutdown transient data from motors and turbines. This transient data is invaluable for identifying resonance conditions that force motors to draw peak current far longer than necessary during acceleration — a hidden source of energy waste in many facilities. By ensuring clean signal transmission during these critical transient windows, the 9571-20 helps engineers tune variable frequency drive (VFD) ramp profiles and reduce inrush current events.

On the control side, the 9571-20 integrates seamlessly with the Bently Nevada 3500/92 Communication Gateway Module, which bridges the 3500 rack to plant-level DCS and SCADA systems via Modbus, Profibus, or OPC protocols. This connectivity allows energy management systems to receive live machinery health data and adjust drive setpoints accordingly — for example, reducing the output frequency of a connected Rockwell PowerFlex 755 variable frequency drive when vibration data indicates the motor is operating above its optimal efficiency band. The result is a closed-loop energy optimization system where condition monitoring data directly informs drive control decisions.

For facilities running Siemens SIMATIC S7-300 or S7-1500 PLCs as the primary automation controller, the 3500 system’s gateway output can be mapped to PLC data blocks, enabling ladder logic or structured text routines to automatically adjust motor speed references, cooling fan duty cycles, or pump staging sequences based on real-time machinery health indicators. This level of integration — made possible by the reliable signal path that the 9571-20 provides — transforms condition monitoring from a passive alarm system into an active energy management tool.

The Bently Nevada 3500/15 Power Supply Module provides stable, regulated power to the entire 3500 rack, and the 9571-20’s shielded construction ensures that power supply ripple does not contaminate the low-level transducer signals passing through adjacent cable runs. In installations where Bently Nevada 3300 XL 8mm Proximity Transducer Systems are used alongside the 3500 rack, the 9571-20 maintains the impedance matching required for accurate gap voltage readings — a parameter that directly reflects shaft position and bearing load, both of which influence motor energy draw.

For power quality monitoring at the panel level, many engineers pair the 3500 system with Schneider Electric PowerLogic ION7650 power meters or similar multifunction energy analyzers. When vibration anomalies detected through the 9571-20 signal path correlate with power quality events logged by the energy meter, maintenance teams can pinpoint whether a motor’s increased energy consumption is driven by mechanical imbalance, electrical supply distortion, or both — enabling targeted corrective action rather than blanket energy audits.

Power Optimization in Real Production Lines

In real production environments — petrochemical plants, paper mills, steel rolling lines, and large HVAC installations — the Bently Nevada 9571-20 contributes to energy optimization in several concrete ways.

Reducing Unplanned Downtime Energy Penalties: Every unplanned shutdown of a large motor or compressor carries an energy cost beyond the lost production time. Restart sequences draw high inrush currents, thermal cycling stresses insulation, and auxiliary systems must be re-energized. By maintaining the integrity of the 3500 Series monitoring loop, the 9571-20 ensures that early-warning vibration and temperature alarms fire correctly, allowing maintenance teams to schedule corrective action during planned windows rather than reacting to catastrophic failures. Fewer emergency restarts means lower peak demand charges and reduced energy waste.

Optimizing Motor Load and Production Pace: When the 3500 system receives clean, accurate signals through the 9571-20, operators can confidently push machinery closer to its rated capacity without fear of undetected bearing degradation or shaft misalignment. This improved equipment utilization means the same production output is achieved with fewer machine-hours, reducing total energy consumption per unit produced. In continuous process industries, even a 2–3% improvement in equipment utilization can translate to significant annual energy savings.

Supporting Predictive Maintenance Programs: The 9571-20 enables the 3500 rack to deliver the high-fidelity vibration spectra required for advanced predictive maintenance analysis. When maintenance is performed based on actual condition data rather than fixed time intervals, components are replaced at the optimal point in their service life — not too early (wasting resources) and not too late (risking failure-mode energy inefficiency). Motors running with worn bearings or misaligned couplings consume measurably more energy; catching these conditions early through reliable monitoring directly reduces the facility’s energy footprint.

Inventory Availability and Shipping Readiness: ZYPLC maintains verified stock of the Bently Nevada 9571-20, with each unit subject to outgoing quality inspection and functional verification before dispatch. Standard lead times support rapid deployment in both planned upgrade projects and emergency replacement scenarios. All units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does the Bently Nevada 9571-20 contribute to energy savings in a rotating machinery application?
The 9571-20 maintains signal integrity between field transducers and the 3500 Series monitoring rack. Accurate, low-noise vibration and position data allows operators to detect mechanical inefficiencies — such as bearing wear, imbalance, or misalignment — before they cause motors to draw excess current. Early detection and correction of these conditions directly reduces energy consumption and prevents the high inrush currents associated with unplanned restarts.

Q2: Is the 9571-20 compatible with my existing 3500 Series rack configuration?
Yes. The 9571-20 is designed for use within the Bently Nevada 3500 Series ecosystem and is compatible with standard 3500 rack configurations including the 3500/22M, 3500/42M, 3500/92 gateway, and 3500/15 power supply modules. If you are integrating with a non-standard rack layout or a legacy 3300 Series installation, please contact our technical team to confirm compatibility before ordering.

Q3: Can I use the 9571-20 as a direct replacement for a failed interconnect cable without recalibrating the monitoring system?
In most standard 3500 Series installations, the 9571-20 is a drop-in replacement that does not require system recalibration, provided the replacement cable is the correct length and connector configuration for your rack layout. However, after any cable replacement, it is best practice to verify gap voltages and signal levels at the monitor module to confirm the monitoring loop is operating within specification before returning the machinery to service.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All Bently Nevada 9571-20 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes outgoing quality inspection including visual inspection and connector integrity verification. Units that do not meet our quality standards are quarantined and not shipped. For warranty claims, contact our support team with your order reference and a description of the fault.
