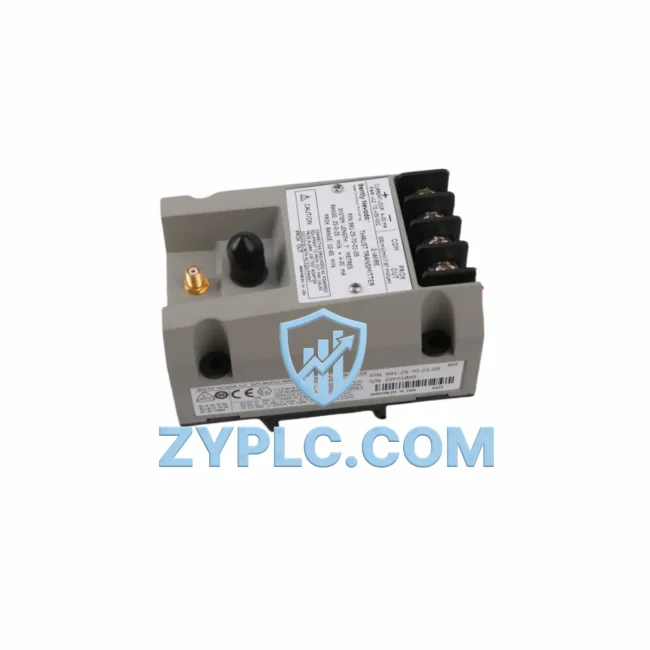

Bently Nevada 991-25-70-01-05 System-Ready Vibration Monitor for 3500 Architecture

Bently Nevada 991-25-70-01-05 System-Ready Vibration Monitor for 3500 Architecture

In a modern industrial plant, machinery protection is not a standalone function — it is the backbone of a layered automation architecture that connects rotating equipment health directly to control decisions, operator awareness, and enterprise-level asset management. The Bently Nevada 991-25-70-01-05 is a precision vibration monitoring module engineered specifically for integration within the Bently Nevada 3500 Series machinery protection system, delivering real-time vibration data that flows seamlessly from field sensors through to DCS, SCADA, and plant historian platforms. This module is not simply a measurement device — it is a critical node in a coordinated control system architecture designed for continuous, high-availability industrial operation.

The 991-25-70-01-05 is designed to work within the 3500 rack-based architecture, where each slot contributes to a unified machinery protection strategy. When installed alongside the Bently Nevada 3500/22M Transient Data Interface and the 3500/92 Communication Gateway, the module enables full bidirectional data exchange with plant-level systems. Vibration signals captured from proximity probes, accelerometers, or velocity transducers are conditioned, processed, and transmitted in real time, providing the control layer with the continuous feedback needed to make informed trip or alarm decisions without operator intervention.

Within the control system hierarchy, the 991-25-70-01-05 occupies the field measurement layer, feeding processed vibration vectors upward to the 3500/01 Rack Power Supply-supported chassis and onward through the system backplane to the monitoring and communication modules. This architecture ensures that no single point of failure can interrupt the data chain — a design principle that aligns with the redundancy requirements of critical rotating machinery in power generation, petrochemical, and offshore applications.

Architecture Specification Table

Coordinated Control System Design

The true value of the Bently Nevada 991-25-70-01-05 emerges when it is viewed as part of a complete machinery protection and control architecture rather than an isolated instrument. In a typical turbomachinery protection system, the 3500 rack begins with the 3500/01 Rack Power Supply, which provides stable, conditioned power to all installed modules. The 991-25-70-01-05 occupies a dedicated monitor slot, receiving transducer signals from shaft proximity probes mounted at the bearing housings of compressors, turbines, or pumps.

Processed vibration data is made available to the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV controller — via the 3500/92 Communication Gateway, which supports Modbus TCP/IP and OPC-DA protocols. This integration allows the DCS to incorporate machinery health data into process control logic, enabling coordinated responses such as load shedding or controlled shutdown sequences when vibration thresholds are exceeded. Simultaneously, the 3500/22M Transient Data Interface captures high-resolution waveform data during startup and shutdown transients, feeding the System 1 Evolution software platform for advanced diagnostics and trend analysis.

At the operator interface layer, Bently Nevada System 1 dashboards present vibration trends, orbit plots, and Bode diagrams to maintenance engineers, while alarm states are mirrored to the plant SCADA via the communication gateway. For facilities using GE Mark VIe or Siemens SPPA-T3000 turbine control systems, the 3500 rack integrates through hardwired relay contacts or digital communication links, ensuring that machinery protection decisions are always synchronized with the turbine control layer. The 3500/15 Power Supply and Relay Module provides the hardwired trip relay outputs that connect directly to the turbine’s emergency shutdown system, completing the protection loop from sensor to actuator.

For facilities requiring enhanced redundancy, the 991-25-70-01-05 can be deployed in dual-rack configurations where a secondary 3500 rack mirrors the primary, with automatic switchover managed by the 3500/20 Rack Interface Module. This architecture is particularly relevant in LNG plants, nuclear auxiliary systems, and offshore platforms where unplanned downtime carries significant safety and financial consequences.

Application in Layered Automation Systems

The Bently Nevada 991-25-70-01-05 finds application across a broad spectrum of process industries where rotating machinery reliability is non-negotiable. In power generation, the module monitors shaft vibration on steam turbines and gas turbines, providing the early warning data that allows maintenance teams to schedule bearing replacements during planned outages rather than responding to catastrophic failures. In petrochemical and refinery environments, it protects centrifugal compressors and boiler feed pumps that operate continuously under high-pressure, high-temperature conditions.

In water treatment and desalination plants, the module monitors large-bore pumps and blowers, integrating with SCADA systems to provide remote visibility of equipment health across geographically distributed pump stations. In mining and mineral processing, it protects ball mills, crushers, and conveyor drive motors, where vibration anomalies often precede costly structural failures. In metallurgical and steel production facilities, the 991-25-70-01-05 monitors rolling mill drives and continuous casting equipment, where vibration data directly influences product quality and equipment longevity.

Across all these applications, the module’s ability to deliver consistent, calibrated vibration data to the plant’s control and information architecture — without requiring manual data collection or periodic inspection — represents a fundamental shift from reactive to predictive maintenance strategies. Each unit shipped by ZYPLC is pre-tested and verified against factory specifications, ensuring that it integrates into the 3500 system architecture without commissioning delays.

Architecture Engineering FAQ

Q1: Is the 991-25-70-01-05 compatible with all 3500 Series rack configurations?
The 991-25-70-01-05 is designed for installation in the Bently Nevada 3500 Series rack system. It is compatible with standard 3500 rack chassis powered by the 3500/01 or 3500/05 power supply modules. Slot assignment and channel configuration are managed through the 3500 Rack Configuration Software. For specific rack configurations involving the 3500/20 Rack Interface Module or dual-rack redundancy setups, compatibility should be verified against the rack’s firmware revision and channel allocation plan.

Q2: How does this module integrate with existing DCS and SCADA platforms, and what communication protocols are supported?
The 991-25-70-01-05 transmits processed vibration data through the 3500 system backplane to the 3500/92 Communication Gateway, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This enables direct integration with DCS platforms such as Honeywell Experion, Emerson DeltaV, and ABB 800xA, as well as SCADA systems running on standard industrial Ethernet networks. Hardwired relay outputs are also available for direct connection to turbine control and emergency shutdown systems.

Q3: What does the 12-Month Warranty cover, and what support is available during commissioning?
Every Bently Nevada 991-25-70-01-05 supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing is performed to verify channel accuracy and relay output functionality. Technical support for installation, rack configuration, and system integration is available through ZYPLC’s engineering team. Replacement units are dispatched promptly to minimize system downtime in the event of a warranty claim.
