Berger Lahr TLC511F Energy-Saving Servo Drive IclA

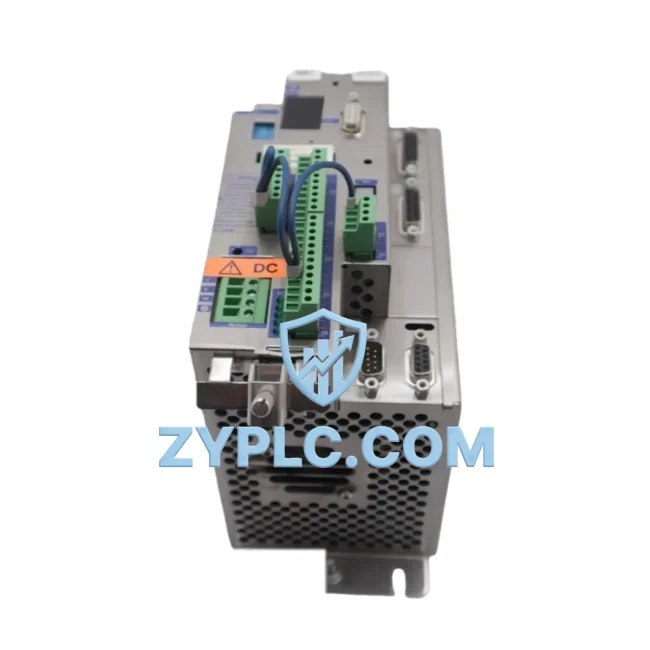

Berger Lahr TLC511F Energy-Saving Servo Drive IclA: Precision Motor Control for Optimized Production Lines

The Berger Lahr TLC511F is a high-efficiency servo drive module from the renowned IclA (Intelligent Closed Loop Actuator) Series, engineered to deliver precise, energy-aware motion control in demanding industrial automation environments. Designed for integration into modern production lines, the TLC511F combines compact intelligent drive architecture with advanced closed-loop feedback to minimize energy waste, reduce heat dissipation, and maximize equipment utilization — all while maintaining the rigorous reliability standards expected in continuous manufacturing operations.

At ZYPLC, every TLC511F unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty, ensuring your production continuity is never compromised by component uncertainty.

Efficiency Performance Table

Energy-Aware Automation Architecture

The TLC511F does not operate in isolation — its true energy-saving value emerges when it is integrated into a well-designed automation architecture. In a typical production cell, the TLC511F servo drive module interfaces directly with the Berger Lahr IclA actuator family, receiving position and velocity commands via CANopen or RS-485 serial communication, eliminating the need for separate encoder wiring and reducing panel complexity.

At the control layer, a Schneider Electric Modicon M340 PLC or equivalent IEC 61131-3 compliant controller manages the motion profile, issuing synchronized commands to the TLC511F while simultaneously coordinating upstream conveyor drives — often Schneider Altivar ATV312 variable frequency drives — to maintain line balance and prevent energy-wasting acceleration spikes. The result is a tightly coupled drive-control loop where energy is consumed only when mechanical work is actually required.

For power quality monitoring, integrating a Schneider Electric PowerLogic PM5000 series power meter at the panel feed allows engineers to capture real-time kWh consumption per production cycle. When paired with a Wago 750-8206 PFC200 controller handling I/O aggregation, the system can log energy-per-part metrics and flag anomalies — such as a gradual increase in torque demand that may indicate mechanical wear — before they escalate into unplanned downtime.

On the HMI side, a Weintek MT8071iE touchscreen panel provides operators with live drive status, cycle energy consumption, and fault diagnostics, reducing the time technicians spend diagnosing drive faults and enabling faster line restarts. Communication between the HMI and the TLC511F’s host controller is typically handled over Modbus RTU or Ethernet/IP, depending on the plant network topology.

For applications requiring multi-axis coordination — such as pick-and-place or gantry systems — the TLC511F can be deployed alongside Berger Lahr VRDM series stepper drives on lower-precision axes, creating a cost-optimized hybrid motion system where servo precision is applied only where it delivers measurable energy and throughput benefit. Distributed I/O modules such as the Phoenix Contact Axioline F series handle field-level signal aggregation, keeping wiring runs short and reducing resistive losses across the panel.

Power Optimization in Real Production Lines

In real-world deployments, the Berger Lahr TLC511F delivers measurable energy and operational improvements across several dimensions:

Reduced Idle Energy Draw: Unlike open-loop stepper systems that maintain full holding current regardless of load, the TLC511F’s closed-loop IclA architecture modulates current dynamically. During dwell periods between motion cycles, the drive reduces phase current to the minimum required to maintain position, cutting idle power consumption by a significant margin in high-cycle applications such as labeling machines and rotary indexers.

Elimination of Over-Sizing Waste: Many legacy installations use oversized drives to compensate for poor load characterization. The TLC511F’s integrated intelligence allows accurate load profiling during commissioning, enabling engineers to right-size the drive-motor combination and avoid the continuous energy penalty of running an oversized drive at partial load.

Predictive Maintenance via Torque Trending: Because the TLC511F continuously monitors actual versus commanded torque, deviations from baseline — caused by bearing wear, belt tension loss, or mechanical binding — are detectable before they cause a fault trip. Maintenance teams can schedule interventions during planned downtime windows rather than responding to emergency stoppages, directly improving Overall Equipment Effectiveness (OEE) and reducing the energy cost of restart cycles.

Line Rhythm Optimization: When the TLC511F is used in a synchronized multi-axis cell, its deterministic response to CANopen SYNC telegrams allows the motion controller to tighten inter-axis timing, reducing the mechanical settling time between operations. Shorter cycle times at the same energy budget translate directly into higher throughput per kWh — a key metric for energy-intensive industries such as automotive components, electronics assembly, and food processing.

Inventory Assurance & Outgoing Test: ZYPLC maintains ready stock of the TLC511F and conducts a full outgoing functional test — including drive enable, communication handshake, and motion response verification — before every shipment. This eliminates the risk of receiving a non-functional unit and the associated production delay, which itself carries a hidden energy cost in the form of idle line equipment consuming standby power while awaiting repair parts.

Energy Optimization FAQ

Q1: How much energy can the TLC511F save compared to an open-loop stepper drive on the same axis?
In typical intermittent-duty applications, closed-loop IclA drives like the TLC511F reduce average phase current by 30–60% during dwell periods compared to open-loop steppers running at fixed holding current. Actual savings depend on duty cycle, load inertia, and ambient temperature, but the reduction in heat generation alone often justifies the upgrade in thermally constrained enclosures.

Q2: Is the TLC511F compatible with my existing CANopen or RS-485 network?
Yes. The IclA series is designed for CANopen (CiA DS-402 motion profile) and RS-485 serial communication. The TLC511F integrates into existing Berger Lahr IclA networks without requiring a gateway, and can coexist on a CANopen segment with other CiA-compliant devices such as I/O modules and HMI panels.

Q3: What is the recommended replacement or upgrade path if the TLC511F is end-of-life in my system?
For direct replacement, ZYPLC recommends sourcing a tested original TLC511F to maintain system compatibility without re-commissioning. For system upgrades, the Berger Lahr IclA series offers higher-current variants that accept the same communication protocol, allowing a drop-in upgrade with firmware parameter adjustment rather than a full rewiring exercise.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every TLC511F shipped by ZYPLC is covered by a 12-month warranty against functional defects. Prior to shipment, each unit undergoes an outgoing test covering power-on self-test, communication interface verification, and basic motion command response. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are handled directly through ZYPLC’s technical support team.
