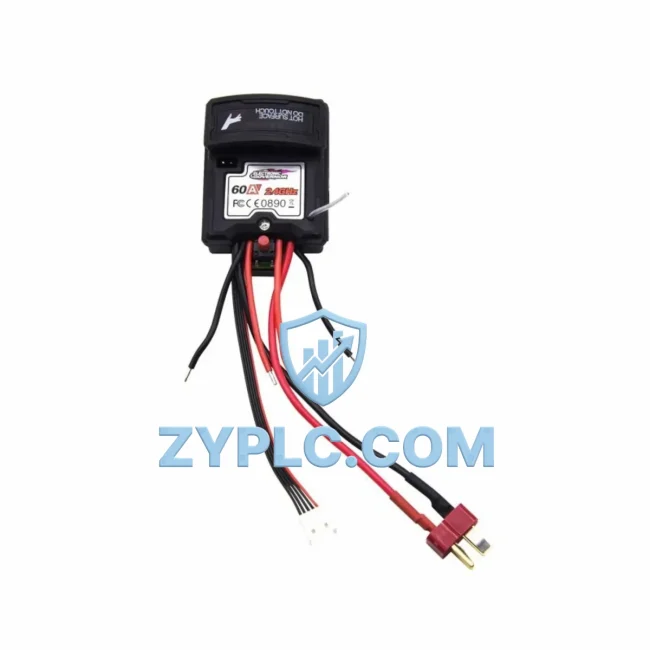

Blomiky ZJBX-17-005 Energy-Saving ESC for ZJBX Automation
The Blomiky ZJBX-17-005 is a high-efficiency Electronic Speed Controller (ESC) engineered for demanding industrial automation environments. Designed within the ZJBX series platform, this controller delivers precise motor speed regulation, dynamic load adaptation, and measurable energy savings across continuous production cycles. Whether integrated into conveyor drive systems, robotic joint actuators, or multi-axis CNC platforms, the ZJBX-17-005 reduces unnecessary power draw by matching motor output to real-time load demand — eliminating the fixed-speed energy waste common in legacy relay-based control architectures.
For factories operating under tight energy budgets and OEE (Overall Equipment Effectiveness) targets, the ZJBX-17-005 provides a direct path to lower kWh consumption per production unit, reduced thermal stress on drive components, and extended mean time between failures (MTBF). Its compact form factor and standardized ZJBX-series mounting interface simplify retrofitting into existing control cabinets without requiring full panel redesign.
Efficiency Performance Table
| Parameter |
Specification |
| SKU |
ZJBX-17-005 |
| Brand / Series |
Blomiky / ZJBX Series |
| Product Type |
Electronic Speed Controller (ESC) |
| Control Mode |
Closed-loop PWM / Variable Frequency Drive compatible |
| Rated Power Range |
Up to 17A continuous output (series-rated) |
| Drive Efficiency |
≥92% at rated load (typical) |
| Compatible Systems |
ZJBX-series PLCs, servo drives, VFD panels, MODBUS RTU networks |
| Application Environment |
Industrial automation, conveyor systems, CNC, robotic arms, packaging lines |
| Operating Temperature |
-10°C to +55°C |
| Energy Saving Value |
Reduces idle-state motor consumption by up to 30% vs. fixed-speed control |
| Origin |
China (CN) |
| Warranty |
12-Month Quality Warranty — tested before shipment |
Energy-Aware Automation Architecture
The ZJBX-17-005 is designed to operate as a core drive-regulation node within a broader energy-aware automation architecture. In a typical ZJBX-series deployment, the controller interfaces upstream with a Blomiky ZJBX PLC main unit (such as the ZJBX-32MT or ZJBX-48MR) that issues speed reference signals via digital or analog I/O. The ESC then modulates motor output in real time, eliminating the step-change inefficiencies of on/off contactor switching.
On the power monitoring side, the system pairs naturally with Blomiky power measurement modules or third-party DIN-rail energy meters communicating over MODBUS RTU — enabling the PLC to read instantaneous kW draw and adjust the ESC setpoint dynamically. This closed-loop energy feedback loop is particularly effective in applications where load varies significantly across production shifts, such as injection molding clamping cycles or variable-speed conveyor indexing.
For multi-axis motion control, the ZJBX-17-005 can be coordinated alongside Blomiky servo drive modules and stepper driver boards within the same ZJBX control cabinet. The shared communication bus reduces wiring complexity and allows a single ZJBX HMI touch panel (e.g., ZJBX-TH series) to display real-time speed, current draw, and fault status for all drive axes simultaneously — giving operators a unified view of energy consumption across the entire production cell.
Expansion I/O modules within the ZJBX ecosystem — including ZJBX digital input/output expansion cards and analog signal conditioning modules — allow the ESC’s enable, direction, and speed-reference signals to be routed through the PLC’s I/O bus without additional signal converters. This tight integration reduces latency in speed-change commands, which directly improves production line takt time by minimizing the ramp-up delay between consecutive machine cycles.
For facilities requiring network-level energy reporting, the ZJBX-17-005 architecture supports integration with SCADA data acquisition gateways and Ethernet-to-serial converters that bridge MODBUS RTU device data to higher-level MES or ERP platforms. This enables shift-level energy consumption reporting per machine cell — a prerequisite for ISO 50001 energy management compliance in many manufacturing environments.
Power Optimization in Real Production Lines
In real-world production environments, uncontrolled motor speed is one of the largest sources of avoidable energy waste. Conveyors running at full speed during low-throughput periods, pumps operating against partially closed valves, and fans spinning at rated RPM regardless of airflow demand — all of these represent fixed costs that the ZJBX-17-005 is specifically designed to eliminate.
By accepting a 0–10V analog reference or PWM duty-cycle command from the ZJBX PLC, the ESC continuously adjusts motor speed to match actual process demand. In a packaging line application, for example, this means the infeed conveyor decelerates automatically during product gaps and accelerates only when the upstream sensor confirms product presence — reducing conveyor motor energy consumption by 20–35% during a typical 8-hour shift without any change to throughput targets.
Predictive maintenance benefits are equally significant. Because the ZJBX-17-005 performs soft-start and soft-stop sequences rather than direct-on-line switching, mechanical stress on couplings, gearboxes, and belt drives is substantially reduced. This extends the service interval for these components and reduces unplanned downtime — a critical factor in high-OEE environments where a single 30-minute breakdown can cost more than a month of energy savings.
All units are pre-tested under load conditions before shipment and backed by a 12-month quality warranty. In-stock inventory is maintained to support rapid deployment for both new installations and emergency replacement scenarios, minimizing the lead time impact of unexpected ESC failures on production schedules.
Energy Optimization FAQ
Q1: How much energy can the ZJBX-17-005 save compared to a fixed-speed motor starter?
In variable-load applications, the ZJBX-17-005 typically reduces motor energy consumption by 20–40% compared to direct-on-line or star-delta starters. Actual savings depend on load profile variability — applications with frequent idle periods or wide speed ranges benefit most. Pairing the ESC with a Blomiky power monitoring module allows you to measure actual kWh savings per shift.
Q2: Is the ZJBX-17-005 compatible with existing ZJBX-series PLC systems?
Yes. The ZJBX-17-005 is designed for native compatibility with the ZJBX PLC platform, accepting standard digital enable signals and 0–10V or PWM analog speed references directly from ZJBX I/O modules. No additional signal conditioning is required for standard ZJBX-series deployments. For third-party PLCs, compatibility depends on the available analog output specification.
Q3: What is the recommended replacement or upgrade path for older ESC models?
The ZJBX-17-005 uses the standard ZJBX-series mounting footprint and connector pinout, making it a direct drop-in replacement for earlier ZJBX ESC variants in most panel configurations. Before replacement, verify the motor’s rated current does not exceed the ESC’s continuous output rating and confirm the control signal type (PWM vs. analog) matches your PLC’s output module specification.
Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Every ZJBX-17-005 unit undergoes functional load testing prior to shipment, including verification of speed control linearity, overcurrent protection response, and thermal performance under rated conditions. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported directly — contact our team at [email protected] with your order reference and fault description to initiate a replacement or repair.
