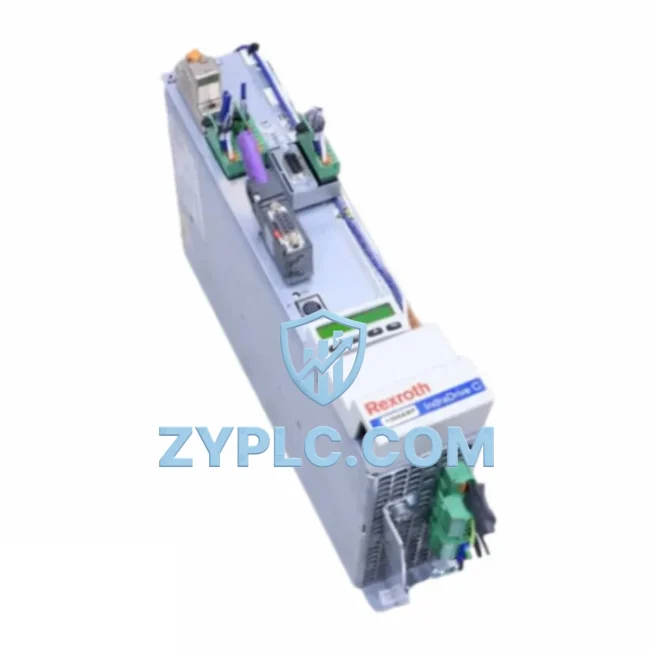

Bosch Rexroth HCS02.1E-W0012-A-03-NNNN System-Ready Servo Drive for IndraDrive Compact Architecture

Bosch Rexroth HCS02.1E-W0012-A-03-NNNN System-Ready Servo Drive for IndraDrive Compact Architecture

The Bosch Rexroth HCS02.1E-W0012-A-03-NNNN is a compact, high-performance servo drive engineered for seamless integration within the IndraDrive Compact control architecture. Designed to operate as a coordinated axis node within multi-axis motion systems, this drive does not function in isolation — it is conceived as a precision component within a layered automation hierarchy that spans the control layer, I/O layer, network layer, power supply layer, human-machine interface layer, and the execution layer where servo motors and mechanical actuators reside. Its role is to translate digital motion commands from the upper control system into precise torque, velocity, and position outputs at the motor shaft, while maintaining synchronization with adjacent drives, safety modules, and fieldbus infrastructure.

In modern industrial automation, the reliability of a servo drive is inseparable from the coherence of the system it inhabits. The HCS02.1E-W0012-A-03-NNNN is rated for a continuous output current of 12A with a DC bus voltage range compatible with the IndraDrive Compact power supply units, making it suitable for coordinated multi-axis configurations where shared DC bus topology reduces energy consumption and simplifies cabinet wiring. Its firmware is aligned with Bosch Rexroth’s IndraWorks engineering environment, enabling unified parameterization, diagnostics, and commissioning across all drive nodes in the system.

Architecture Specification Table

Coordinated Control System Design

The HCS02.1E-W0012-A-03-NNNN achieves its full potential when deployed within a coherent IndraDrive system architecture. At the control layer, a Bosch Rexroth IndraMotion MLC or IndraMotion MTX CNC controller issues real-time motion commands via SERCOS III or EtherCAT, coordinating multiple HCS02 drive nodes simultaneously. The controller’s cycle time synchronization ensures that all axes — whether handling linear feed, rotary indexing, or tension control — operate with deterministic timing and minimal jitter.

At the power supply layer, the HCS02.1E-W0012-A-03-NNNN connects to an HNF01 or HNS02 mains filter and supply unit, which rectifies AC mains into a shared DC bus. Adjacent drives such as the HCS02.1E-W0028-A-03-NNNN (28A variant) or the HCS02.1E-W0054-A-03-NNNN (54A variant) share this DC bus, enabling regenerative energy exchange between braking and accelerating axes — a critical efficiency feature in high-cycle packaging and press applications. The HMS01 or HMD01 double-axis modules may also be integrated into the same DC bus rail for compact multi-axis configurations.

At the I/O and safety layer, the HCS02.1E-W0012-A-03-NNNN interfaces with the system’s safety PLC or safety relay module via its integrated STO (Safe Torque Off) input, compliant with IEC 62061 and EN ISO 13849 PLd/SIL2. This eliminates the need for external motor contactors in many applications, reducing cabinet footprint and improving response time during emergency stop events. Digital and analog I/O expansion is handled through the IndraDrive Cs or Cc I/O extension modules, which mount directly to the drive’s front connector interface.

At the network and communication layer, the drive’s SERCOS III interface enables isochronous real-time communication with cycle times as low as 250 µs, supporting position, velocity, and torque command modes simultaneously. In installations where PROFIBUS DP is the plant-wide fieldbus, the HCS02 series supports optional PROFIBUS communication boards, allowing the drive to coexist with legacy Siemens S7 or Schneider Modicon PLCs without gateway overhead. EtherCAT CoE (CANopen over EtherCAT) is also supported for integration into Beckhoff TwinCAT or other EtherCAT master environments.

At the human-machine interface layer, the IndraWorks D engineering software running on a standard engineering PC provides full drive parameterization, oscilloscope-grade signal recording, and fault history logging. The HMI layer may also include an IndraDrive operator panel or a third-party touch panel connected via the drive’s serial diagnostic port, enabling on-machine parameter adjustment without a laptop during commissioning or maintenance cycles.

At the execution layer, the HCS02.1E-W0012-A-03-NNNN is matched with IndraDyn S (MSK) or IndraDyn A (MAD) servo motors, with motor data sets stored directly in the motor’s encoder memory chip (MKD/MHD legacy compatibility also supported). The drive reads motor nameplate data automatically on power-up, eliminating manual parameter entry and reducing commissioning errors in multi-axis systems with mixed motor types.

Application in Layered Automation Systems

In automotive body-in-white welding lines, the HCS02.1E-W0012-A-03-NNNN drives servo-controlled spot welding gun axes, coordinated with robot controllers via SERCOS III. Its deterministic communication ensures weld gun positioning repeatability within ±0.01 mm across thousands of daily cycles, directly impacting weld quality and line throughput.

In pharmaceutical packaging machinery, the drive controls blister forming, filling, and sealing axes where product integrity depends on precise cam-synchronized motion profiles. The shared DC bus architecture with adjacent HCS02 drives reduces heat dissipation in the control cabinet, extending component service life in temperature-sensitive cleanroom environments.

In power generation and energy infrastructure, the HCS02.1E-W0012-A-03-NNNN is deployed in valve actuator control systems for turbine bypass and feedwater regulation. Its STO safety function integrates directly with the plant’s safety instrumented system (SIS), enabling rapid de-energization of actuator axes during emergency shutdown sequences without mechanical brake wear.

In petrochemical and refinery process control, the drive manages compressor inlet guide vane positioning and pump speed regulation in variable-flow process loops. Its robust DC bus design tolerates the voltage fluctuations common in heavy industrial power environments, and its IP20 enclosure is suitable for installation in pressurized control rooms adjacent to hazardous areas.

In metal forming and press applications, coordinated HCS02 drives control the main ram, die cushion, and feed axes of servo presses, replacing traditional flywheel-clutch-brake mechanisms. The regenerative DC bus allows braking energy from the ram deceleration phase to be reused by the feed axis acceleration, reducing peak power demand and energy consumption per stroke by up to 30%.

In water and wastewater treatment, the drive controls aeration blower inlet vanes and sluice gate actuators, where long duty cycles and infrequent maintenance windows demand high reliability and remote diagnostic capability. The IndraWorks D remote monitoring interface allows plant engineers to review drive fault logs and trend data without on-site visits, reducing maintenance travel costs.

Architecture Engineering FAQ

Q1: Is the HCS02.1E-W0012-A-03-NNNN compatible with existing IndraDrive C (HCS03) installations, and can it share the same DC bus?
The HCS02 (IndraDrive Compact) and HCS03 (IndraDrive C) series use different DC bus connector systems and power supply units, so direct DC bus sharing between the two series is not supported without a bus coupling module. However, both series can coexist in the same control cabinet and communicate over the same SERCOS III or EtherCAT network under a common IndraMotion MLC controller. If your existing installation uses HCS03 drives with an HNF01 supply unit, the recommended approach is to deploy the HCS02.1E-W0012-A-03-NNNN on a separate DC bus segment with its own HNS02 supply, then coordinate motion via the upper controller. Our engineering team can assist with bus topology planning prior to installation.

Q2: What feedback encoder types are supported, and how does the drive handle motor data management in a multi-axis system?
The HCS02.1E-W0012-A-03-NNNN supports IndraDyn resolver feedback, EnDat 2.2 absolute encoders, and Hiperface DSL single-cable feedback systems. Motor data — including rated current, pole pairs, thermal model parameters, and encoder offset — is stored in the motor’s encoder memory (MEM chip) and read automatically by the drive on power-up via the Bosch Rexroth motor data protocol. This eliminates manual parameter entry for each axis and ensures consistency across replacement drives. In a 12-axis system, replacing a failed drive requires only physical installation and network address assignment; all motor parameters are restored automatically from the encoder memory, reducing mean time to repair (MTTR) significantly.

Q3: What does the 12-Month Warranty cover, and what is the recommended spare parts strategy for long-term system maintenance?
The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions confirmed by diagnostic data. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated DC bus range, or unauthorized firmware modifications. For long-term system maintenance, we recommend maintaining at least one spare HCS02.1E-W0012-A-03-NNNN unit per production line, particularly in high-cycle applications where drive replacement time directly impacts OEE. Complementary spare components should include the HNS02 supply unit, SERCOS III fiber optic cables, and the motor feedback cable assembly. Our inventory supply program ensures availability of critical IndraDrive Compact components with lead times under 5 business days for stocked items.
