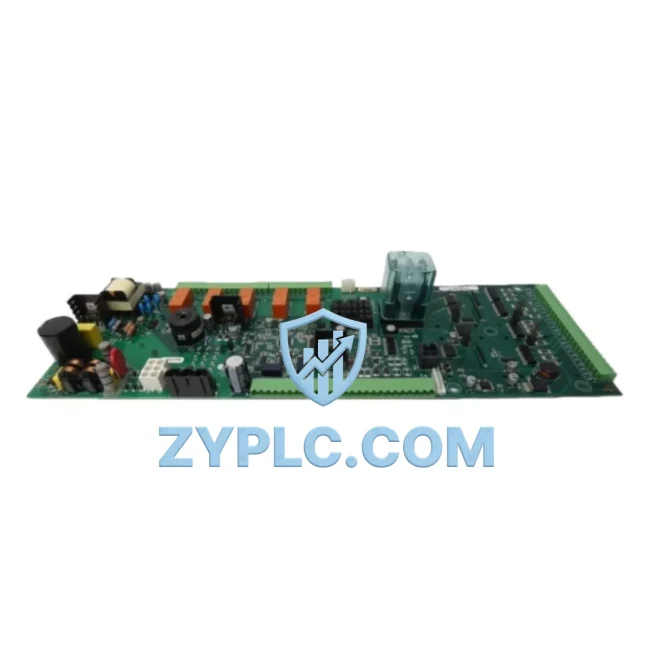

The Eaton 99-5835-01 is a high-performance I/O Board Module engineered for Cutler-Hammer variable frequency drive systems. Designed to serve as the critical interface between control logic and drive execution, this module enables factories to achieve measurable reductions in unplanned downtime, improve motor control accuracy, and sustain higher equipment utilization rates across demanding industrial environments. Whether deployed in continuous process lines, discrete manufacturing cells, or multi-axis motion systems, the 99-5835-01 delivers the signal integrity and I/O responsiveness that modern maintenance-focused automation demands.
In industrial facilities where energy costs represent a significant share of operating expenditure, the quality of I/O communication directly impacts how efficiently drives respond to load changes. A degraded or incompatible I/O board introduces latency into the control loop, causing drives to overcorrect, overshoot speed targets, or fail to ramp down during low-demand periods — all of which translate into unnecessary operating-hour consumption. The Eaton 99-5835-01 eliminates these inefficiencies by maintaining clean, stable signal pathways between the PLC command layer and the drive’s power stage.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
99-5835-01 |
| Brand |
Eaton (Cutler-Hammer) |
| Module Type |
I/O Board (Input/Output Interface Module) |
| Compatible Drive Series |
Cutler-Hammer / Eaton Variable Frequency Drives (VFD) |
| Application Environment |
Industrial Automation, Motor Control Centers, Process Lines |
| Operating Efficiency Contribution |
Reduces control loop latency; supports precise speed/torque regulation |
| Maintenance Value |
Enables accurate load-following, minimizing overcurrent and idle energy draw |
| Compatible Systems |
Eaton VFD platforms, PLC-based motor control architectures, SCADA-integrated lines |
| Origin |
United States |
| Condition |
Tested & Verified — Ready to Ship |
| Warranty |
12-Month Warranty |
System Compatibility and Application
The 99-5835-01 I/O Board sits at the intersection of command and execution in a drive-based automation system. To understand its energy impact, it helps to trace the full signal path from the control layer down to the motor shaft.
At the top of the architecture, a programmable logic controller — such as an Eaton XC200 PLC or a compatible third-party controller — issues speed reference and enable commands based on production scheduling logic or process feedback. These commands travel through the I/O board, which translates digital and analog signals into the format the drive’s control card expects. When the I/O board is functioning correctly, this translation is instantaneous and lossless. When it is degraded, the drive may misread reference values, causing it to run motors at incorrect speeds — a direct source of unplanned downtime.
The drive itself — for example, an Eaton SVX9000 or SPX9000 series VFD — uses the I/O board’s output to modulate its IGBT switching pattern, controlling the voltage and frequency delivered to the motor. Accurate I/O signaling allows the drive to implement true load-proportional speed control, which is the foundation of variable-speed operational stability. A motor running at 80% of full speed consumes roughly 51% of the energy it would use at full speed — but only if the drive receives clean, accurate reference signals from the I/O layer.
On the feedback side, the 99-5835-01 also handles analog input signals from field sensors — including current transducers, pressure transmitters, and flow sensors — that inform the drive’s closed-loop control algorithms. In pump and fan applications, this feedback loop is what enables the drive to reduce motor speed during low-demand periods, delivering the cubic law operational stability that make VFD retrofits so economically compelling. Pairing this I/O board with a Eaton Power Xpert C445 Motor Management Relay or similar power monitoring device allows the control system to log actual operating load per motor, enabling energy audits and continuous improvement programs.
For multi-drive systems, the I/O board’s digital outputs can interface with Eaton SmartWire-DT communication modules or standard fieldbus adapters supporting Modbus RTU, PROFIBUS DP, or EtherNet/IP. This connectivity allows a central HMI panel — such as an Eaton XV300 or compatible touchscreen — to display real-time drive status, operating load trends, and fault diagnostics without requiring separate wiring runs to each drive. Reducing wiring complexity also reduces the risk of signal interference that can degrade I/O performance over time.
In coordinated motion applications, the I/O board works alongside servo drive amplifiers and encoder feedback modules to synchronize axis motion with conveyor or indexing table timing. Precise synchronization reduces mechanical shock loads, which in turn reduces peak current draw during acceleration — another pathway to lower operating load and reduced wear on mechanical components.
Power supply quality also plays a role. The 99-5835-01 is designed to operate reliably within the power supply tolerances of standard Eaton drive control cards. Pairing it with a stable 24VDC control power supply — such as those in the Eaton Power Supply PSG series — ensures that I/O signal levels remain within specification even during line voltage fluctuations, preventing nuisance faults that would otherwise force unnecessary drive restarts and associated energy transients.
Maintenance and Replacement Notes
In practice, the energy impact of a properly functioning I/O board like the 99-5835-01 is most visible in three areas: motor speed accuracy, fault-related downtime, and maintenance-driven shutdowns.
Motor Speed Accuracy: In applications where conveyors, pumps, fans, or compressors run at variable speeds, the I/O board’s analog reference accuracy determines how closely the drive tracks the desired setpoint. A 1–2% speed error in a large pump motor can translate into a 3–6% energy overconsumption due to the cubic relationship between speed and power in centrifugal loads. The 99-5835-01 maintains the signal fidelity needed to keep drives on-target, ensuring that operational stability from variable-speed operation are fully realized rather than partially eroded by control inaccuracy.
Fault-Related Downtime: Drive faults caused by I/O signal errors — such as loss of reference, analog input out-of-range, or digital input noise — force production stops that consume energy without producing output. Each unplanned stop also involves a restart transient, during which the motor draws significantly higher current than during steady-state operation. Eliminating I/O-related faults by installing a verified, tested 99-5835-01 directly reduces the frequency of these energy-intensive restart events.
Maintenance-Driven Shutdowns: Predictive maintenance programs depend on accurate I/O data. When the I/O board correctly reports motor current, temperature, and run-time data to the control system, maintenance teams can schedule interventions during planned downtime windows rather than reacting to unexpected failures. This shift from reactive to predictive maintenance improves overall equipment effectiveness (OEE) and reduces the energy cost of unplanned production recovery — including overtime operation and expedited material handling.
Every unit of the Eaton 99-5835-01 supplied by ZYPLC undergoes functional testing prior to shipment, verifying analog input/output accuracy, digital I/O response, and communication integrity. This pre-shipment testing process ensures that the module performs to specification from the moment it is installed, avoiding the commissioning delays and unplanned downtime associated with installing untested or unverified components. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and emergency replacement requirements.
Product Sourcing FAQ
Q1: How does replacing a faulty I/O board improve energy efficiency?
A faulty I/O board introduces signal errors that cause the drive to misread speed references or feedback signals, leading to overcurrent conditions, unnecessary full-speed operation, and frequent fault restarts. Replacing it with a verified Eaton 99-5835-01 restores accurate signal communication, allowing the drive to implement proper load-following speed control and eliminate unplanned downtime from control inaccuracy.
Q2: Is the 99-5835-01 compatible with current Eaton and Cutler-Hammer VFD platforms?
The 99-5835-01 is designed for Cutler-Hammer / Eaton variable frequency drive systems. For specific drive model compatibility, we recommend verifying against your drive’s service manual or contacting ZYPLC directly. Our technical team can confirm fitment based on your drive’s model number and control board revision.
Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers functional defects in the I/O board under normal operating conditions. If the module fails to perform to specification within the warranty period, ZYPLC will arrange a replacement or repair. All warranty claims are processed through our sales team at plc.sales@zyplc.com. We recommend retaining the original packaging and test documentation provided with your shipment to support any warranty claim.
Q4: What testing is performed before shipment?
Each Eaton 99-5835-01 unit is functionally tested prior to dispatch. Testing covers analog I/O signal accuracy, digital input/output response, and board-level communication verification. A test record is available upon request. This process ensures that every module shipped by ZYPLC is ready for immediate installation without requiring additional bench testing on the customer’s side.
