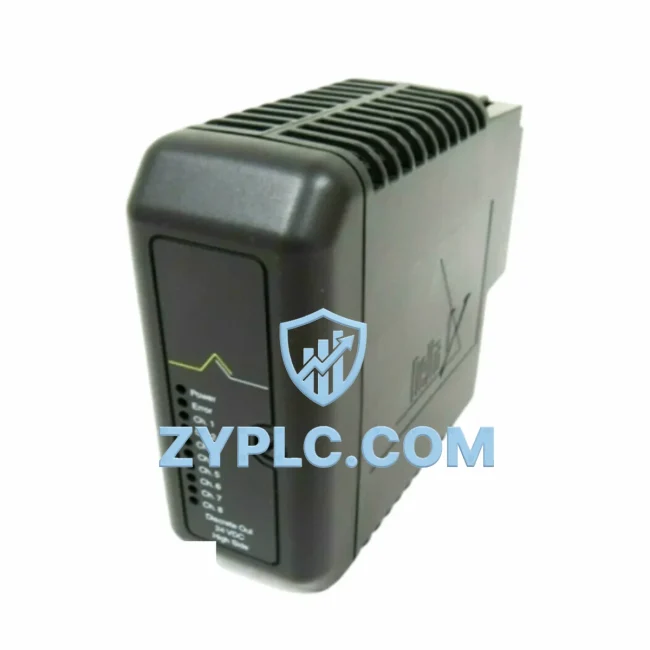

The Emerson KJ3001X1-BJ1 12P0555X152 is a high-integrity DCS I/O interface module engineered for seamless integration within the DeltaV M-Series distributed control system architecture. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered automation hierarchy — bridging the control layer, I/O layer, and field device layer with precision signal routing, deterministic scan cycles, and robust electrical isolation. In complex industrial environments where system uptime and data integrity are non-negotiable, the KJ3001X1-BJ1 12P0555X152 delivers the system integration capability that modern process control demands.

Within a complete DeltaV M-Series control system, this I/O module occupies a pivotal position on the M-Series carrier or I/O subsystem backplane, receiving process signals from field transmitters, valve positioners, and discrete sensors, then forwarding conditioned data to the DeltaV controller via the internal system bus. Its architecture supports deterministic data exchange with the DeltaV MD-Plus or MD Controller, ensuring that scan-cycle integrity is maintained even under high-channel-density configurations. The module’s electrical parameters are optimized for 24 VDC loop-powered field devices, with channel-to-channel isolation that prevents ground loops from propagating across the I/O bus — a critical requirement in petrochemical and power generation environments.

System architects integrating the KJ3001X1-BJ1 12P0555X152 into a DeltaV M-Series platform will find it fully compatible with the DeltaV engineering workstation software suite, enabling online module replacement, channel-level diagnostics, and live parameter adjustment without process interruption. This capability is particularly valuable in continuous process industries such as refining, water treatment, and pharmaceutical manufacturing, where planned shutdowns carry significant economic cost. The module’s plug-and-play compatibility with the M-Series I/O subsystem backplane eliminates the need for manual jumper configuration, reducing commissioning time and minimizing the risk of wiring errors during system expansion.

From a redundancy design perspective, the KJ3001X1-BJ1 12P0555X152 supports DeltaV’s native I/O redundancy architecture when paired with a redundant I/O interface module and the appropriate redundancy switch module. In safety-critical applications — such as burner management systems, emergency shutdown systems, or turbine control — this redundancy capability ensures that a single module failure does not interrupt the signal path between the field and the controller. The module’s self-diagnostic routines continuously monitor channel health, reporting fault conditions to the DeltaV operator workstation in real time, enabling maintenance teams to respond proactively rather than reactively.

Supply chain continuity is a strategic consideration for any long-term DeltaV M-Series installation. ZYPLC maintains verified stock of the KJ3001X1-BJ1 12P0555X152, supported by a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes functional verification prior to shipment, ensuring that the module arrives ready for rack installation and system commissioning without additional bench testing.

Product Specification Table

System Compatibility Notes

The KJ3001X1-BJ1 12P0555X152 does not operate in isolation — its value is realized through coordinated interaction with the surrounding DeltaV M-Series system architecture. At the controller layer, the DeltaV MD-Plus Controller or MQ Controller serves as the execution engine, processing the I/O data delivered by this module and executing control strategies defined in the DeltaV engineering workstation. The DeltaV M-Series Power Supply module provides stable 24 VDC bus power to the I/O carrier, ensuring that all modules on the backplane — including the KJ3001X1-BJ1 12P0555X152 — operate within their specified electrical envelope.

At the network layer, the DeltaV system communicates with higher-level SCADA platforms and historian servers via the DeltaV Application Station, using standard OPC-DA or OPC-UA interfaces. This allows process data collected through the KJ3001X1-BJ1 12P0555X152 to flow seamlessly into plant-wide data infrastructure without protocol conversion overhead. For field-level communication, HART-enabled field devices connected to compatible DeltaV HART I/O modules can share the same I/O subsystem carrier, enabling a mixed analog and digital field architecture within a single backplane assembly.

In redundant system designs, the KJ3001X1-BJ1 12P0555X152 is paired with a DeltaV I/O Redundancy Module and a redundancy switch, creating a hot-standby I/O path that automatically transfers signal routing in the event of a primary module fault — with no interruption to the control loop. At the human-machine interface layer, DeltaV DeltaV Operate (formerly DeltaV Operate Plus) workstations display real-time channel status, alarm conditions, and module health data sourced directly from the I/O module’s diagnostic registers. Terminal blocks and marshalling panels — such as Emerson’s CSLS or third-party DIN-rail terminal assemblies — provide the physical wiring interface between field cables and the I/O module’s channel connectors, completing the signal chain from field device to operator display.

Industrial Application Notes

The KJ3001X1-BJ1 12P0555X152 finds application across a broad spectrum of process industries where DeltaV M-Series systems are deployed as the primary control platform. In oil refinery and petrochemical processing plants, this module handles analog input signals from pressure transmitters, temperature elements, and flow meters installed in hazardous area zones, with the I/O subsystem located in a purged and pressurized control room enclosure. The module’s channel isolation and robust EMC performance ensure signal integrity even in environments with high levels of electrical noise from variable frequency drives and large motor starters.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the DeltaV M-Series architecture with KJ3001X1-BJ1 12P0555X152 modules manages turbine control, boiler combustion management, and balance-of-plant automation. The module’s support for I/O redundancy is particularly critical in these applications, where a single I/O failure could trigger an unplanned unit trip with significant financial consequences. Water and wastewater treatment plants deploy DeltaV M-Series systems for pump station control, chemical dosing, and filtration process management, with the KJ3001X1-BJ1 12P0555X152 providing reliable analog I/O for level, flow, and pH measurement loops.

In pharmaceutical and life sciences manufacturing, where 21 CFR Part 11 compliance and process validation are mandatory, the DeltaV platform’s audit trail and electronic batch record capabilities — fed by I/O data from modules like the KJ3001X1-BJ1 12P0555X152 — support regulatory compliance without additional middleware. Mining and minerals processing operations use DeltaV M-Series systems for crusher control, conveyor management, and flotation cell automation, with the I/O module handling the high channel counts typical of these distributed process environments. Across all these applications, the 12-Month Warranty provided by ZYPLC ensures that replacement modules are available with verified performance, minimizing the risk of extended downtime due to module procurement delays.

Product Compatibility FAQ

Q1: Is the KJ3001X1-BJ1 12P0555X152 compatible with both the DeltaV M-Series and S-Series platforms?
The KJ3001X1-BJ1 12P0555X152 is specifically designed for the DeltaV M-Series I/O subsystem architecture and is not directly interchangeable with DeltaV S-Series (CIOC-based) I/O modules. The M-Series uses a proprietary backplane bus and carrier form factor that differs from the S-Series Electronic Marshalling architecture. System architects planning a migration from M-Series to S-Series should consult Emerson’s DeltaV migration guides and consider using DeltaV CHARM I/O modules for the S-Series platform. ZYPLC can assist with identifying compatible replacement modules for cross-platform migration projects.

Q2: Can the KJ3001X1-BJ1 12P0555X152 be replaced online without shutting down the DeltaV controller?
Yes, the DeltaV M-Series architecture supports online module replacement (hot-swap) for I/O modules when the system is configured with I/O redundancy. In a redundant I/O configuration, the standby module maintains the signal path while the primary module is removed and replaced, allowing maintenance to be performed without interrupting the control loop. In non-redundant configurations, online replacement is possible but will result in a temporary loss of the affected I/O channels during the swap procedure. The DeltaV engineering workstation provides step-by-step guidance for online module replacement, and ZYPLC’s technical support team can assist with pre-replacement planning to minimize process impact.

Q3: What does the 12-Month Warranty from ZYPLC cover for the KJ3001X1-BJ1 12P0555X152?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional performance of the KJ3001X1-BJ1 12P0555X152 under normal operating conditions consistent with Emerson’s published specifications. Each module is functionally tested prior to shipment to verify channel operation, bus communication, and diagnostic reporting. The warranty covers repair or replacement of defective units at no additional cost within the warranty period. It does not cover damage resulting from incorrect installation, operation outside specified electrical parameters, or physical damage during handling. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
