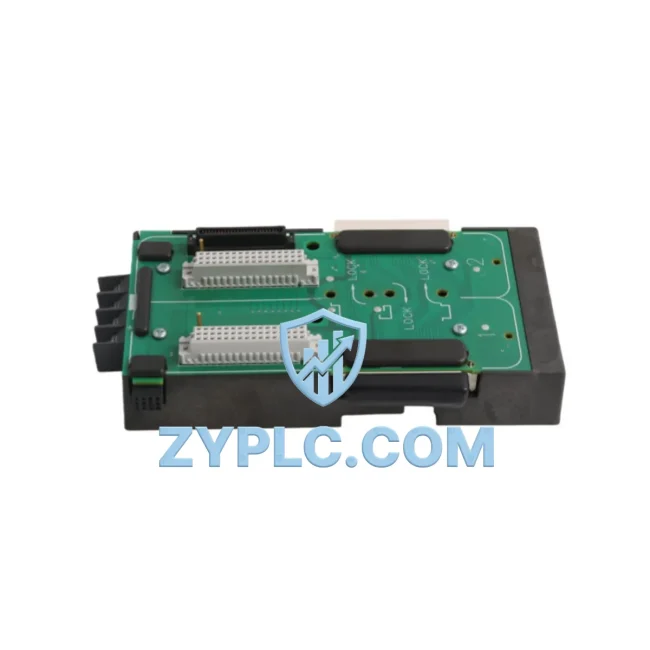

The Emerson KJ4001X1-BA3 (also referenced as 12P3378X032 / VE3051C0) is a dedicated DCS power supply module engineered for seamless integration within the Emerson DeltaV distributed control system platform. Rather than functioning as a standalone component, this module occupies a critical position in the power layer of a multi-tier automation architecture — delivering stable, conditioned DC power to controller nodes, I/O subsystems, and communication infrastructure across the full system hierarchy. Its design philosophy reflects the demands of continuous-process industries where power interruption is not an option and where every module in the control cabinet must contribute to system-wide reliability, redundancy, and maintainability.

In a fully realized DeltaV control architecture, the KJ4001X1-BA3 interfaces directly with the DeltaV controller carrier and I/O subsystem backplane, supplying regulated power to modules such as the KJ2201X1-BA1 DeltaV I/O Link Interface, the KJ3001X1-BA1 DeltaV Controller, and associated marshalling panels. The power layer it supports feeds into the signal conditioning and I/O scanning functions of modules like the KJ1501X1-BB1 Analog Input and KJ1301X1-BB1 Discrete Output, ensuring that field signal acquisition and actuator command execution remain uninterrupted even under variable load conditions. This contextual integration between the power supply module and the broader I/O layer is what distinguishes a well-engineered DeltaV system from a loosely assembled one.

At the network and communication layer, the KJ4001X1-BA3 supports the operational continuity of DeltaV’s FOUNDATION Fieldbus H1 segments and HART-enabled I/O channels by maintaining the power stability required for deterministic communication cycles. Communication gateways such as the KJ4001X1-BA1 and redundant controller pairs depend on consistent power delivery to sustain their Ethernet-based control network links without jitter or dropout. In redundant DeltaV architectures, dual power supply configurations using matched KJ4001X1-series modules provide automatic failover capability, ensuring that a single power supply fault does not propagate into a process upset or unplanned shutdown.

From a system engineering perspective, the KJ4001X1-BA3 is designed to mount directly onto the DeltaV carrier rail within a standard 19-inch control cabinet or DIN-rail enclosure. Its compact form factor and standardized connector interface allow it to be installed alongside DeltaV power conditioners, surge protection modules, and UPS interface units without requiring custom wiring or additional mounting hardware. This plug-and-play compatibility reduces commissioning time and simplifies future module replacement during scheduled maintenance windows — a key consideration for facilities operating under tight turnaround constraints.

In layered automation environments, the power supply module interacts with the human-machine interface layer indirectly but critically. DeltaV operator workstations and DeltaV Live HMI servers rely on the control network remaining powered and stable; any instability in the power layer cascades upward into display latency, alarm management degradation, and potential loss of historian continuity. By maintaining a clean, regulated power output, the KJ4001X1-BA3 protects the integrity of the entire supervisory layer, from real-time process graphics to long-term data trending and compliance reporting.

For facilities managing large-scale DeltaV deployments across multiple process units, maintaining a strategic inventory of KJ4001X1-BA3 modules is a recognized best practice. Mean time to repair (MTTR) targets in process industries typically require that critical spare modules be available on-site or through a qualified distributor with guaranteed lead times. ZYPLC maintains verified stock of the KJ4001X1-BA3 with a 12-Month Warranty covering manufacturing defects and functional performance, supporting both emergency replacement scenarios and planned lifecycle refresh programs.

Architecture Specification Table

Coordinated Control System Design

The KJ4001X1-BA3 achieves its full value when evaluated within the context of a coordinated DeltaV system design. At the controller tier, it powers the KJ3001X1-BA1 DeltaV MD Controller, which manages the execution of control strategies across multiple I/O subsystems. The controller’s scan cycle integrity — critical for PID loop performance and sequence logic execution — depends directly on the stability of the power supply feeding its carrier. In redundant controller configurations, a matched pair of KJ4001X1-BA3 modules ensures that the primary and secondary controllers receive independent, isolated power feeds, eliminating the power supply as a single point of failure in the control architecture.

At the I/O layer, the KJ4001X1-BA3 supports the operational requirements of analog input modules such as the KJ1501X1-BB1, discrete output modules such as the KJ1301X1-BB1, and the KJ2201X1-BA1 I/O Link Interface that connects remote I/O subsystems to the main controller network. These modules depend on a stable 24 VDC bus to maintain accurate signal conversion, relay switching, and fieldbus communication. Any ripple or dropout in the power supply output directly degrades measurement accuracy and actuator response time — making the KJ4001X1-BA3’s regulated output a foundational requirement for I/O layer performance.

Communication infrastructure within the DeltaV architecture — including FOUNDATION Fieldbus H1 segment power conditioners, HART multiplexers, and the DeltaV Ethernet control network switches — also benefits from the clean power environment established by the KJ4001X1-BA3. In facilities where the DeltaV system interfaces with third-party SCADA platforms or historian servers via OPC-DA or OPC-UA, maintaining communication network stability through reliable power supply design is essential for data integrity and audit trail continuity. The KJ4001X1-BA3 supports this requirement by providing a consistent, low-noise power output that minimizes electromagnetic interference within the control cabinet.

Application in Layered Automation Systems

The Emerson KJ4001X1-BA3 finds application across a broad range of process industries where the DeltaV platform is the control system of choice. In oil and gas upstream and midstream facilities, DeltaV systems manage wellhead automation, gas compression control, and pipeline SCADA integration; the KJ4001X1-BA3 provides the power layer stability required for continuous, unattended operation in remote locations with limited maintenance access. In petrochemical and refining plants, where DeltaV controls distillation columns, reactor temperature loops, and safety instrumented system (SIS) interfaces, the power supply module’s redundancy support is a key element of the overall functional safety architecture.

In power generation and utilities, DeltaV systems are deployed for boiler management, turbine control, and water treatment automation. The KJ4001X1-BA3 supports these applications by maintaining power continuity across the I/O subsystems that monitor steam flow, feedwater chemistry, and generator output parameters. In water and wastewater treatment facilities, where DeltaV manages pump sequencing, chemical dosing, and effluent monitoring, the module’s wide input voltage range accommodates the variable power quality conditions common in municipal utility environments.

Mining and metals processing operations use DeltaV for ore processing control, conveyor management, and smelter automation. In these environments, the KJ4001X1-BA3’s robust design and 12-Month Warranty provide the reliability assurance required for high-availability production systems where unplanned downtime carries significant financial consequences. Pharmaceutical and food and beverage manufacturers operating DeltaV systems under FDA 21 CFR Part 11 or GAMP 5 validation frameworks rely on the power supply module’s consistent performance to maintain the validated state of their control systems across extended production campaigns.

Architecture Engineering FAQ

Q1: Is the KJ4001X1-BA3 compatible with all DeltaV system generations, and can it be used in a mixed-generation DeltaV architecture?
The KJ4001X1-BA3 is designed for use within the Emerson DeltaV platform and is compatible with DeltaV carrier assemblies that accept the standard KJ4001X1-series power supply form factor. In mixed-generation DeltaV architectures — where older S-series and newer MD/SD controller generations coexist — it is essential to verify carrier compatibility and power budget requirements for each subsystem. ZYPLC recommends consulting the Emerson DeltaV hardware compatibility matrix and confirming the specific carrier part number before installation. Our technical team can assist with compatibility verification as part of the 12-Month Warranty support process.

Q2: How should the KJ4001X1-BA3 be configured in a redundant DeltaV power architecture, and what are the commissioning requirements?
In a redundant DeltaV power configuration, two KJ4001X1-BA3 modules are installed in parallel on the same carrier, with each module connected to an independent AC power feed — ideally from separate distribution panels or UPS systems. The DeltaV carrier automatically manages load sharing and failover between the two power supplies without requiring manual intervention or software configuration. During commissioning, engineers should verify that both power supplies are within their rated output voltage tolerance, that the carrier’s power bus connectors are fully seated, and that the system’s power budget — accounting for all installed I/O and communication modules — does not exceed the combined rated output of the redundant pair. ZYPLC provides commissioning support documentation for KJ4001X1-BA3 installations as part of the standard 12-Month Warranty package.

Q3: What long-term maintenance practices are recommended for the KJ4001X1-BA3, and how does ZYPLC support lifecycle management for this module?
Long-term maintenance for the KJ4001X1-BA3 should include periodic inspection of output voltage levels using a calibrated multimeter, verification of connector integrity and seating, and thermal monitoring of the control cabinet environment to ensure operating temperatures remain within specification. Emerson DeltaV diagnostic tools can be used to monitor power supply status through the DeltaV Explorer interface, providing early warning of degraded performance before a failure occurs. ZYPLC supports lifecycle management for the KJ4001X1-BA3 by maintaining verified inventory for emergency replacement, offering a 12-Month Warranty on all supplied modules, and providing traceability documentation to support maintenance records and regulatory compliance requirements.
