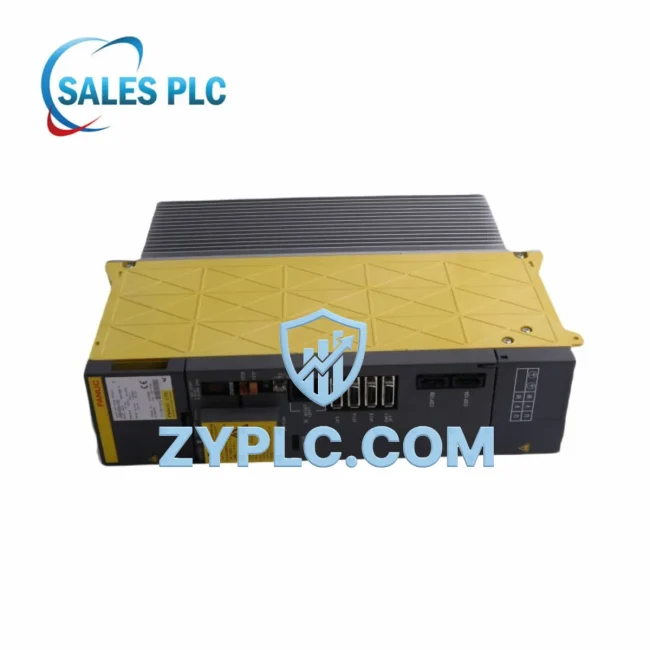

FANUC A06B-6290-H106 Energy-Saving Servo Amplifier αi Series

FANUC A06B-6290-H106 Energy-Saving Servo Amplifier for Optimized αi Automation

The FANUC A06B-6290-H106 is a high-performance servo amplifier module from the FANUC αi Series, engineered to deliver precision motion control with measurable energy efficiency gains across CNC machining centers, robotic cells, and multi-axis production lines. As manufacturing facilities face increasing pressure to reduce energy consumption without sacrificing throughput, the A06B-6290-H106 stands out as a critical component in the drive toward leaner, smarter factory operations.

Unlike conventional servo drives that operate at fixed output regardless of load demand, the αi Series amplifier architecture dynamically adjusts power delivery to match real-time axis load conditions. This means that during low-load phases — tool changes, rapid traverses, or idle dwell periods — the A06B-6290-H106 significantly reduces power draw, contributing directly to lower electricity costs and reduced thermal stress on surrounding components. In high-throughput environments running three shifts, these efficiency gains accumulate into substantial operational savings over a production year.

The A06B-6290-H106 is designed for seamless integration with FANUC CNC controllers including the Series 30i, 31i, and 32i platforms, where it communicates via FANUC’s FSSB (FANUC Serial Servo Bus) — a high-speed fiber-optic serial link that eliminates traditional encoder cable noise and reduces wiring complexity. This tight integration between the amplifier and the CNC controller enables real-time torque feedback, position loop closure at microsecond intervals, and adaptive current control that keeps motor efficiency at its peak across the full speed range.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized FANUC-based production cell, the A06B-6290-H106 does not operate in isolation — it functions as the power execution layer within a tightly coordinated automation architecture. At the control level, a FANUC Series 31i-B CNC controller issues interpolated motion commands that the amplifier translates into precise current waveforms delivered to the connected αi servo motor, such as the A06B-0227-B100 or A06B-0235-B605 spindle motor variants. The FSSB link between the controller and the A06B-6290-H106 ensures that position and velocity feedback loops close within microseconds, enabling the kind of tight synchronization that modern five-axis machining demands.

Energy monitoring begins upstream, where a FANUC Power Supply Module — typically from the A06B-6200 or A06B-6220 PSM series — conditions incoming three-phase AC power and provides the DC bus voltage that feeds the A06B-6290-H106. These PSM units incorporate regenerative capability, meaning that braking energy from decelerating servo axes is fed back into the DC bus and shared with other amplifier modules rather than being dissipated as heat. This regenerative sharing architecture is one of the most impactful energy-saving features in the αi Series ecosystem, and the A06B-6290-H106 is fully compatible with it.

At the I/O and monitoring layer, a FANUC I/O Module — such as those in the A03B-0819 series — collects real-time signals from proximity sensors, thermal monitors, and axis limit switches, feeding this data back to the CNC controller for adaptive process control. When integrated with a FANUC PANEL i or an external HMI running FANUC MT-LINKi middleware, operators gain live visibility into per-axis power consumption, cycle time efficiency, and alarm histories — all without leaving the machine control interface. This data transparency is the foundation of predictive maintenance strategies that prevent unplanned downtime and keep OEE (Overall Equipment Effectiveness) metrics on target.

For facilities running mixed fleets, the A06B-6290-H106 can coexist on the same DC bus with βi Series amplifier modules handling auxiliary axes, allowing engineers to right-size the drive architecture for each axis’s actual power requirements rather than over-specifying across the board. This selective deployment approach further reduces total system power consumption and simplifies spare parts management.

Power Optimization in Real Production Lines

Consider a typical automotive parts machining line running FANUC-controlled five-axis machining centers on a 24/7 production schedule. Without optimized servo amplifier management, each machine may draw near-peak current even during non-cutting phases — rapid positioning, tool changes, and pallet swaps — because conventional drives maintain full bus voltage regardless of demand. The A06B-6290-H106 addresses this directly through its adaptive PWM switching frequency control, which reduces switching losses during low-torque phases and recovers energy during deceleration via the shared DC bus regenerative circuit.

In practical terms, a production line with six machining centers, each equipped with A06B-6290-H106 amplifiers on primary axes, can expect measurable reductions in peak demand charges — a significant cost factor in industrial electricity tariffs. Beyond energy costs, the lower thermal output of the amplifier modules reduces the cooling load on the electrical cabinet, extending the service life of cooling fans, capacitors, and neighboring control components including the FANUC Servo Amplifier SVM series modules sharing the same cabinet.

Predictive maintenance integration is another key efficiency lever. By monitoring the A06B-6290-H106’s internal diagnostic registers through the FANUC Series 31i controller’s PMC (Programmable Machine Controller) ladder logic, maintenance teams can track amplifier temperature trends, regenerative load ratios, and IGBT switching cycle counts. When these parameters approach threshold values, the system can trigger pre-emptive maintenance alerts through the plant’s SCADA or MES layer — preventing the kind of unplanned failures that cost far more in lost production than the maintenance intervention itself.

Every A06B-6290-H106 unit supplied by ZYPLC undergoes a pre-shipment functional test that verifies output current linearity, FSSB communication integrity, and thermal protection circuit response. This testing protocol ensures that the amplifier arrives ready for immediate installation, eliminating the commissioning delays that often accompany replacement parts sourced without verification. Combined with a 12-month warranty covering both parts and labor support, ZYPLC’s supply of the A06B-6290-H106 represents a low-risk, high-value procurement decision for maintenance and engineering teams.

Energy Optimization FAQ

Q1: How much energy can the FANUC A06B-6290-H106 save compared to older servo amplifier generations?
The A06B-6290-H106 belongs to FANUC’s αi Series, which incorporates regenerative braking energy recovery and adaptive PWM control. In multi-axis installations with shared DC bus PSM units, energy recovered during axis deceleration is redistributed to accelerating axes rather than wasted as heat. Actual savings depend on duty cycle and axis count, but facilities transitioning from older α Series or non-regenerative drives typically report measurable reductions in peak demand and total kWh consumption per production cycle.

Q2: Is the A06B-6290-H106 compatible with my existing FANUC CNC controller and servo motors?
The A06B-6290-H106 is designed for use with FANUC Series 30i, 31i, 32i, 0i-F, and 0i-D CNC controllers communicating via FSSB. It is compatible with αi Series servo motors including standard and high-inertia variants. If you are replacing an older amplifier, ZYPLC’s technical team can verify compatibility based on your controller software version and motor model before shipment.

Q3: What does the pre-shipment test cover, and how does it relate to the 12-month warranty?
Every A06B-6290-H106 unit is tested for output current accuracy, FSSB communication handshake, thermal protection circuit activation, and regenerative circuit continuity before dispatch. Units that pass all test parameters are covered by a 12-month warranty from the date of shipment. If a fault is identified within the warranty period, ZYPLC provides replacement or repair support with priority handling.

Q4: Can the A06B-6290-H106 be used as a direct drop-in replacement for a failed amplifier on an active production line?
Yes. The A06B-6290-H106 is a direct replacement for compatible αi Series amplifier positions. Because FANUC’s FSSB architecture stores axis parameters in the CNC controller rather than the amplifier module itself, replacement typically requires only physical installation and a parameter restore from the controller backup — no axis re-tuning is needed in most cases. ZYPLC recommends confirming the amplifier axis specification (current rating and axis count) matches the original unit before installation.
