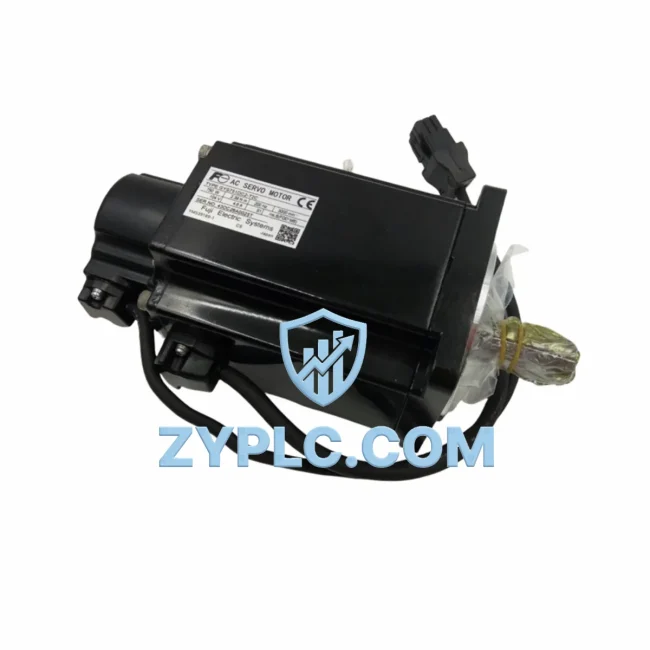

Fuji GYS201DC2-T2E-Z3 Energy-Saving Servo Motor FALDIC-W

Fuji GYS201DC2-T2E-Z3 Energy-Saving Servo Motor FALDIC-W: Precision Efficiency Control for Optimized Production Lines

The Fuji GYS201DC2-T2E-Z3 is a high-performance AC servo motor engineered for the FALDIC-W series drive ecosystem by Fuji Electric. Rated at 200W with a DC power input configuration, this motor is purpose-built for industrial automation environments where energy efficiency, precise torque control, and minimal downtime are non-negotiable. Whether deployed in packaging machinery, conveyor systems, CNC tooling, or robotic assembly cells, the GYS201DC2-T2E-Z3 delivers consistent rotational accuracy while actively reducing unnecessary power draw across the production cycle.

In modern manufacturing, energy waste is rarely caused by a single component — it accumulates across poorly matched drive-motor pairs, oversized actuators running at partial load, and control loops that fail to adapt to real-time demand. The GYS201DC2-T2E-Z3 addresses this at the motor level by maintaining high torque density within a compact frame, enabling engineers to right-size their drive systems without sacrificing output. When paired with the FALDIC-W RYH201F5-VV2 servo amplifier, the system achieves closed-loop efficiency that significantly outperforms open-loop induction motor alternatives in variable-load applications.

Efficiency Performance Table

Energy-Aware Automation Architecture

Deploying the GYS201DC2-T2E-Z3 within a well-structured automation architecture unlocks its full energy-saving potential. At the drive layer, the FALDIC-W RYH201F5-VV2 servo amplifier provides real-time current regulation and regenerative braking capability, feeding deceleration energy back into the DC bus rather than dissipating it as heat. This is particularly valuable in high-cycle applications such as pick-and-place systems or indexing conveyors where the motor accelerates and decelerates dozens of times per minute.

At the control layer, integration with the MICREX-SX SPH series PLC enables synchronized multi-axis coordination. The SPH’s high-speed pulse output and motion control instructions allow the GYS201DC2-T2E-Z3 to execute precise positioning tasks without overshooting, which eliminates the corrective micro-movements that silently consume energy and accelerate mechanical wear. For facilities already running Fuji’s FRENIC-Ace variable frequency drives on auxiliary motors — fans, pumps, and compressors — the GYS201DC2-T2E-Z3 fits naturally into the same energy management philosophy, allowing plant engineers to apply consistent efficiency standards across both servo and induction motor assets.

Power quality monitoring is handled upstream by the Fuji NR1 power monitor, which tracks real-time kWh consumption, power factor, and harmonic distortion at the panel level. When the NR1 data is fed into the plant SCADA or energy management system, operators gain visibility into exactly how much energy each servo axis consumes per production cycle — enabling data-driven decisions about speed profiles, dwell times, and load balancing. Complementing this, the Fuji PXR series temperature controller manages thermal conditions in adjacent process equipment, ensuring that heat generated by the servo system does not cascade into neighboring control cabinets and trigger unnecessary cooling loads.

For I/O expansion and distributed control, the MICREX-SX NP1 remote I/O modules extend the control network to field devices without adding latency to the servo feedback loop. Communication between the servo amplifier, PLC, and HMI is typically handled via RS-485 Modbus RTU or PROFIBUS-DP, both of which are natively supported in the FALDIC-W ecosystem. Operators monitor system status and adjust motion parameters through the Fuji UG series HMI, which provides real-time trend displays of motor speed, torque utilization, and alarm history — all critical inputs for predictive maintenance scheduling.

For applications requiring higher torque at the same frame size, the GYS401DC2-T2E-Z3 (400W variant) is a direct mechanical and electrical upgrade within the same FALDIC-W motor family, sharing identical mounting dimensions and encoder interface. This scalability means that production line upgrades can be executed without redesigning the control cabinet or rewiring the drive panel.

Power Optimization in Real Production Lines

In a typical packaging line running 16 hours per day, servo motors account for a significant share of total electrical consumption — not because individual units draw large amounts of power, but because there are many of them, and they run continuously even during product changeovers and line stoppages. The GYS201DC2-T2E-Z3 addresses this through its low-inertia rotor design, which allows the FALDIC-W amplifier to bring the motor to a controlled stop within milliseconds of receiving a halt command, rather than allowing it to coast and draw holding current unnecessarily.

Predictive maintenance is another area where this motor delivers measurable cost reduction. The incremental encoder (T2E) provides continuous position feedback that the servo amplifier uses to detect abnormal load signatures — early indicators of bearing wear, coupling misalignment, or mechanical binding. When these anomalies are caught early through encoder data analysis, maintenance teams can schedule interventions during planned downtime rather than responding to unplanned failures that halt the entire production line. Combined with the 12-month warranty and pre-shipment testing protocol at ZYPLC, customers receive a motor that has already been verified under load conditions before it reaches the factory floor.

Line throughput optimization is achieved by tuning the servo gain parameters in the RYH amplifier to match the specific inertia ratio of the connected load. A properly tuned servo system reaches target position faster, settles without oscillation, and is ready for the next motion command sooner — directly improving production line cycle time (takt time) without increasing motor speed or power consumption. In multi-axis systems coordinated by the MICREX-SX SPH, this tuning can be applied globally across all axes simultaneously, reducing commissioning time from days to hours.

Energy Optimization FAQ

Q1: How much energy can the GYS201DC2-T2E-Z3 save compared to a standard induction motor of equivalent output?
In variable-load and high-cycle applications, a properly tuned FALDIC-W servo system typically reduces energy consumption by 20–40% compared to an uncontrolled induction motor running at fixed speed. The closed-loop control eliminates the constant full-speed operation that induction motors require to maintain positioning accuracy, and the regenerative braking capability of the RYH amplifier recovers deceleration energy that would otherwise be lost as heat.

Q2: Is the GYS201DC2-T2E-Z3 compatible with third-party servo amplifiers or only Fuji FALDIC-W drives?
This motor is optimized for use with Fuji Electric FALDIC-W series amplifiers (RYH series). The T2E incremental encoder uses a proprietary interface protocol matched to the FALDIC-W amplifier’s feedback circuit. While physical connection to third-party drives may be possible with adapter hardware, full performance, safety, and warranty coverage are only guaranteed when used with the designated FALDIC-W amplifier. For replacement or upgrade scenarios, ZYPLC can advise on compatible amplifier models.

Q3: What is the testing and inspection process before shipment?
Every GYS201DC2-T2E-Z3 unit supplied by ZYPLC undergoes a pre-shipment functional test that includes no-load run verification, encoder signal integrity check, insulation resistance measurement, and visual inspection of the shaft, connectors, and housing. Test results are documented and available upon request. Units that do not meet Fuji Electric’s original performance specifications are not shipped. This process is backed by a 12-month warranty from the date of delivery.

Q4: What should I consider when replacing an existing servo motor with the GYS201DC2-T2E-Z3?
Verify that the replacement motor matches the original in rated power (200W), encoder type (incremental T2E), shaft configuration (Z3), and amplifier compatibility (FALDIC-W RYH series). If the existing installation uses a different encoder variant or shaft option, ZYPLC’s technical team can help identify the correct replacement SKU within the GYS series. After installation, re-run the servo amplifier’s auto-tuning routine to re-establish optimal gain settings for the new motor-load combination. No changes to the PLC program or HMI configuration are typically required for a like-for-like replacement.
