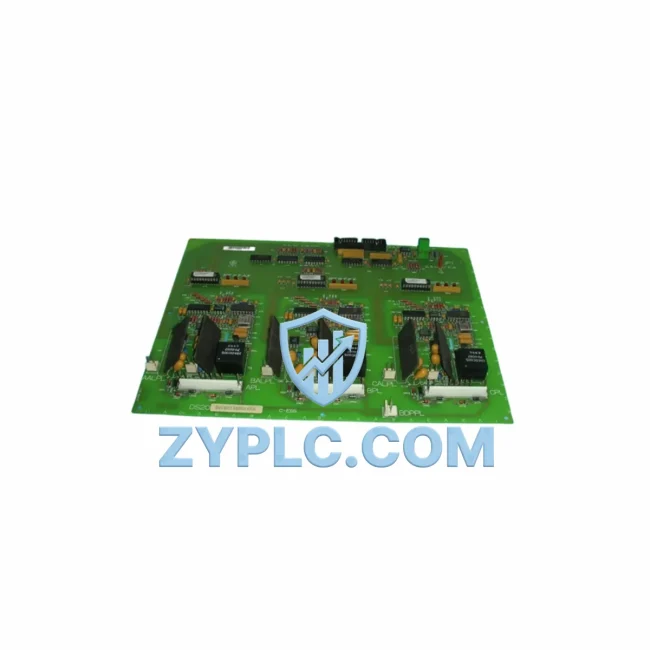

In modern industrial power generation and process automation, the efficiency of gate-level switching directly determines how much energy is consumed, wasted, or recovered across an entire drive system. The GE DS200IIBDG1AEA IGBT Gate Driver Board is engineered for the Mark VI turbine control platform, delivering precise, high-speed gate signal conditioning that minimizes switching losses, reduces thermal stress on power semiconductors, and sustains optimal drive performance across variable load conditions. For facilities managing gas turbines, steam turbines, or combined-cycle power plants, this board is a critical component in the energy control chain — not a peripheral accessory.

Every microsecond of gate delay or signal distortion in an IGBT driver translates into measurable energy loss at the inverter stage. The DS200IIBDG1AEA addresses this by providing clean, isolated gate drive signals with tightly controlled rise and fall times, ensuring that the IGBT modules in the power conversion stack switch at maximum efficiency. This directly reduces conduction losses, lowers heat dissipation requirements, and extends the operational lifespan of downstream power components — all of which contribute to a lower total cost of ownership and a more predictable maintenance schedule.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DS200IIBDG1AEA does not operate in isolation. Its performance is inseparable from the broader Mark VI control architecture, and understanding how it interacts with adjacent boards and modules is essential for any energy optimization initiative.

At the control layer, the DS200TCQAG1BHF Turbine Control Board coordinates the sequencing logic that determines when and how the IGBT gate driver is activated. Precise sequencing reduces unnecessary switching events — a direct contributor to energy savings. Alongside it, the DS200SDCIG1AFB Signal Distribution and Conditioning Board ensures that analog and digital signals feeding into the gate driver are clean and within specification, preventing erroneous switching that would otherwise generate excess heat and energy loss.

On the power monitoring side, the DS200DCFBG1BNA DC Feedback Board provides real-time voltage and current feedback from the DC bus, enabling the control system to dynamically adjust gate timing in response to actual load conditions rather than fixed setpoints. This closed-loop feedback is what separates energy-aware automation from simple on/off control. The IS200VTURH1BAC Vibration and Speed Monitoring Module further contributes by detecting mechanical anomalies early — before they cause the drive system to compensate with excess power draw.

For I/O management, the IS200BPIAG1AED Baseplate Interface Board and the IS200STAIH2ACB Static Input Board handle the discrete signal routing that governs protective interlocks and operational mode transitions. Properly configured, these boards prevent the system from entering high-energy fault recovery cycles — one of the most significant sources of unplanned energy consumption in turbine control applications.

Communication integrity is maintained through the IS200VPROH1BSC Protection and Communication Board, which manages the data exchange between the Mark VI controller and plant-level SCADA or DCS systems. Accurate, low-latency communication ensures that energy management commands from the supervisory layer are executed without delay. The DS200SDCCG1AFG Signal Conditioning Board complements this by filtering noise from field instrumentation, preventing false triggers that could cause the gate driver to cycle unnecessarily.

At the system power supply level, the IS200EPSMG1AED Power Supply Module provides stable, regulated voltage to the control boards, including the DS200IIBDG1AEA. Voltage stability directly affects gate drive accuracy — fluctuations in supply voltage can alter gate charge timing and increase switching losses. Finally, the DS200PCCAG9ACB Power Core Control Board ties the entire power conversion architecture together, coordinating the high-level energy flow decisions that the gate driver executes at the component level.

Power Optimization in Real Production Lines

In a gas turbine power plant running continuous baseload generation, the IGBT gate driver board is active for thousands of hours per year. Even a marginal improvement in switching efficiency — measured in fractions of a percent — accumulates into significant energy savings at scale. A facility operating multiple turbine units with degraded or out-of-specification gate driver boards may be losing energy equivalent to running an additional auxiliary load continuously, without any corresponding output benefit.

The DS200IIBDG1AEA helps production facilities reclaim this lost efficiency in several concrete ways. First, by restoring precise gate timing, it eliminates the excess heat generated by slow or asymmetric switching — heat that must then be removed by cooling systems, adding to the facility’s overall energy burden. Second, by maintaining signal integrity across the full operating temperature range, it prevents the control system from entering protective derating modes that reduce turbine output while maintaining near-full auxiliary power consumption.

From a maintenance perspective, a properly functioning gate driver board reduces the frequency of unplanned shutdowns caused by IGBT module failures. Each unplanned shutdown carries a significant energy cost: the energy consumed during restart sequences, the thermal cycling stress on components, and the production losses that force other units to compensate by running at higher — and less efficient — load points. Predictive maintenance strategies that include regular inspection and proactive replacement of DS200IIBDG1AEA boards can reduce these events substantially.

All units supplied by ZYPLC are tested under load conditions prior to shipment, with functional verification of gate signal output, isolation integrity, and compatibility with Mark VI rack configurations. This pre-shipment testing protocol ensures that replacement boards perform to specification from the first power-on, avoiding the efficiency losses associated with running a partially functional or marginal board during a break-in period.

Energy Optimization FAQ

Q1: How does the DS200IIBDG1AEA contribute to measurable energy savings in a turbine control system?
By restoring precise IGBT gate switching timing, the board minimizes switching losses at the inverter stage. In continuous-duty turbine applications, this reduces heat generation, lowers cooling system load, and prevents the control system from entering protective derating modes — all of which translate into more efficient energy conversion across the operating cycle.

Q2: Is the DS200IIBDG1AEA compatible with both Mark VI and Mark VIe control platforms?
The DS200IIBDG1AEA is designed for the GE Mark VI turbine control platform. Compatibility with Mark VIe configurations depends on the specific rack and backplane version. We recommend providing your full system configuration details so our technical team can confirm fit before shipment.

Q3: What is the recommended replacement interval, and how do I know if my current board is causing efficiency losses?
There is no fixed replacement interval — condition-based replacement is recommended. Indicators of a degrading gate driver board include increased IGBT module temperatures, unexplained increases in drive system heat output, erratic switching behavior logged by the Mark VI diagnostics, and rising energy consumption without corresponding load increases. If any of these symptoms are present, board replacement should be prioritized.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All DS200IIBDG1AEA units are functionally tested prior to shipment, including gate signal output verification, isolation resistance testing, and compatibility checks against Mark VI rack specifications. The 12-month warranty covers functional defects under normal operating conditions. Units that fail within the warranty period are replaced or refunded — contact our team to initiate a warranty claim.
