GE DS200RTBAG2AGL Industrial Network Interface for Mark VI Systems

GE DS200RTBAG2AGL: Industrial Data Link for Mark VI Turbine Control Networks

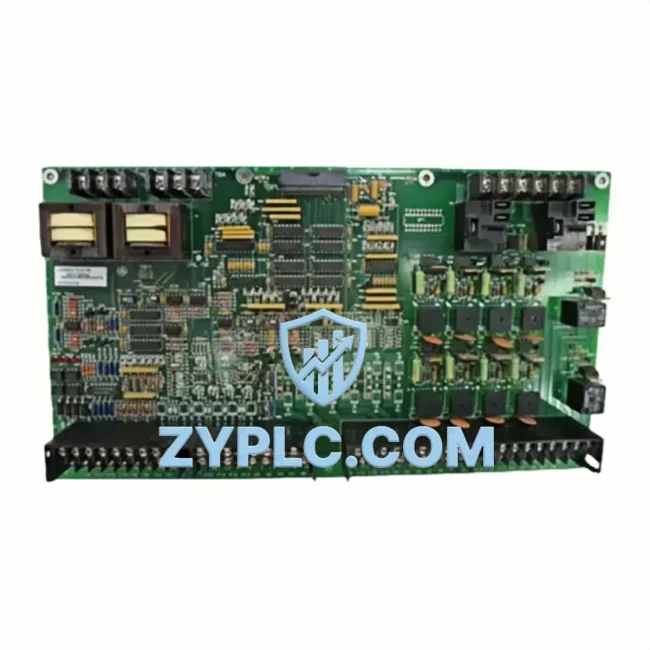

The GE DS200RTBAG2AGL Relay Terminal Board is a precision-engineered industrial network interface module designed for seamless integration within GE’s Mark VI turbine control architecture. As a critical node in the plant-wide automation data chain, the DS200RTBAG2AGL bridges field-level relay signals with the high-speed communication backbone of the Mark VI control platform, enabling real-time data acquisition, protocol-transparent signal routing, and deterministic I/O response across distributed control systems.

In modern smart factory and power generation environments, the integrity of the data link between field devices and supervisory systems is non-negotiable. The DS200RTBAG2AGL fulfills this role by providing a robust relay termination interface that connects physical actuators, protective relays, and discrete I/O signals directly into the Mark VI’s I/O network fabric. This ensures that every trip signal, permissive interlock, and status feedback is captured with microsecond-level fidelity and transmitted without data loss to the control processor.

Network Communication Table

Connected Automation Data Flow

The DS200RTBAG2AGL operates at the intersection of physical relay actuation and digital control intelligence. In a typical Mark VI turbine control deployment, the data flow originates at field-mounted sensors — including thermocouple inputs processed by the DS200TCTSG1A thermocouple terminal board and vibration probes interfaced through the DS200VPBAG1A vibration terminal board. These analog signals are conditioned and digitized before being passed upstream through the Mark VI I/O bus to the core control processor modules such as the IS215UCVEH2A or IS215UCVEH2AE VME controller cards.

The DS200RTBAG2AGL then receives discrete command outputs from the Mark VI processor and translates them into hardwired relay contact closures — driving solenoid valves, motor starters, trip relays, and protective interlock circuits. Simultaneously, the relay status feedback is encoded and returned via the I/O bus, providing the GE Cimplicity HMI and plant-level SCADA systems with real-time confirmation of actuator state. This closed-loop data path is essential for turbine protection logic, where a missed trip signal can result in catastrophic equipment failure.

Within the broader Mark VI network architecture, the DS200RTBAG2AGL works in concert with communication gateway modules such as the IS215ACLEH1A Ethernet communication board, which bridges the Mark VI IONet to plant DCS networks running Modbus TCP or OPC DA/UA protocols. This gateway capability allows SCADA platforms — including GE Cimplicity, Wonderware System Platform, and Ignition SCADA — to poll real-time relay status data, log trip events, and generate alarm notifications without any manual intervention.

For remote diagnostic scenarios, the IONet-connected architecture enables engineers to interrogate relay contact states, review I/O health diagnostics, and perform loop checks from the engineering workstation without physical access to the terminal board. The DS200RTBAG2AGL also interfaces with the DS200SDCIG2A DC power distribution board, ensuring that relay coil power is cleanly regulated and isolated from the control logic supply — a critical design requirement in high-noise turbine environments. Redundant power feeds from the IS200EPCTG1A power supply module further guarantee uninterrupted relay operation during grid disturbances or maintenance switching events.

In combined cycle plant configurations, the DS200RTBAG2AGL relay outputs are often mapped to cross-system interlock signals that coordinate gas turbine, steam turbine, and HRSG (Heat Recovery Steam Generator) protection sequences. These signals traverse the plant-wide Ethernet backbone — typically a managed industrial switch network — before reaching the DCS master controller, where they are processed alongside data from remote I/O racks equipped with IS200IOCIH1A I/O controller interface boards. This multi-node data architecture exemplifies the DS200RTBAG2AGL’s role not merely as a passive terminal board, but as an active participant in the plant’s real-time control and safety network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging power generation and industrial facilities is protocol fragmentation — legacy relay panels operating on hardwired logic that cannot communicate with modern DCS or SCADA platforms. The GE DS200RTBAG2AGL directly addresses this by providing a standardized relay termination interface that is natively compatible with the Mark VI’s IONet communication layer, eliminating the need for third-party protocol converters or custom signal conditioning hardware.

Data silos are broken down when the DS200RTBAG2AGL’s relay status signals are made available in real time to the plant historian and SCADA system. Operators gain full visibility into relay contact states, trip counts, and interlock activation history — data that was previously trapped in hardwired logic panels with no digital record. This transparency is foundational to predictive maintenance programs, where relay contact wear patterns and trip frequency trends are analyzed to schedule proactive replacements before field failures occur.

Remote monitoring capability is another key value delivered by the DS200RTBAG2AGL within the Mark VI network. Plant engineers can access relay diagnostics from a centralized control room or even from off-site locations via secure VPN connections to the plant SCADA server, reducing the need for costly field inspections and enabling faster fault isolation during unplanned outages. Production line transparency is further enhanced by integrating relay status data into digital twin models and MES (Manufacturing Execution System) platforms, where equipment availability and protection system health are tracked as KPIs.

System expansion is straightforward with the DS200RTBAG2AGL’s modular design. Additional relay terminal boards can be added to the Mark VI I/O rack without reconfiguring the control processor, allowing plant engineers to scale relay output capacity as new loads or protection circuits are commissioned. Every unit shipped by ZYPLC undergoes full functional testing — including relay coil energization, contact resistance measurement, and I/O bus communication verification — before dispatch, backed by a 12-month warranty and in-stock availability for immediate global shipment.

Industrial Connectivity FAQ

Q1: What communication protocol does the GE DS200RTBAG2AGL use to interface with the Mark VI control system?
The DS200RTBAG2AGL communicates with the Mark VI control processor via the proprietary GE IONet — a deterministic, Ethernet-based I/O network that provides real-time relay status feedback and command delivery with sub-millisecond latency. This ensures that protection relay commands are executed within the timing requirements of turbine trip and interlock logic.

Q2: Is the DS200RTBAG2AGL compatible with Mark VIe and Mark VIeS systems, or only the original Mark VI?
The DS200RTBAG2AGL is primarily designed for the GE Mark VI platform. Compatibility with Mark VIe or Mark VIeS architectures depends on the specific I/O rack configuration and terminal board interface standard used in your installation. ZYPLC’s technical team can verify cross-compatibility based on your system’s I/O pack and rack revision before shipment.

Q3: How does ZYPLC ensure the DS200RTBAG2AGL is fully functional before shipment?
Every DS200RTBAG2AGL unit undergoes a comprehensive pre-shipment test protocol that includes relay contact continuity testing, coil energization verification, I/O bus communication check, and visual inspection for component integrity. Units that pass all test criteria are issued a test report and shipped with a 12-month warranty covering both parts and workmanship defects.

Q4: Can the relay outputs of the DS200RTBAG2AGL be monitored in real time via SCADA or HMI?
Yes. When installed in a Mark VI system connected to an IONet-to-Ethernet gateway such as the IS215ACLEH1A, relay contact states are available as real-time data tags in the Mark VI toolbox software and can be published to OPC DA/UA servers for consumption by SCADA platforms including GE Cimplicity, Wonderware, and Ignition. This enables live relay status monitoring, alarm configuration, and historical trend logging without additional hardware.
