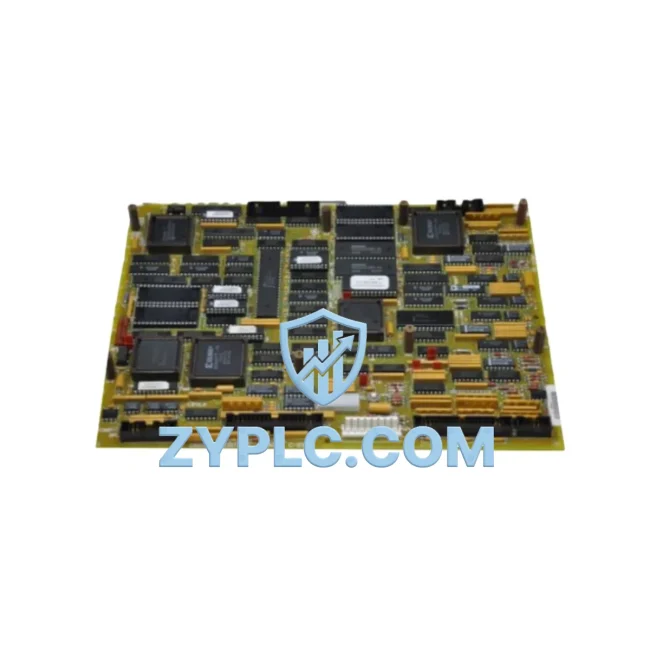

GE DS200SDCCG1AEB Energy-Saving Drive Control Card

GE DS200SDCCG1AEB Energy-Saving Drive Control Card for Optimized Mark VI Automation

The GE DS200SDCCG1AEB is a precision Drive Control Card engineered for GE’s Mark VI turbine and industrial automation control platforms. Designed to deliver accurate motor drive regulation, real-time feedback signal conditioning, and energy-aware command management, this card is a critical component in reducing unnecessary power consumption across continuous industrial production environments. Whether deployed in power generation, petrochemical processing, LNG compression, or heavy manufacturing, the DS200SDCCG1AEB enables operators to maintain tighter control over drive output, minimize reactive energy losses, and extend the operational lifespan of connected rotating equipment.

At ZYPLC, every DS200SDCCG1AEB unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty. Our inventory is maintained in-stock for rapid dispatch, supporting both planned maintenance cycles and emergency replacement scenarios with minimal lead time.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DS200SDCCG1AEB functions as a precision node within a broader Mark VI energy management architecture rather than operating in isolation. In a typical high-efficiency turbine or motor control installation, this card interfaces directly with the GE DS200SDCIG1AEB signal conditioning board, which pre-processes analog feedback from field sensors before passing clean, noise-free data to the drive control layer. Upstream, the GE IS200TTURH1CBB turbine control board coordinates overall system sequencing, ensuring that drive commands issued through the DS200SDCCG1AEB are synchronized with actual turbine load demand rather than running at fixed, energy-wasteful setpoints.

On the power distribution side, the GE DS200PCCAG1A power supply card provides stable, regulated voltage to the Mark VI I/O and control boards, preventing voltage sag events that would otherwise force drives to compensate with excess current draw — a hidden source of energy waste in aging control panels. Paired with the GE DS200IIBDG1A I/O interface board, the DS200SDCCG1AEB receives discrete and analog signals from field devices — including current transformers, speed encoders, and temperature sensors — enabling closed-loop drive adjustments that track actual load conditions rather than theoretical setpoints.

For facilities running multi-axis motor systems, the GE DS200DMCBG1AED digital motor control board works in tandem with the DS200SDCCG1AEB to coordinate torque and speed profiles across multiple drive channels simultaneously. This coordination is critical in applications such as compressor trains or multi-pump systems, where unbalanced drive loading leads to measurable energy waste and accelerated mechanical wear. The GE IS200VCRCH1BBB VME control card further extends system visibility by aggregating drive status data and forwarding it to the plant-level SCADA or DCS platform via the Mark VI communication backbone.

HMI integration is handled through the GE Cimplicity SCADA platform or compatible third-party HMI terminals connected via the Mark VI IONET network, giving operators real-time visibility into drive efficiency metrics, energy consumption trends, and fault diagnostics — all without requiring manual field inspection. For energy metering at the panel level, supplementary GE Multilin power monitoring relays can be integrated into the same control cabinet, providing per-phase energy data that feeds back into the optimization loop managed by the DS200SDCCG1AEB and its associated control cards. Together, these components form a tightly integrated, energy-aware automation architecture capable of delivering measurable reductions in kilowatt-hour consumption across the full production cycle.

Power Optimization in Real Production Lines

In continuous-process industries — gas turbine power plants, LNG compression facilities, and large-scale pumping stations — the DS200SDCCG1AEB delivers measurable energy efficiency gains by enabling the Mark VI system to modulate drive output in direct response to real-time load feedback. Rather than running drives at fixed speed or fixed torque, the card supports dynamic adjustment based on process demand signals, which translates directly into reduced kilowatt-hour consumption during partial-load operating periods that represent a significant portion of total annual runtime in most industrial facilities.

A common failure mode in aging drive control systems is signal drift — where degraded conditioning cards introduce noise or offset errors into the drive command chain, causing motors to run slightly above their optimal operating point. Over time, this seemingly minor inefficiency compounds into significant energy waste and increased thermal stress on motor windings and bearings. Replacing a degraded DS200SDCCG1AEB restores signal integrity, bringing drive output back into alignment with process requirements and reducing both energy consumption and unplanned maintenance frequency in a single corrective action.

From a production line rhythm perspective, the DS200SDCCG1AEB contributes to cycle time stability by ensuring that drive response to control commands is consistent and predictable. Inconsistent drive behavior — caused by faulty control cards — introduces variability into process timing, which forces operators to build in conservative safety margins that reduce overall equipment utilization rates. A properly functioning DS200SDCCG1AEB eliminates this variability, allowing production planners to tighten cycle times and improve throughput without additional capital investment in new equipment or expanded capacity.

Predictive maintenance programs also benefit directly from a healthy DS200SDCCG1AEB. When the card is functioning correctly, the Mark VI system can accurately track drive performance trends — motor current draw, speed deviation, thermal load — and flag anomalies before they escalate into unplanned downtime events. This capability reduces emergency maintenance costs and supports the shift from reactive to condition-based maintenance strategies that are central to modern industrial energy management programs. Facilities that have transitioned to predictive maintenance report significant reductions in both maintenance labor costs and energy consumption, as equipment is serviced at optimal intervals rather than on fixed schedules that often result in either over-maintenance or unexpected failures.

Energy Optimization FAQ

Q1: How does the DS200SDCCG1AEB contribute to energy savings in a Mark VI system?
The DS200SDCCG1AEB conditions and transmits drive control signals with high precision, enabling the Mark VI controller to modulate motor speed and torque in direct proportion to actual process demand. This eliminates the energy waste associated with fixed-speed drive operation and reduces reactive power losses that inflate electricity costs in industrial facilities running continuous-process equipment.

Q2: Is the DS200SDCCG1AEB compatible with all Mark VI configurations?
The DS200SDCCG1AEB is designed for GE Mark VI turbine and drive control systems. Compatibility depends on the specific Mark VI panel configuration and firmware revision in use at your facility. We recommend verifying your panel’s board layout and software version before ordering. Our technical team at ZYPLC can assist with compatibility confirmation prior to purchase at no additional cost.

Q3: What is the replacement and testing process for this card?
Each DS200SDCCG1AEB unit supplied by ZYPLC undergoes full functional testing before shipment, including signal output verification and communication integrity checks against Mark VI specifications. Replacement is performed with the Mark VI system in a controlled shutdown state, following GE’s standard board swap procedure. Post-installation, the Mark VI diagnostic suite should be used to verify drive signal calibration and confirm normal operation before returning the system to service.

Q4: What warranty coverage is provided, and what does it include?
All DS200SDCCG1AEB units sold by ZYPLC are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair at no additional cost. Warranty claims are processed directly through ZYPLC’s after-sales support team with priority handling for production-critical applications.
