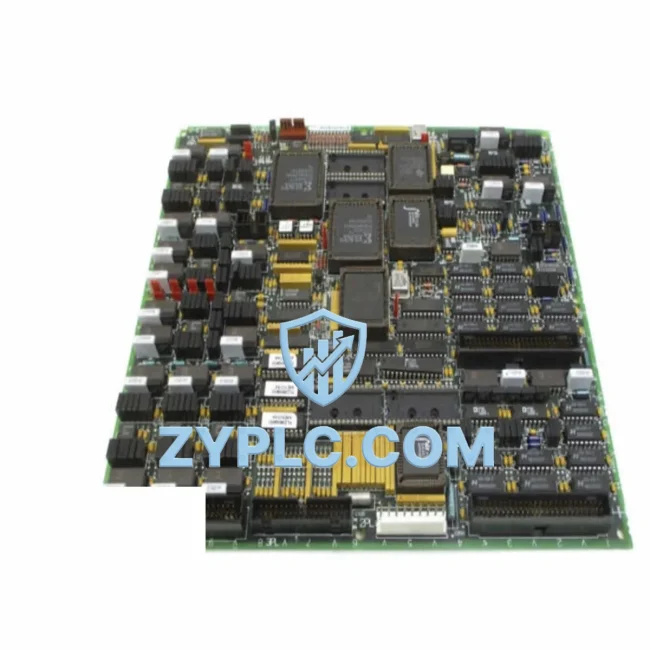

GE DS200TCCBG1AKC System-Ready Controller Board for Speedtronic Architecture

GE DS200TCCBG1AKC System-Ready Controller Board for Speedtronic Architecture

The GE DS200TCCBG1AKC is a turbine control circuit board engineered for deployment within GE’s Speedtronic Mark V and Mark VI control platform architectures. In modern industrial automation environments — spanning power generation, oil & gas processing, petrochemical facilities, and heavy manufacturing — the integrity of the turbine control layer is foundational to system-wide reliability. The DS200TCCBG1AKC occupies a critical position within this control hierarchy, serving as a dedicated processing and signal coordination board that interfaces directly with the turbine’s operational logic, I/O signal chains, and inter-module communication buses.

Unlike standalone components evaluated in isolation, the DS200TCCBG1AKC is best understood through its role in a complete, layered control system. Its design supports seamless Contextual Integration across the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer — enabling engineers to maintain system coherence during both commissioning and long-term operation. Whether deployed in a simplex configuration or as part of a TMR (Triple Modular Redundancy) architecture, this board contributes to the fault-tolerance and signal fidelity that turbine-critical applications demand.

With a 12-Month Warranty and verified compatibility within GE Speedtronic system racks, the DS200TCCBG1AKC is a dependable choice for OEM replacement, system expansion, and spare parts inventory management across global industrial sites.

Architecture Specification Table

Coordinated Control System Design

The DS200TCCBG1AKC does not operate as an isolated component — it functions as an integral node within a coordinated Speedtronic control architecture. In a typical Mark V or Mark VI turbine control panel, this board works in concert with a range of companion modules and system components to deliver complete turbine management capability.

At the control processing layer, the DS200TCCBG1AKC coordinates with the DS200TCQBG1BHF (Turbine Control Quad Board) and the DS200SDCCG1AFB (System Dynamic Control Card) to manage real-time turbine sequencing, speed control, and protective trip logic. The DS200IOCAG1A I/O controller board handles analog and digital signal marshalling, ensuring that field sensor inputs — thermocouples, pressure transmitters, vibration probes — are accurately routed to the processing layer where the DS200TCCBG1AKC performs its control functions.

Power integrity across the rack is maintained by the DS200PCCAG1A Power Control Card, which regulates backplane voltage distribution to all installed boards including the DS200TCCBG1AKC. Stable, conditioned power is a prerequisite for consistent board-level performance, particularly in environments subject to load fluctuations or grid instability.

For network and communication continuity, the Speedtronic architecture typically incorporates the DS200TCDAG1AHD (Turbine Control Data Acquisition Board) and communication gateway modules that bridge the turbine control panel to plant-level DCS networks or SCADA systems via Modbus, Profibus, or proprietary GE protocols. The DS200TCCBG1AKC’s internal bus interface ensures it remains synchronized with these communication layers without introducing latency into the control loop.

At the HMI layer, operator workstations running GE’s Cimplicity or ToolboxST engineering software interface with the Mark VI controller to provide real-time turbine status visualization, alarm management, and parameter configuration — all dependent on the reliable signal processing that the DS200TCCBG1AKC provides. Terminal boards such as the DS200TBCBG1AAB serve as the physical I/O termination point, connecting field wiring to the rack’s internal signal paths and completing the loop from sensor to controller to actuator.

In redundant architectures, the DS200TCCBG1AKC may be deployed in triplicated configurations alongside identical boards in the R, S, and T controller slots, with the DS200TCRAG1AHF (Turbine Control Relay Board) managing output voting logic to ensure that actuator commands — fuel control valves, inlet guide vanes, bypass valves — are only executed when a majority of redundant controllers agree. This TMR design eliminates single-point failures at the control layer and is a standard requirement in gas turbine applications for power generation and pipeline compression.

Application in Layered Automation Systems

The DS200TCCBG1AKC finds application across a broad spectrum of industrial sectors where GE Speedtronic turbine control systems are deployed:

Power Generation: In combined-cycle and simple-cycle gas turbine power plants, the DS200TCCBG1AKC is a core component of the turbine control panel responsible for startup sequencing, load control, and protective shutdown. Its reliable operation directly impacts plant availability and grid dispatch capability.

Oil & Gas and Petrochemical: Offshore platforms, LNG terminals, and refinery compressor trains rely on GE Speedtronic-controlled gas turbines for mechanical drive applications. The DS200TCCBG1AKC supports the precise speed and load control required for compressor anti-surge protection and process stability in these high-consequence environments.

Pipeline Compression: Natural gas transmission pipelines use GE turbine-driven compressor stations controlled by Speedtronic Mark V and Mark VI systems. The DS200TCCBG1AKC’s role in maintaining control loop integrity is essential for meeting pipeline throughput targets and regulatory compliance.

Industrial Cogeneration and District Energy: Manufacturing facilities and district energy systems operating GE turbines for combined heat and power (CHP) applications depend on Speedtronic control boards for continuous, unattended operation. The DS200TCCBG1AKC supports the long mean-time-between-failure (MTBF) requirements of these always-on installations.

Mining and Metals: Large mining operations and smelting facilities that use gas turbine generators for remote power supply benefit from the DS200TCCBG1AKC’s compatibility with harsh electrical environments and its support for redundant control architectures that minimize unplanned downtime.

Architecture Engineering FAQ

Q1: Is the DS200TCCBG1AKC compatible with both Mark V and Mark VI Speedtronic systems, and can it be used as a direct replacement in an existing rack?
The DS200TCCBG1AKC is designed for the GE Speedtronic DS200 series platform, which spans Mark V and certain Mark VI configurations. As a direct replacement, it should be installed in the same rack slot as the original board, with firmware and configuration parameters verified against the existing system baseline using GE’s ToolboxST or equivalent engineering software. Always confirm the board revision suffix (G1AKC) matches the system’s hardware compatibility matrix before installation. Our technical team can assist with pre-shipment compatibility verification.

Q2: How does the DS200TCCBG1AKC support redundant (TMR) architectures, and what companion boards are required for a complete redundant control configuration?
In a TMR configuration, three DS200TCCBG1AKC boards are installed in the R, S, and T controller positions within the Speedtronic panel. The system’s voting logic — managed by relay and output boards such as the DS200TCRAG1AHF — compares outputs from all three controllers and executes actuator commands based on majority agreement. Supporting components including the DS200IOCAG1A I/O board, DS200PCCAG1A power card, and DS200TBCBG1AAB terminal board must also be present and correctly configured to complete the redundant architecture. ZYPLC can supply matched sets of these components to simplify system build-out.

Q3: What does the 12-Month Warranty cover, and what support is available for installation, commissioning, and long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC provides pre-shipment functional testing, documentation of test results, and technical support during installation and commissioning. For long-term maintenance planning, we recommend maintaining a minimum of one spare DS200TCCBG1AKC per turbine unit to ensure rapid swap capability during unplanned outages. Our global logistics network supports expedited delivery to minimize turbine downtime. Contact our engineering team at [email protected] or +86 19859288691 for system-specific support.
