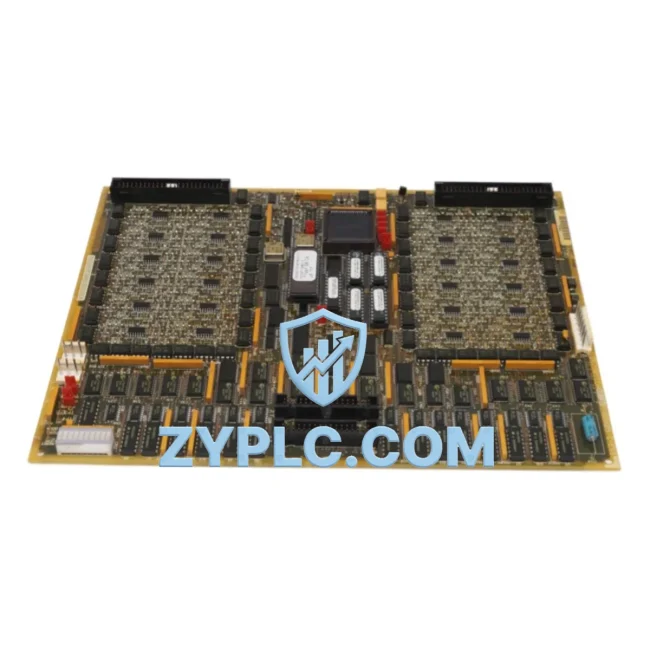

The GE DS200TCDAF1BCM is a factory-programmed EPROM set engineered specifically for the SPEEDTRONIC Mark V turbine control platform — one of GE’s most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities. Rather than functioning as a standalone component, the DS200TCDAF1BCM occupies a critical firmware layer within the Mark V control hierarchy, enabling the processor boards to execute turbine sequencing logic, protective relay coordination, and real-time I/O scanning with the precision demanded by continuous industrial operation. Understanding its role within the broader system architecture is essential for engineers responsible for long-term plant reliability and control system lifecycle management.

In the SPEEDTRONIC Mark V architecture, control authority is distributed across three redundant processor panels — , , and — each running identical firmware to support triple modular redundancy (TMR) voting logic. The DS200TCDAF1BCM EPROM set resides within the TCDA board assembly and carries the executable firmware that governs turbine startup sequences, speed control algorithms, temperature protection curves, and inter-panel communication protocols. When one panel’s EPROM set becomes corrupted or version-mismatched, the TMR voting system may flag discrepancies, triggering protective shutdowns or degraded control modes. Replacing the DS200TCDAF1BCM with a correctly versioned, tested set restores firmware parity across all three panels and re-establishes full TMR integrity.

Architecture Specification Table

Coordinated Control System Design

The DS200TCDAF1BCM does not operate in isolation — its firmware instructions are the connective tissue that binds together every functional layer of the SPEEDTRONIC Mark V control system. At the processor level, the TCDA board on which this EPROM set is installed works in concert with the DS200TCQAG1BHF I/O terminal board, which aggregates field signals from thermocouples, pressure transmitters, and speed pickups before routing them to the processor for real-time evaluation. The firmware encoded in the DS200TCDAF1BCM defines exactly how those signals are interpreted, scaled, and acted upon within each control scan cycle.

Power integrity for the Mark V panels is maintained by the DS200TCPSG1A power supply board, which delivers regulated DC voltages to the processor, I/O, and communication subsystems. A firmware fault caused by a degraded EPROM set can manifest as erratic behavior that is often misdiagnosed as a power supply issue — making EPROM version verification a critical first step in any Mark V troubleshooting workflow. Similarly, the DS200TCEAG1B communication board manages the IONet LAN that interconnects the Mark V panels with the operator interface and remote I/O racks; the DS200TCDAF1BCM firmware must be version-compatible with the communication board’s protocol stack to ensure deterministic data exchange across the control network.

At the human-machine interface layer, the Mark V HMI workstation (typically running GE’s CIMPLICITY or the legacy Mark V operator panel) relies on structured data packets generated by the processor firmware to display real-time turbine parameters, alarm states, and trend data. An EPROM set mismatch between panels can corrupt these data streams, producing misleading HMI readings that complicate operator decision-making during critical startup or load-change events. Restoring firmware consistency with a correctly versioned DS200TCDAF1BCM eliminates this source of diagnostic ambiguity.

For plants that have integrated the Mark V with modern distributed control systems via gateway hardware such as the DS200SLCCG1AFG serial link communication card or third-party Modbus/OPC gateways, firmware version alignment is equally important. The DS200TCDAF1BCM firmware governs the serial communication parameters — baud rate, data framing, and register mapping — that the gateway relies upon to bridge the Mark V’s proprietary protocol with plant-wide SCADA or DCS platforms. Mismatched firmware versions across the TMR panels can cause intermittent communication dropouts that are difficult to trace without a systematic firmware audit.

Downstream in the execution layer, the Mark V’s output logic — controlling gas control valves, inlet guide vane actuators, lube oil pumps, and cooling fans — is sequenced entirely by the firmware running on the TCDA board. The DS200TCRAG1A relay output board and associated terminal boards execute the discrete output commands generated by the DS200TCDAF1BCM firmware. Ensuring that the EPROM set is correctly programmed and free of bit-level corruption is therefore a prerequisite for reliable actuator coordination during turbine startup, load rejection, and emergency shutdown sequences.

Application in Layered Automation Systems

The DS200TCDAF1BCM finds its most critical application in power generation facilities operating GE Frame 5, Frame 6, Frame 7, and Frame 9 gas turbines, as well as steam turbines equipped with the SPEEDTRONIC Mark V control platform. In combined-cycle plants, where gas turbine and steam turbine control systems must coordinate heat recovery steam generator (HRSG) bypass valves and steam admission sequences, firmware consistency across all Mark V panels is a non-negotiable reliability requirement. A single panel running a mismatched EPROM version can disrupt the TMR voting consensus, forcing the plant into a single-channel control mode that eliminates the redundancy margin designed to prevent unplanned outages.

In petrochemical and refinery applications, SPEEDTRONIC Mark V systems are deployed on gas compressor trains and process gas turbines where continuous operation is essential for maintaining pipeline pressure and process throughput. Planned maintenance windows in these environments are measured in hours, not days, making pre-verified, ready-to-install EPROM sets like the DS200TCDAF1BCM an essential component of the site’s spare parts strategy. Having a tested, warranted EPROM set on the shelf eliminates the lead time associated with sourcing and programming replacement firmware during an unplanned outage.

For mining and minerals processing operations running large gas turbine generator sets to power grinding mills, hoisting equipment, and ventilation systems, the Mark V’s protective relay logic — encoded in the DS200TCDAF1BCM firmware — provides the first line of defense against over-speed, over-temperature, and loss-of-flame events. Maintaining firmware integrity across all three TMR panels ensures that protective trips are executed consistently and that nuisance trips caused by voting discrepancies are eliminated. The 12-Month Warranty provided with each DS200TCDAF1BCM set gives maintenance engineers the confidence to install replacement firmware without the risk of introducing additional reliability liabilities.

In water and wastewater treatment facilities that use gas turbine-driven generators for on-site power generation or cogeneration, the Mark V platform’s long service life means that EPROM sets may require replacement due to data retention degradation in aging EPROM devices — a well-documented failure mode in UV-erasable EPROM technology. Proactive EPROM replacement as part of a scheduled control system lifecycle program is a cost-effective strategy for preventing firmware-related control failures before they result in process upsets or regulatory compliance events.

Architecture Engineering FAQ

Q1: How do I verify that the DS200TCDAF1BCM is compatible with my specific Mark V panel revision and firmware baseline?
Compatibility is determined by the firmware revision label printed on the EPROM chips and the corresponding Mark V software release documented in your site’s control system configuration record (CSCR). The DS200TCDAF1BCM must match the firmware baseline of all three TMR panels — R, S, and T — to maintain voting consensus. Before installation, cross-reference the part number suffix (F1BCM) against your CSCR and the GE Mark V Application Manual (GEH-6195) to confirm version alignment. If your CSCR is unavailable, our technical team can assist with version identification based on your turbine model and commissioning date.

Q2: Can the DS200TCDAF1BCM be installed without taking the turbine offline, and what are the recommended installation procedures?
EPROM replacement on the TCDA board requires the affected panel to be powered down and isolated from the TMR voting bus. In a fully operational TMR system, one panel can be taken offline for maintenance while the remaining two panels maintain dual-channel control — provided that the plant’s operating procedures permit reduced-redundancy operation. The installation procedure involves removing the TCDA board from the Mark V panel, extracting the existing EPROM devices from their DIP sockets using an appropriate extraction tool, inserting the new DS200TCDAF1BCM devices in the correct orientation, and verifying firmware checksum integrity via the Mark V diagnostic terminal before returning the panel to service. Full TMR voting restoration should be confirmed via the Mark V status display before returning the turbine to normal operation.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term system reliability?
The 12-Month Warranty covers the DS200TCDAF1BCM against defects in programming, data retention failure, and physical component integrity from the date of shipment. Each EPROM set is tested prior to dispatch to verify correct firmware content and bit-level data integrity. Contextual Integration refers to our pre-shipment verification process, in which the DS200TCDAF1BCM is validated against the known firmware baseline for the SPEEDTRONIC Mark V platform — ensuring that the delivered set is not only electrically functional but architecturally compatible with your control system’s existing software environment. This reduces commissioning risk and eliminates the trial-and-error firmware verification steps that can extend planned maintenance windows.
