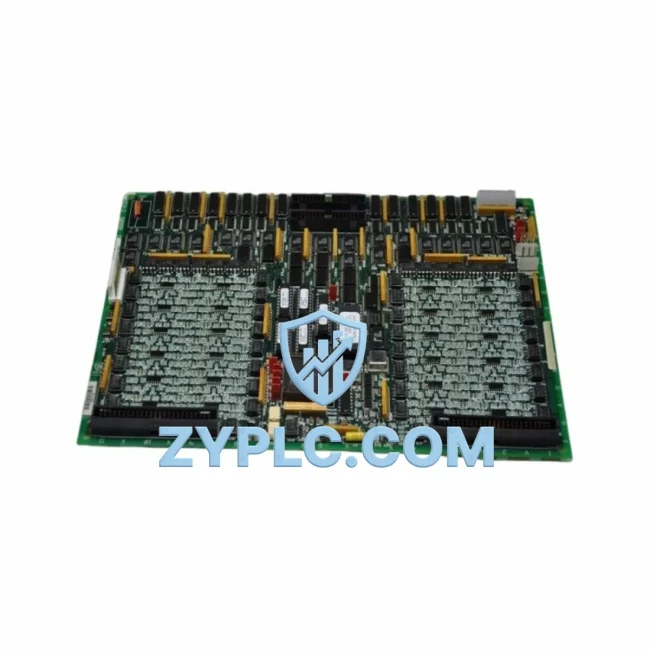

GE DS200TCDAG1BDB System-Ready Turbine Control for Mark V Architecture

GE DS200TCDAG1BDB System-Ready Turbine Control for Mark V Architecture: Control System Architecture and Upstream-Downstream Coordination

The GE DS200TCDAG1BDB is a high-integrity turbine control module engineered for seamless deployment within the GE Mark V Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module is purpose-built to operate as a coordinated node within a multi-layer automation hierarchy — spanning the control layer, I/O layer, network layer, power layer, human-machine interface (HMI) layer, and actuator execution layer. Its role within the Mark V platform is to ensure signal fidelity, command execution reliability, and system-wide consistency across turbine-driven processes in power generation, petrochemical, and heavy industrial environments.

In a complete Mark V control architecture, the DS200TCDAG1BDB interfaces directly with the DS200TCQAG1BDB (Quad Core Processor Board) and the DS200TCEAG1BDB (Excitation Control Board), forming the core computational and signal-conditioning backbone of the turbine protection and sequencing system. The module’s analog and digital I/O channels are mapped through the DS200SDCIG2AEB (Signal Distribution Card) and routed to field devices via the DS200TBCBG1AAA terminal board assembly, ensuring clean signal paths from sensor to controller without cross-channel interference.

At the network layer, the DS200TCDAG1BDB participates in the Mark V’s proprietary ARCNET communication bus, synchronizing real-time data with peer controllers including the DS200TCRAG1BDB (Redundancy Control Module) and the DS200TCCAG1BDB (Communication Controller Board). This tri-redundant architecture — a hallmark of the Mark V platform — ensures that any single-point failure in the control path is automatically compensated by the remaining redundant controllers, maintaining continuous turbine operation without manual intervention.

Power integrity for the DS200TCDAG1BDB is supplied through the DS200DCFBG1BDB DC/DC Converter Board, which conditions and isolates the 28VDC bus feeding the control electronics. This power architecture prevents voltage transients from field wiring from propagating into the processor domain, a critical design consideration in high-vibration turbine environments. The module’s low power consumption profile also supports extended MTBF (Mean Time Between Failures), reducing unplanned outages in continuous-duty applications.

From the HMI layer, operators interact with the Mark V system through the GE Cimplicity SCADA platform or legacy Mark V LM operator workstations, which display real-time turbine parameters sourced directly from the DS200TCDAG1BDB’s processed outputs. Alarm management, trend logging, and sequence-of-events (SOE) recording are all coordinated through this data path, giving operations teams full visibility into turbine health and control status without requiring direct access to the control cabinet.

At the execution layer, the DS200TCDAG1BDB drives actuator commands to servo valves, fuel control valves, and inlet guide vane actuators through the DS200VPBLG1AEE (Valve Position Board), translating digital control outputs into precise analog positioning signals. This closed-loop execution path — from sensor input through the DS200TCDAG1BDB to final actuator — is the operational core of turbine speed governing, load control, and protective trip sequencing.

The module supports Contextual Integration within the Mark V architecture, meaning it can be introduced into an existing control system without requiring firmware re-flashing of peer modules or reconfiguration of the ARCNET node table, provided the replacement unit carries a compatible firmware revision. This characteristic significantly reduces commissioning time during scheduled maintenance outages and minimizes the risk of configuration drift between redundant controllers.

From a long-term maintenance perspective, the DS200TCDAG1BDB is a high-demand spare in aging Mark V fleets operating beyond their original design life. Facilities running GE Frame 6, Frame 7, and Frame 9 gas turbines — as well as steam turbine applications using the Mark V platform — benefit from maintaining at least one tested spare of this module in their critical spares inventory. ZYPLC supplies this module with full functional testing, 12-Month Warranty coverage, and documented test records to support maintenance planning and regulatory compliance requirements.

Architecture Specification Table

Coordinated Control System Design

The DS200TCDAG1BDB achieves its full operational value only when viewed within the context of the complete Mark V control system. A properly configured Mark V TMR (Triple Modular Redundancy) system integrating this module will typically include the following coordinated components:

• DS200TCQAG1BDB — Quad Core Processor Board: the primary computational engine that executes turbine control algorithms and communicates voted outputs to the DS200TCDAG1BDB for signal conditioning and distribution.
• DS200TCRAG1BDB — Redundancy Control Module: manages the TMR voting logic between the three redundant control paths, ensuring that the DS200TCDAG1BDB’s outputs are cross-validated before actuator commands are issued.
• DS200TCCAG1BDB — Communication Controller Board: handles ARCNET bus arbitration and inter-module data exchange, maintaining synchronization between the DS200TCDAG1BDB and peer control boards.
• DS200SDCIG2AEB — Signal Distribution Card: routes analog and digital signals between the DS200TCDAG1BDB and the terminal board assemblies connected to field instrumentation.
• DS200TBCBG1AAA — Terminal Board Assembly: provides the physical I/O termination point for field wiring, interfacing sensors, transmitters, and actuators to the DS200TCDAG1BDB signal paths.
• DS200DCFBG1BDB — DC/DC Converter Board: conditions and isolates the 28VDC power supply feeding the DS200TCDAG1BDB and associated control electronics.
• DS200VPBLG1AEE — Valve Position Board: translates digital control commands from the DS200TCDAG1BDB into analog positioning signals for servo and fuel control valves.
• DS200TCEAG1BDB — Excitation Control Board: coordinates generator excitation control with turbine speed and load signals processed by the DS200TCDAG1BDB.

This coordinated architecture ensures that the DS200TCDAG1BDB operates not as an isolated replacement part, but as a fully integrated node within a validated control system — maintaining signal integrity, redundancy voting accuracy, and actuator response fidelity across the entire turbine control loop.

Application in Layered Automation Systems

Power Generation: In gas turbine combined-cycle power plants operating GE Frame 7FA or Frame 9E units, the DS200TCDAG1BDB serves as the primary signal conditioning and I/O distribution module within the Mark V TMR control system. It processes speed pickup signals, exhaust thermocouple arrays, compressor inlet pressure transmitters, and fuel valve position feedback — all critical inputs for turbine speed governing, load dispatch, and protective trip logic. Facilities operating in grid-connected baseload or peaking service rely on the DS200TCDAG1BDB’s signal accuracy to maintain frequency response compliance and prevent nuisance trips during load transients.

Petrochemical & Refinery: In refinery and petrochemical plant applications, the DS200TCDAG1BDB is deployed within Mark V systems controlling mechanical-drive steam turbines driving compressors, pumps, and blowers in continuous process service. The module’s ability to maintain signal integrity in high-vibration, high-temperature environments — common in turbine buildings adjacent to process units — makes it a preferred choice for facilities requiring high availability and minimal unplanned downtime. Its Contextual Integration capability allows maintenance teams to replace the module during short turnaround windows without disrupting the broader control system configuration.

Water Treatment & Utilities: Municipal water treatment facilities and industrial utility plants using steam turbine-driven pumping systems benefit from the DS200TCDAG1BDB’s long service life and compatibility with the Mark V platform’s extended support ecosystem. The module’s 12-Month Warranty and documented functional testing provide the procurement and maintenance documentation required for regulated utility environments.

Mining & Metals: In mining and metallurgical applications where turbine-driven compressors and blowers support smelting, ore processing, and ventilation systems, the DS200TCDAG1BDB’s robust signal conditioning capabilities ensure reliable control even in environments with significant electrical noise from variable-frequency drives, arc furnaces, and high-current bus systems.

Architecture Engineering FAQ

Q1: Is the DS200TCDAG1BDB compatible with both TMR and Simplex Mark V configurations?
Yes. The DS200TCDAG1BDB is compatible with both Triple Modular Redundancy (TMR) and Simplex Mark V configurations. In TMR systems, three instances of the module operate in parallel with voted outputs managed by the DS200TCRAG1BDB Redundancy Control Module. In Simplex configurations, a single DS200TCDAG1BDB handles all signal conditioning and I/O distribution functions. Firmware revision compatibility should be verified against the existing system’s software baseline prior to installation — ZYPLC’s technical team can assist with revision matching as part of the pre-shipment verification process.

Q2: What is required to commission the DS200TCDAG1BDB as a replacement in an existing Mark V system?
Commissioning a replacement DS200TCDAG1BDB in an existing Mark V system typically requires: (1) verification of firmware revision compatibility with the existing ARCNET node configuration; (2) confirmation that the replacement module’s hardware revision matches or supersedes the original; (3) a controlled power-down of the affected control path (in TMR systems, the remaining two paths maintain turbine control during replacement); and (4) post-installation functional verification of all analog and digital I/O channels through the Mark V diagnostic toolset. ZYPLC supplies each DS200TCDAG1BDB with a functional test report to support commissioning documentation requirements.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term spare parts planning?
ZYPLC’s 12-Month Warranty covers functional failure of the DS200TCDAG1BDB under normal operating conditions, including defects identified during installation and commissioning. The warranty period begins from the date of shipment. For long-term spare parts planning, ZYPLC maintains inventory of DS200TCDAG1BDB and associated Mark V modules — including the DS200TCQAG1BDB, DS200TCRAG1BDB, DS200SDCIG2AEB, and DS200TBCBG1AAA — to support facilities managing aging Mark V fleets. Contact ZYPLC at [email protected] or +86 19859288691 to discuss critical spares agreements and lead time commitments.
