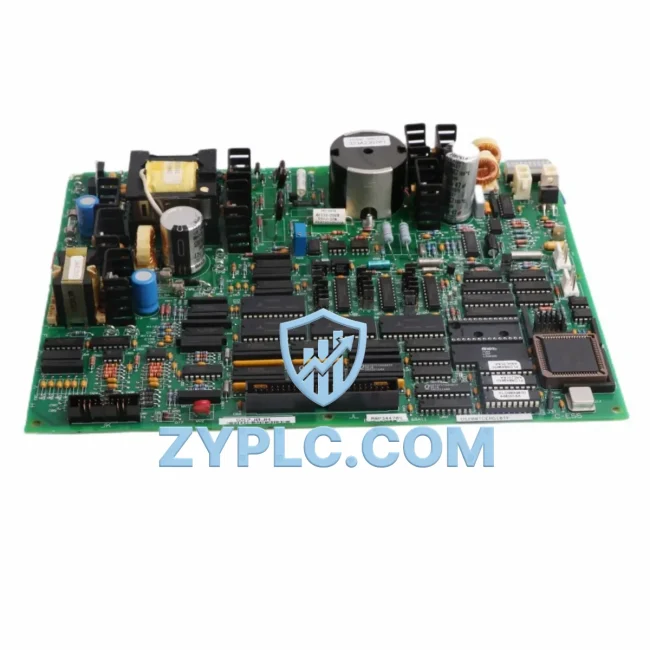

GE DS200TCEAG1 System-Ready Turbine Control Board for DS200 Architecture

GE DS200TCEAG1 System-Ready Turbine Control Board: Control System Architecture and Upstream-Downstream Coordination

The GE DS200TCEAG1 is a turbine control excitation board engineered for deployment within the GE Mark VI distributed control platform. Rather than functioning as a standalone component, the DS200TCEAG1 occupies a critical position within a layered automation architecture — bridging the control layer, I/O layer, and power management layer to deliver consistent, high-reliability turbine excitation control across demanding industrial environments. Understanding its role within the full system hierarchy is essential for engineers designing, commissioning, or maintaining gas turbine, steam turbine, or combined-cycle power generation systems.

Architecture Specification Table

Coordinated Control System Design

The DS200TCEAG1 does not operate in isolation. Its value is fully realized when integrated within a coherent Mark VI control architecture. In a typical turbine control system, the DS200TCEAG1 works in close coordination with the DS200TCQAG1 (turbine control quad board) and the DS200TCRAG1 (turbine control relay board), forming the core of the excitation and protection signal chain. These boards share the same DS200 rack backplane, enabling low-latency inter-board communication that is essential for real-time turbine response.

At the power layer, the DS200VPBLG1 power supply board provides regulated DC power to the entire DS200 rack, ensuring that the DS200TCEAG1 receives stable voltage even during grid disturbances or load transients. Upstream, the IS215UCVEH2A Mark VI controller (UCVE) serves as the primary CPU module, executing turbine control logic and issuing commands to the DS200TCEAG1 via the IONet communication backbone. The IONet architecture supports deterministic data exchange between the controller and I/O boards, which is critical for excitation control timing.

For I/O expansion and signal conditioning, the DS200IOCAG1 I/O controller board manages analog and digital signal routing between field instruments — including speed sensors, temperature transmitters, and flame detectors — and the Mark VI control layer. The DS200SDCIG1 serves as a signal distribution board, ensuring clean signal paths from field devices to the DS200TCEAG1 and associated control boards. In redundant architectures, the IS215ACLEH1A analog control board provides additional signal processing capacity, supporting TMR configurations where three independent control paths vote on turbine state before issuing actuation commands.

At the human-machine interface layer, the IS420UCSCH1A Mark VI HMI communication board connects the control system to operator workstations running GE’s ToolboxST configuration software, enabling real-time monitoring of excitation parameters, alarm management, and control loop tuning without interrupting turbine operation. For network integration, the IS215ECSAH1A Ethernet communication board extends Mark VI connectivity to plant-level SCADA systems and DCS networks, supporting Modbus TCP and OPC-DA protocols for data historian integration.

This coordinated architecture ensures that the DS200TCEAG1 contributes not only to excitation control accuracy but also to overall system redundancy, fault tolerance, and long-term maintainability — all of which are non-negotiable requirements in power generation and heavy industrial applications.

Application in Layered Automation Systems

The GE DS200TCEAG1 finds its primary application in power generation facilities operating GE Frame 6, Frame 7, and Frame 9 gas turbines, as well as steam turbine installations in combined-cycle plants. In these environments, the board manages excitation control signals that directly influence generator voltage regulation and reactive power output — functions that must remain stable across the full operating range of the turbine.

In the electric power sector, the DS200TCEAG1 is deployed in grid-connected generation units where excitation system reliability directly impacts grid stability. Utilities operating aging Mark V or Mark IV systems frequently upgrade to Mark VI architecture, retaining DS200 series boards such as the DS200TCEAG1 to preserve investment in existing rack infrastructure while gaining the diagnostic and communication advantages of the newer platform.

In petrochemical and refinery applications, the DS200TCEAG1 supports gas turbine-driven compressor trains where continuous operation is mandatory. The board’s compatibility with TMR redundancy configurations means that a single board fault does not interrupt compressor operation — the remaining two control paths maintain full authority until the faulty board is replaced during a planned maintenance window.

In water treatment and municipal utility applications, turbine-driven pump stations rely on Mark VI systems for long-term, low-maintenance operation. The DS200TCEAG1’s robust design and compatibility with GE’s ControlST diagnostic suite allow maintenance teams to perform remote health checks, reducing the need for on-site intervention and extending mean time between failures.

Mining and metallurgical operations running large synchronous motors or turbine-driven blowers also benefit from the DS200TCEAG1’s excitation control precision, particularly in applications where motor starting transients must be carefully managed to protect both the drive system and the upstream power distribution network.

Architecture Engineering FAQ

Q1: Is the DS200TCEAG1 compatible with both Mark VI and Mark VIe control platforms?
The DS200TCEAG1 is designed for the GE Mark VI platform and the DS200 series rack architecture. While the Mark VIe platform shares some architectural concepts with Mark VI, it uses a different I/O module form factor (IS200 series) and communication protocol. Direct installation of DS200 series boards into a Mark VIe rack is not supported without appropriate interface hardware. Engineers planning a Mark VI to Mark VIe migration should consult GE’s migration guide and verify board compatibility before procurement. ZYPLC’s technical team can assist with compatibility assessment prior to order placement.

Q2: How does the DS200TCEAG1 support long-term maintenance in a TMR redundancy architecture?
In a Triple Modular Redundancy configuration, the DS200TCEAG1 operates as one of three parallel control paths. The Mark VI controller continuously compares outputs from all three paths and flags discrepancies, allowing maintenance teams to identify a degraded board before it causes a system fault. Because the remaining two paths maintain control authority, the faulty DS200TCEAG1 can be replaced online — without turbine shutdown — during a scheduled maintenance window. ZYPLC maintains stock of DS200TCEAG1 boards specifically to support rapid replacement in TMR systems, minimizing the time a redundant architecture operates in a degraded state. All replacement boards are covered by a 12-Month Warranty from the date of shipment.

Q3: What commissioning steps are required when installing a replacement DS200TCEAG1?
Replacing a DS200TCEAG1 in an operational Mark VI system requires several commissioning steps to ensure correct system integration. First, the replacement board must be configured using GE’s ToolboxST software to match the I/O configuration, excitation parameters, and control loop settings of the original board. Second, the board’s firmware version should be verified against the system’s baseline configuration to prevent version mismatch faults. Third, after physical installation into the DS200 rack backplane, a system diagnostic scan should be performed to confirm that the Mark VI controller recognizes the new board and that all IONet communication paths are active. ZYPLC provides pre-shipment functional testing on all DS200TCEAG1 boards and can supply configuration documentation to support on-site commissioning. The 12-Month Warranty covers both the board hardware and any latent defects identified during the commissioning process.
