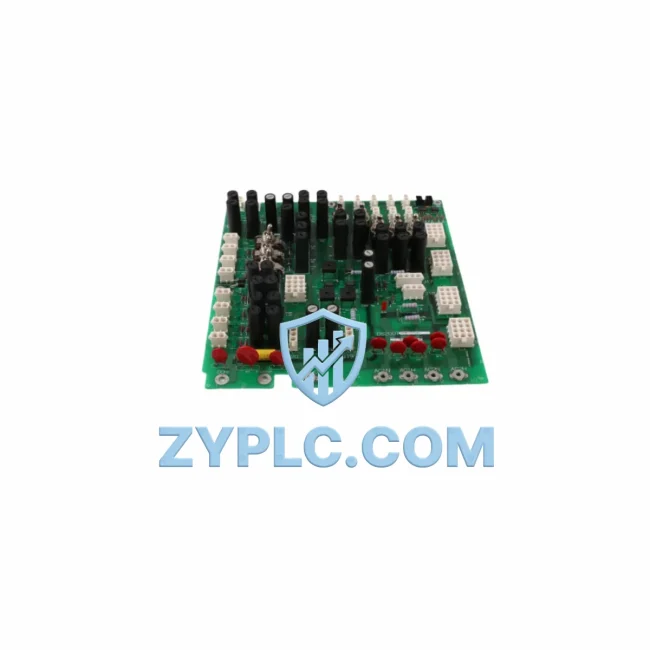

GE DS200TCPDG1BEC System-Ready TCP Board for Speedtronic Architecture

GE DS200TCPDG1BEC System-Ready TCP Board for Speedtronic Architecture

The GE DS200TCPDG1BEC is a Turbine Control Processor (TCP) board engineered for deployment within GE’s Speedtronic Mark V and Mark VI turbine control platforms. As a core computational module within the control layer, this board governs the real-time execution of turbine sequencing logic, protective relay coordination, and cross-system signal arbitration. Its role is not isolated — it functions as the architectural backbone that synchronizes upstream process inputs with downstream actuator commands, ensuring that every layer of the control hierarchy operates with precision and determinism.

In a fully integrated Speedtronic control system, the DS200TCPDG1BEC interfaces directly with I/O terminal boards such as the DS200TCQAG1B and DS200TCEAG1B, which aggregate field-level analog and discrete signals from thermocouples, pressure transmitters, and proximity probes. These signals are conditioned and routed to the TCP board for real-time processing, enabling the control system to respond to turbine state changes within milliseconds. The board’s processing architecture supports deterministic scan cycles, which is a non-negotiable requirement in gas turbine, steam turbine, and combined-cycle power generation environments.

At the network layer, the DS200TCPDG1BEC communicates with the Mark VI controller cabinet via the IONET high-speed serial communication backbone, coordinating with companion boards such as the DS200SLCCG1A (Serial Link Communication Card) and the IS200TREGH1B (Turbine Regulation and Excitation Gateway). This multi-board communication architecture ensures that the TCP board’s control outputs are synchronized with excitation control, load sharing logic, and protective trip functions across the full turbine train. The result is a tightly coupled control architecture that eliminates timing ambiguity between protection and regulation functions.

From a power layer perspective, the DS200TCPDG1BEC is designed to operate within the regulated DC power distribution environment of the Mark V/VI cabinet, receiving conditioned 28 VDC supply from the DS200PCCAG1B or equivalent power conditioning board. Stable power delivery is critical for maintaining the board’s volatile memory integrity and ensuring that control logic execution is never interrupted by transient supply fluctuations. The board’s internal power management circuitry provides additional filtering against high-frequency noise common in industrial switchgear environments.

At the human-machine interface layer, operator interaction with the DS200TCPDG1BEC’s control outputs is typically mediated through GE’s Cimplicity HMI platform or the Mark VI Toolbox engineering workstation. Maintenance engineers use these interfaces to monitor real-time scan cycle performance, review alarm histories, and perform online parameter adjustments without interrupting turbine operation. This non-intrusive diagnostic capability significantly reduces planned maintenance windows and supports condition-based maintenance strategies.

In redundant control architectures — a standard requirement in critical power generation and petrochemical applications — the DS200TCPDG1BEC is deployed in TMR (Triple Modular Redundancy) or dual-redundant configurations alongside companion TCP boards. The TMR architecture uses voting logic to compare outputs from three independent processing channels, ensuring that a single board failure does not result in a spurious trip or loss of control. This redundancy model is particularly valued in combined-cycle power plants, LNG compression trains, and offshore platform turbine systems where unplanned downtime carries significant financial and safety consequences.

For system integrators and maintenance engineers managing long-term turbine fleet operations, the availability of a tested and verified DS200TCPDG1BEC is a critical supply chain consideration. Aging Speedtronic Mark V systems — many of which have been in continuous service for over two decades — depend on the availability of original-specification replacement boards to avoid costly control system upgrades. ZYPLC maintains verified inventory of the DS200TCPDG1BEC with full functional testing, ensuring that replacement boards meet the original GE factory performance specifications. All units are supplied with a 12-Month Warranty, providing engineering teams with the confidence to plan board replacements as part of scheduled outage maintenance rather than emergency procurement.

Architecture Specification Table

Coordinated Control System Design

The DS200TCPDG1BEC achieves its full operational value only when correctly positioned within a coordinated Speedtronic control system. In a typical Mark V turbine control cabinet, the TCP board operates in concert with the following components:

The DS200TCQAG1B (Turbine Control I/O Board) provides the primary analog input conditioning for thermocouple and RTD signals, feeding processed temperature data directly to the TCP board’s control algorithms. The DS200TCEAG1B handles discrete I/O expansion, managing limit switch states, solenoid valve feedback, and protective relay contact inputs. At the communication layer, the DS200SLCCG1A Serial Link Communication Card bridges the TCP board’s internal IONET traffic to external DCS or SCADA systems via Modbus or proprietary GE protocols.

Power integrity for the entire rack is maintained by the DS200PCCAG1B Power Conditioning Card, which filters and regulates the 28 VDC supply rail shared by all active boards in the cabinet. For excitation and voltage regulation coordination, the IS200TREGH1B Turbine Regulation and Excitation Gateway board synchronizes generator excitation commands with the TCP board’s load control outputs. In TMR configurations, two additional DS200TCPDG1BEC boards operate in parallel, with the IS200VTURH1BCC VME Turbine Regulation board providing the voting arbitration layer.

At the HMI layer, the Mark VI Toolbox engineering workstation connects to the TCP board via Ethernet for online diagnostics, parameter downloads, and alarm management. Terminal boards such as the DS200TBCIH1B provide the physical wiring interface between field instrumentation and the cabinet backplane, completing the signal chain from sensor to processor to actuator.

Application in Layered Automation Systems

The DS200TCPDG1BEC is deployed across a wide range of heavy industrial automation environments where turbine-driven machinery forms the core of the production or power generation process. In combined-cycle power plants, the board manages gas turbine sequencing logic, coordinating fuel valve positioning, compressor inlet guide vane control, and exhaust temperature protection within a single deterministic control loop. In petrochemical and LNG facilities, it governs the control of gas compression trains where turbine speed regulation directly impacts process throughput and pipeline pressure stability.

In steel and metallurgical plants, Speedtronic-controlled turbines drive large blowers and compressors that supply process air to blast furnaces and electric arc furnaces. The TCP board’s fast scan cycle ensures that turbine speed deviations caused by sudden load changes are corrected before they propagate to downstream process equipment. In water treatment and pumping stations, turbine-driven high-capacity pumps rely on the DS200TCPDG1BEC for speed control and protective shutdown logic, ensuring continuous water supply without operator intervention.

In offshore oil and gas platforms, where maintenance access is severely constrained, the TMR redundancy architecture supported by the DS200TCPDG1BEC is essential for achieving the availability targets required by platform operators. The board’s proven reliability in high-vibration, high-humidity marine environments makes it a preferred choice for platform turbine control system maintenance programs. In mining and mineral processing applications, the board controls turbine-driven mill drives and ventilation fans, where unplanned shutdowns result in significant production losses and safety risks.

Architecture Engineering FAQ

Q1: Is the DS200TCPDG1BEC compatible with both Mark V and Mark VI Speedtronic systems?
The DS200TCPDG1BEC is primarily designed for the GE Speedtronic Mark V control platform. While certain board-level components share design lineage with Mark VI hardware, direct cross-platform substitution requires verification against the specific cabinet configuration and firmware revision. ZYPLC’s technical team can assist with compatibility assessment based on your cabinet serial number and existing board revision. All supplied units are tested against Mark V baseline specifications and covered by a 12-Month Warranty.

Q2: Can the DS200TCPDG1BEC be installed in a TMR redundant architecture without reconfiguring the entire cabinet?
Yes. The DS200TCPDG1BEC is designed to support hot-swap replacement in TMR configurations, provided that the replacement board carries the same firmware revision and hardware suffix as the board being replaced. The Mark VI Toolbox can be used to verify board synchronization status after installation. ZYPLC supplies boards with documented revision codes and provides pre-installation technical consultation to ensure Contextual Integration with your existing TMR architecture is achieved without cabinet-level reconfiguration.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
The 12-Month Warranty provided by ZYPLC covers functional failure of the DS200TCPDG1BEC under normal operating conditions consistent with GE’s published environmental and electrical specifications. Warranty claims are initiated by contacting ZYPLC’s technical support team with the board’s serial number and a description of the observed failure mode. ZYPLC will arrange for board inspection and, where applicable, replacement or repair at no additional cost within the warranty period. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.
