GE F31X139APMALG2FR00 System-Ready Power Management for Mark VIe Architecture

GE F31X139APMALG2FR00 System-Ready Power Management for Mark VIe Control Architecture

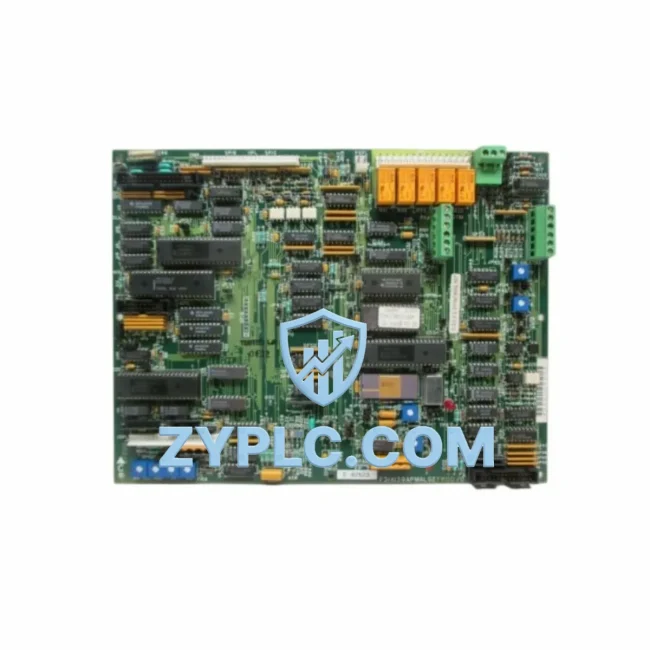

The GE F31X139APMALG2FR00 is a dedicated power management board engineered for seamless integration within the GE Mark VIe distributed control system architecture. Rather than functioning as a standalone component, this module occupies a critical position within the layered automation hierarchy — bridging the power distribution layer with the control, I/O, and communication layers to ensure system-wide stability, redundancy, and long-term operational reliability. In turbine control environments, power integrity is not a peripheral concern; it is the foundation upon which every other control function depends. The F31X139APMALG2FR00 is designed with this principle at its core.

Within a complete Mark VIe control cabinet, the F31X139APMALG2FR00 works in close coordination with the VCMI communication interface module, the PPRO protection processor, and the TTUR turbine control I/O terminal board. Power conditioning and distribution managed by this board directly affects the signal integrity of analog and digital I/O modules mounted on the same backplane. Any instability at the power layer propagates upward through the I/O layer and into the control processor layer — making the F31X139APMALG2FR00 a system-critical component rather than a replaceable commodity part.

Architecture Specification Table

Coordinated Control System Design

The F31X139APMALG2FR00 does not operate in isolation. Its value is realized only when viewed within the context of the complete Mark VIe system architecture. At the control layer, the UCSC Mark VIe controller and PPRO protection processor depend on stable, conditioned power to execute turbine sequencing, protection logic, and real-time control algorithms without interruption. Any power anomaly at the board level can trigger spurious trips or degrade controller response time — outcomes that are unacceptable in gas turbine, steam turbine, or combined-cycle power generation environments.

At the I/O layer, terminal boards such as the TTUR turbine I/O terminal board, TBCI contact input terminal board, and TREG voltage regulator terminal board rely on the power distribution managed by the F31X139APMALG2FR00 to maintain signal accuracy across analog inputs, digital outputs, and relay contact circuits. Voltage ripple or transient spikes at the power board level directly compromise measurement accuracy at the I/O layer — a critical concern in applications where 4–20 mA analog signals represent process variables such as exhaust temperature, compressor pressure ratio, or fuel flow.

At the network and communication layer, the VCMI communication interface module and IONet Ethernet switch maintain real-time data exchange between the Mark VIe controller and the HMI workstation running GE ToolboxST configuration software. Stable power at the board level ensures that communication latency remains within acceptable bounds and that no packet loss occurs due to power-induced resets of the communication interface hardware.

At the human-machine interface layer, operators monitoring turbine performance through the Mark VIe HMI workstation depend on the accuracy of data flowing from the I/O layer through the controller to the display. Power instability at any point in this chain — including at the F31X139APMALG2FR00 — can result in stale data, false alarms, or missed process deviations. Replacing a degraded power management board with a verified F31X139APMALG2FR00 restores system confidence and eliminates a common root cause of intermittent control system faults.

For redundant system configurations, the Mark VIe architecture supports TMR (Triple Modular Redundancy) and dual-redundant controller arrangements. In these configurations, the power management board must meet the same reliability standard as the redundant controller modules themselves. The F31X139APMALG2FR00 is sourced, tested, and supplied to meet this standard, ensuring that redundancy at the controller layer is not undermined by a single point of failure at the power layer.

Application in Layered Automation Systems

The F31X139APMALG2FR00 finds application across a broad range of industrial sectors where the GE Mark VIe platform is deployed as the primary control system.

In power generation — including gas turbine, steam turbine, and combined-cycle plants — the Mark VIe system manages start-up sequencing, load control, protection logic, and emissions monitoring. The power management board supports continuous operation across extended maintenance intervals, reducing unplanned downtime and supporting planned outage schedules.

In oil and gas processing and petrochemical facilities, the Mark VIe platform controls compressor trains, gas turbine-driven pumps, and associated process equipment. In these environments, the F31X139APMALG2FR00 must perform reliably under elevated ambient temperatures, vibration, and electromagnetic interference — conditions that accelerate component aging and make access to verified replacement parts essential for maintaining production continuity.

In steel and metallurgical plants, where rolling mills, electric arc furnaces, and continuous casting lines operate under demanding electrical environments, the Mark VIe system provides coordinated drive and process control. Power management integrity at the board level is essential to prevent nuisance trips that interrupt production and cause costly reheating or material waste.

In water treatment and municipal utility applications, the Mark VIe platform manages pump stations, aeration systems, and chemical dosing processes. Long-term reliability and the availability of replacement components such as the F31X139APMALG2FR00 are critical to meeting regulatory uptime requirements and avoiding service interruptions to end users.

In mining and mineral processing operations, where conveyor systems, crushers, and hoisting equipment are controlled through distributed automation platforms, the ability to source and deploy a verified replacement power management board without extended lead times directly impacts production availability and safety system integrity.

Architecture Engineering FAQ

Q1: Is the F31X139APMALG2FR00 compatible with both simplex and redundant Mark VIe configurations?
Yes. The F31X139APMALG2FR00 is designed for use within the standard Mark VIe cabinet architecture and is compatible with simplex, dual-redundant, and TMR system configurations. In redundant arrangements, it is recommended to replace power management boards in matched pairs or sets to maintain symmetrical power distribution across redundant controller racks. Consult the GE Mark VIe System Guide (GEH-6421) for rack-specific installation requirements.

Q2: What commissioning steps are required when installing the F31X139APMALG2FR00 as a replacement in an existing Mark VIe system?
Installation should follow the GE Mark VIe maintenance procedures, including cabinet power-down, ESD precautions, board seating verification, and post-installation power-up sequencing using GE ToolboxST. No firmware configuration is typically required for the power management board itself, but system diagnostics should be run to confirm that all downstream I/O modules and communication interfaces are receiving correct supply voltages before returning the turbine to service.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It supports maintenance planning by providing a defined reliability window for budgeting spare parts cycles, reducing the financial risk of unplanned replacements, and ensuring that engineering teams can commit to scheduled outage timelines with confidence. Warranty claims are processed directly and supported by our technical team at [email protected].
