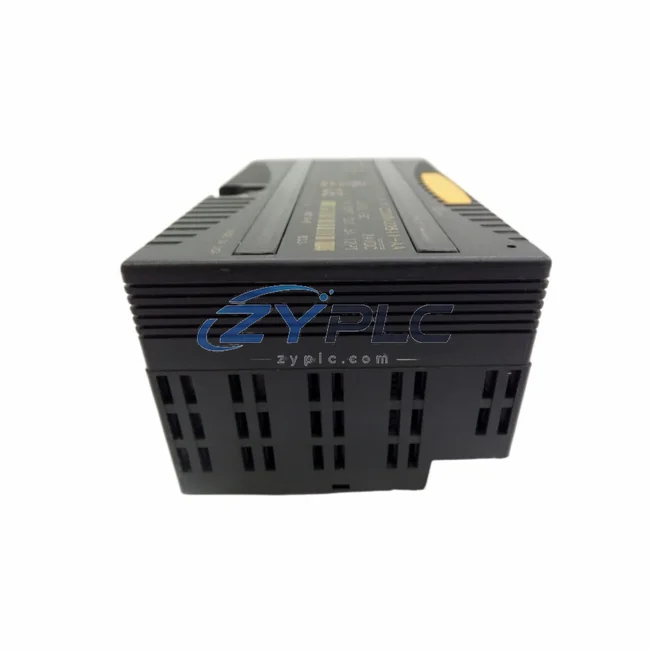

GE IC200MDD841 VersaMax Micro High Speed Counter Module

GE IC200MDD841 VersaMax Micro High Speed Counter Module: Industrial Data Link for Smart Factory Connectivity

The GE IC200MDD841 is a high-performance High Speed Counter Module designed for the GE VersaMax Micro PLC platform. Purpose-built for demanding industrial environments, this module serves as a critical data acquisition node within the plant-floor communication chain — bridging field-level pulse signals from encoders, flow meters, and proximity sensors directly into the PLC control loop and upstream SCADA/HMI systems. Whether deployed in discrete manufacturing, process control, or motion-intensive applications, the IC200MDD841 delivers deterministic counter data with the reliability that modern smart factories demand.

In a connected automation architecture, the IC200MDD841 functions as the front-end signal capture layer. High-frequency pulse trains from rotary encoders or turbine flow meters are captured at the module level, processed locally, and transmitted via the VersaMax Micro backplane to the CPU — such as the GE IC200UDR005 or IC200UDR020 — where the data enters the PLC scan cycle. From there, the processed counter values are made available to upstream communication modules, including GE IC200SET001 Ethernet interface cards, enabling real-time data exchange with plant-level SCADA platforms such as GE iFIX, Wonderware, or Ignition-based supervisory systems.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC200MDD841 sits at the intersection of physical signal acquisition and digital data transmission. In a typical smart factory deployment, the data flow begins at the field device layer: a rotary encoder mounted on a conveyor motor generates high-frequency pulse signals that the IC200MDD841 captures with precision. These counter values are passed through the VersaMax Micro backplane to the host CPU — commonly the GE IC200UDR040 — where ladder logic or function block programs process the data for speed calculation, position tracking, or batch counting.

Once processed at the PLC level, the data is forwarded via the GE IC200SET001 Ethernet communication module to the plant network. At this layer, SCADA systems poll the PLC registers over Modbus TCP or Ethernet/IP, pulling real-time counter values into historian databases and operator dashboards. HMI panels — such as those running GE Proficy HMI/SCADA iFIX or third-party systems like Weintek or Siemens TP series — display live production counts, batch totals, and speed metrics to floor operators.

For facilities integrating remote I/O expansion, the VersaMax Micro system can be extended using GE IC200CHS022 expansion carriers, allowing additional analog and digital I/O modules to be added alongside the IC200MDD841 without disrupting the counter data path. In multi-zone production lines, edge gateways aggregate data from multiple VersaMax Micro nodes and forward consolidated datasets to MES or ERP platforms, completing the vertical integration from sensor to enterprise system.

Drive systems also benefit from this connectivity architecture. Variable frequency drives (VFDs) controlling conveyor or pump motors can feed encoder feedback through the IC200MDD841, enabling closed-loop speed regulation within the PLC program. Alarm thresholds configured in the PLC logic trigger immediate notifications to SCADA operators when counter values exceed defined limits — supporting predictive maintenance workflows and reducing unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — islands of automation where PLCs, drives, sensors, and HMI systems operate independently without a unified data backbone. The GE IC200MDD841, as part of the VersaMax Micro ecosystem, directly addresses this problem by providing a standardized, backplane-integrated counter input that feeds into a CPU capable of multi-protocol communication.

Sites running mixed-protocol environments — where some devices speak Modbus RTU, others use Ethernet/IP, and legacy equipment relies on serial RS-232/RS-485 — can leverage the VersaMax Micro CPU’s gateway capabilities to normalize data from the IC200MDD841 alongside other I/O modules. This eliminates the need for standalone protocol converters and reduces wiring complexity. The result is a transparent production line where every pulse count, every batch total, and every speed reading is visible in real time from the SCADA control room or remote monitoring dashboard.

Remote diagnostics are equally important. With the IC200MDD841 integrated into a networked VersaMax Micro system, maintenance engineers can remotely interrogate counter register values, verify signal integrity, and diagnose encoder faults without physical access to the panel. This capability is especially valuable in hazardous or hard-to-reach installation locations. System expansion is straightforward: additional VersaMax Micro I/O modules can be added to the same carrier, and the network configuration updated in the PLC program — no hardware redesign required.

Every GE IC200MDD841 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify counter channel operation, backplane communication integrity, and I/O response. Units are shipped with a warranty terms confirmed during quotation, and our inventory is maintained to support both urgent replacement orders and planned project procurement.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200MDD841 support for SCADA integration?
The IC200MDD841 itself communicates via the VersaMax Micro internal backplane bus. SCADA integration is achieved through the host CPU module, which supports Ethernet/IP and Modbus TCP via an Ethernet communication module such as the IC200SET001. This allows counter data to be polled directly by SCADA platforms including GE iFIX, Ignition, and Wonderware over standard plant Ethernet networks.

Q2: Is the IC200MDD841 compatible with other GE VersaMax Micro CPU modules?
Yes. The IC200MDD841 is designed for the GE VersaMax Micro platform and is compatible with a range of VersaMax Micro CPU modules, including the IC200UDR005, IC200UDR020, and IC200UDR040. Always verify the specific carrier and expansion slot configuration against your system’s hardware compatibility list before installation.

Q3: How does the module handle communication latency in high-speed counting applications?
The IC200MDD841 captures high-frequency pulse inputs at the hardware level, independent of the PLC scan cycle. Counter values are latched and made available to the CPU at each scan, ensuring that no pulses are missed even in fast-moving applications. Network transmission latency to SCADA is determined by the Ethernet communication module and network infrastructure, typically in the millisecond range for standard Modbus TCP polling.

Q4: What warranty and testing does ZYPLC provide for the GE IC200MDD841?
All GE IC200MDD841 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including counter channel verification and backplane communication checks. We confirm availability by RFQ and arrange shipment after confirmation and support both emergency replacement and planned project orders globally.
