GE IC200MDL640F Digital Input Module for VersaMax Systems

GE IC200MDL640F Industrial Network Interface for VersaMax Systems: Bridging Field Devices and Smart Factory Data Links

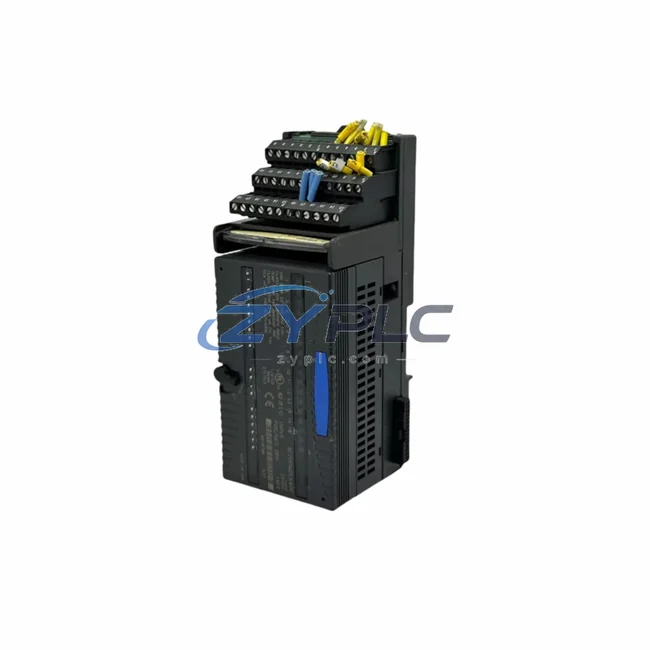

The GE IC200MDL640F is a 16-point, 24VDC discrete digital input module engineered for the GE VersaMax distributed I/O platform. Designed to operate at the intersection of field-level signal acquisition and upper-layer network communication, the IC200MDL640F serves as a critical data entry point in industrial automation architectures — capturing discrete signals from sensors, limit switches, push buttons, and proximity detectors, then feeding that real-time status data into the VersaMax backplane for transmission to PLC controllers, SCADA systems, and HMI interfaces. In smart factory environments where data latency, signal integrity, and network continuity are non-negotiable, this module delivers the reliability and compatibility that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated VersaMax automation network, the IC200MDL640F sits at the front end of the data acquisition chain. Field-level devices — including inductive proximity sensors, photoelectric detectors, and emergency stop circuits — connect directly to the module’s 16 input channels. Once a signal state changes, the module immediately updates the I/O image table on the VersaMax backplane, where the IC200CPU005 VersaMax CPU module reads and processes the data in real time.

The CPU communicates upstream through a VersaMax Network Interface Unit (NIU), such as the IC200PBI001 Profibus-DP interface, which bridges the VersaMax remote I/O rack to the main PLC network. In facilities running GE Series 90-30 or PACSystems RX3i controllers, the IC693CMM321 communications module handles protocol translation and data routing between the field bus and the Ethernet backbone, ensuring that every discrete input state captured by the IC200MDL640F is available to the supervisory layer within milliseconds.

On the output and control side, the IC200UDD104 mixed discrete I/O module works alongside the IC200MDL640F to complete the control loop — receiving commands from the PLC and actuating field devices based on the input states the IC200MDL640F has reported. Power to the entire VersaMax I/O rack is supplied by the IC200PWR002 power supply module, which maintains stable 24VDC bus voltage across all installed modules, including the IC200MDL640F, under varying load conditions.

For analog process data integration, the IC200ALG260 analog input module operates in the same VersaMax chassis, allowing mixed discrete and analog signal acquisition from the same remote I/O node. This combined data stream is then transmitted to the GE QuickPanel+ HMI, where operators monitor real-time process status, acknowledge alarms, and issue manual overrides. At the SCADA level, GE CIMPLICITY software aggregates data from multiple VersaMax nodes across the plant floor, providing historians, trend analysis, and alarm management for the entire production network.

For facilities requiring edge computing and protocol gateway functionality, the IC200MDL640F data can be routed through an industrial edge gateway — such as those supporting OPC-UA or MQTT — enabling cloud connectivity and IIoT integration without disrupting the existing VersaMax network architecture. The IC200CHS022 VersaMax carrier provides the physical backplane infrastructure that ties all these modules together into a cohesive, high-density remote I/O node.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — field devices that generate valuable process signals but cannot communicate those signals to higher-level systems due to protocol incompatibility, aging hardware, or fragmented network architectures. The GE IC200MDL640F directly addresses this problem within the VersaMax ecosystem.

Protocol Unification: Many production sites run a mix of Genius Bus, Profibus-DP, DeviceNet, and Ethernet/IP networks. The VersaMax platform, with the IC200MDL640F as its discrete input front end, supports multiple network interface options, allowing a single remote I/O node to serve as a protocol bridge between legacy field buses and modern Ethernet-based control networks. This eliminates the need for standalone protocol converters and reduces network complexity.

Eliminating Data Silos: When discrete input data from the IC200MDL640F is properly integrated into the VersaMax network and routed to SCADA and MES systems, production managers gain full visibility into machine states, cycle counts, fault conditions, and line throughput — data that was previously trapped at the field level. This transparency is foundational to production line digitization and OEE (Overall Equipment Effectiveness) improvement initiatives.

Remote Monitoring and Diagnostics: The VersaMax architecture supports remote diagnostics through the network interface layer. Maintenance engineers can query module status, check input channel health, and identify wiring faults from the control room or via remote access tools — without requiring physical presence at the remote I/O cabinet. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies.

Scalable System Expansion: The modular design of the VersaMax platform means that additional IC200MDL640F modules can be added to existing racks, or new VersaMax nodes can be deployed at additional field locations, without redesigning the network architecture. This scalability makes the IC200MDL640F a long-term investment for facilities planning phased automation upgrades.

Pre-Shipment Testing and warranty terms confirmed during quotation: Every IC200MDL640F unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying input channel response, backplane communication integrity, and power consumption within specification. All units are covered by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation via DHL or FedEx international express.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200MDL640F support?
The IC200MDL640F itself communicates via the VersaMax backplane I/O bus. Network-level protocol support — including Genius Bus, Profibus-DP, DeviceNet, and Ethernet/IP — is determined by the Network Interface Unit (NIU) installed in the same VersaMax rack. This architecture allows the same IC200MDL640F module to operate across different network topologies by simply changing the NIU, making it highly flexible for multi-protocol industrial environments.

Q2: How does the IC200MDL640F perform in terms of communication latency and network stability?
The IC200MDL640F updates the VersaMax I/O image table within the PLC scan cycle, typically achieving input response times of under 1ms at the module level. Network transmission latency depends on the NIU and field bus configuration, but VersaMax systems are designed for deterministic, real-time communication — making them suitable for time-critical control applications where input state changes must be reflected in the control program without delay.

Q3: Is the GE IC200MDL640F compatible with PACSystems RX3i and Series 90-30 controllers?
The IC200MDL640F is natively compatible with VersaMax CPU modules and NIUs. Integration with PACSystems RX3i or Series 90-30 controllers is achieved through the VersaMax NIU acting as a remote I/O adapter on the Genius Bus or Profibus-DP network. Communications modules such as the IC693CMM321 facilitate this cross-platform connectivity, allowing the IC200MDL640F to serve as a remote input node for a wide range of GE control platforms.

Q4: What does the warranty terms confirmed during quotation cover, and how are units tested before shipment?
All IC200MDL640F units supplied by ZYPLC are tested for input channel functionality, backplane communication, and electrical integrity before dispatch. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of IC200MDL640F modules, enabling rapid order fulfillment for both urgent replacement requirements and planned system expansions. Contact our team for availability confirmation and lead time.
