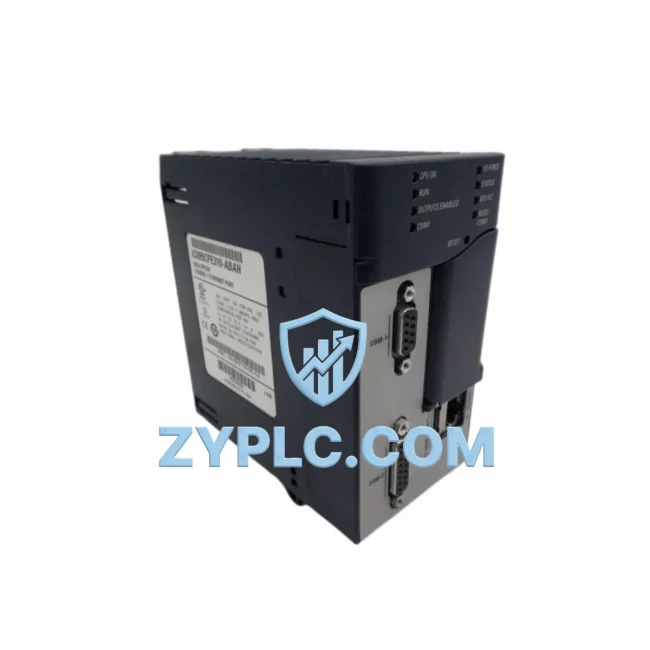

GE IC695CPE310-ABAH System-Ready CPU Controller for PACSystems RX3i Architecture

GE IC695CPE310-ABAH System-Ready CPU Controller: Control System Architecture and Upstream-Downstream Coordination

The GE IC695CPE310-ABAH is a high-performance CPU controller module engineered for deployment within the GE PACSystems RX3i control platform. Rather than functioning as a standalone component, this module serves as the central processing node of a layered industrial automation architecture — coordinating signal acquisition, logic execution, network communication, and output actuation across every tier of the control system. Understanding its role within the full system stack is essential for engineers designing scalable, redundant, and maintainable automation solutions in demanding industrial environments.

In a properly configured PACSystems RX3i architecture, the IC695CPE310-ABAH occupies the control layer, where it executes ladder logic, function block diagrams, and structured text programs at deterministic scan rates. It interfaces directly with the RX3i universal backplane — typically the IC695CHS016 or IC695CHS012 — which provides the physical and electrical backbone for all modules in the rack. The backplane’s high-speed serial optical bus ensures low-latency communication between the CPU and co-resident I/O, communications, and specialty modules, maintaining system coherence even under high-throughput process conditions.

At the I/O layer, the IC695CPE310-ABAH coordinates with a broad range of analog and digital I/O modules. Discrete input modules such as the IC694MDL655 and analog output modules like the IC695ALG704 feed real-time field data directly into the CPU’s memory map, enabling closed-loop control with minimal latency. For applications requiring distributed I/O expansion beyond the local rack, the CPU supports remote I/O drops via the IC695PBM300 PROFIBUS master module or Ethernet-based remote I/O adapters, extending the system’s physical reach without sacrificing scan-cycle integrity.

Network integration is handled through the IC695CPE310-ABAH’s embedded dual Ethernet ports, which support SRTP, Modbus TCP, EGD (Ethernet Global Data), and OPC UA protocols. This enables seamless Contextual Integration with SCADA systems, MES platforms, and historian servers — a critical requirement in modern Industry 4.0 architectures. For facilities requiring deterministic fieldbus communication, the IC695PBM300 PROFIBUS master or IC695CMM002 serial communications module can be added to the rack to interface with legacy field devices and third-party instrumentation.

Power integrity is foundational to system reliability. The IC695CPE310-ABAH operates within a rack powered by the IC695PSA040 or IC695PSD040 power supply modules, which deliver regulated 3.3 V and 5 V DC rails to all backplane-connected modules. For mission-critical applications, redundant power supply configurations using dual IC695PSD040 units with automatic switchover eliminate single points of failure at the power layer, ensuring uninterrupted CPU operation during supply faults or maintenance windows.

At the human-machine interface layer, the IC695CPE310-ABAH integrates natively with GE’s iFIX and CIMPLICITY SCADA platforms via Ethernet, as well as with third-party HMI panels communicating over Modbus TCP or OPC UA. Operators gain real-time visibility into process variables, alarm states, and system diagnostics without requiring proprietary communication drivers, reducing integration complexity and long-term software maintenance overhead.

For applications demanding high availability, the IC695CPE310-ABAH supports hot-standby CPU redundancy when paired with a secondary IC695CPE310 unit and the IC695RMX128 redundancy memory exchange module. In redundant configurations, the primary and secondary CPUs maintain synchronized memory images, enabling bumpless transfer of control in the event of a primary CPU fault — a capability essential in power generation, oil and gas, and water treatment facilities where unplanned downtime carries significant operational and safety consequences.

Engineering teams benefit from the module’s compatibility with GE’s Proficy Machine Edition (PME) programming environment, which provides unified project management, online diagnostics, and firmware update capabilities across the entire PACSystems RX3i platform. Commissioning workflows are streamlined through PME’s hardware configuration wizard, which automatically validates rack topology, module addressing, and I/O mapping — reducing startup time and minimizing configuration errors on complex multi-rack systems.

Long-term maintenance is supported by the module’s robust diagnostic architecture. The IC695CPE310-ABAH continuously monitors internal temperature, voltage rails, and communication bus health, surfacing fault codes through the PME diagnostic viewer and via SNMP traps to network management systems. This proactive fault visibility enables predictive maintenance strategies, reducing unplanned downtime and extending the operational lifespan of the control system as a whole.

All units supplied by ZYPLC are sourced from verified channels, fully tested under operational conditions, and covered by a 12-Month Warranty. In-stock availability ensures rapid dispatch to support both planned system builds and emergency replacement scenarios across global industrial facilities.

Architecture Specification Table

Coordinated Control System Design

A complete PACSystems RX3i control system built around the IC695CPE310-ABAH typically incorporates the following coordinated components across all system layers:

• IC695CHS016 — 16-slot RX3i universal backplane providing the high-speed optical bus backbone for all rack-resident modules.
• IC695PSD040 — 40W redundant-capable DC power supply delivering stable 3.3 V and 5 V rails to the CPU and I/O modules.
• IC695ALG704 — 8-channel analog output module for precision process variable control at the field device layer.
• IC694MDL655 — 32-point 24 VDC discrete input module for high-density digital signal acquisition from field sensors and switches.
• IC695PBM300 — PROFIBUS DP master module enabling deterministic fieldbus communication with distributed I/O stations and third-party field devices.
• IC695CMM002 — Dual-port serial communications module supporting RS-232/RS-485 for legacy device integration and serial protocol bridging.
• IC695RMX128 — Redundancy memory exchange module enabling hot-standby CPU redundancy with bumpless switchover capability.
• IC695ETM001 — Ethernet communications module providing additional network ports for high-availability dual-network architectures.
• IC694MDL754 — 32-point 24 VDC discrete output module for high-density actuator and relay control at the execution layer.
• IC695ALG600 — 8-channel universal analog input module supporting thermocouple, RTD, and voltage/current signal types for multi-sensor process monitoring.

This coordinated module selection ensures full coverage across the control, I/O, network, power, and redundancy layers — delivering a system architecture optimized for consistency, expandability, and long-term maintainability.

Application in Layered Automation Systems

The IC695CPE310-ABAH is deployed across a wide spectrum of industrial sectors where deterministic control, system scalability, and long-term platform stability are non-negotiable requirements.

In power generation and electrical utilities, the module serves as the primary controller for turbine governor systems, transformer protection relay coordination, and substation automation — where its dual Ethernet ports enable simultaneous connection to plant SCADA and protection relay networks. In oil and gas processing facilities, the CPU manages wellhead control panels, pipeline pressure regulation, and emergency shutdown (ESD) logic, with hot-standby redundancy ensuring SIL-compliant availability targets are met.

For water and wastewater treatment plants, the IC695CPE310-ABAH controls pump sequencing, chemical dosing, and filtration process loops across multi-site distributed architectures, with EGD peer-to-peer communication enabling inter-PLC data exchange without SCADA dependency. In mining and mineral processing operations, the module manages conveyor drive coordination, crusher control, and flotation cell automation in environments characterized by high vibration, dust ingress, and wide temperature variation.

In manufacturing and assembly lines — including automotive, electronics, and consumer goods production — the CPU executes high-speed motion coordination, vision system integration, and statistical process control (SPC) data logging. For petrochemical and refinery applications, it manages distillation column control, heat exchanger regulation, and compressor surge protection within DCS-integrated architectures. Across all these sectors, the module’s Contextual Integration capability ensures that process data flows seamlessly from the field device layer to enterprise-level analytics and reporting systems.

Architecture Engineering FAQ

Q1: Is the IC695CPE310-ABAH compatible with existing PACSystems RX3i racks and I/O modules already installed in my facility?
Yes. The IC695CPE310-ABAH is fully compatible with all standard RX3i universal backplanes (IC695CHS012, IC695CHS016) and the complete range of RX3i I/O, communications, and specialty modules. It is backward-compatible with existing hardware configurations and Proficy Machine Edition projects, allowing direct replacement of earlier CPE310 firmware revisions without requiring rack or wiring modifications. Always verify firmware revision compatibility in PME before deployment.

Q2: Can this CPU support a hot-standby redundant architecture, and what additional components are required?
Yes. Hot-standby CPU redundancy is supported when the IC695CPE310-ABAH is paired with a second IC695CPE310-ABAH unit and the IC695RMX128 redundancy memory exchange module. Both CPUs must be installed in separate racks connected via the RMX128 fiber-optic link. The primary CPU continuously synchronizes its memory image to the secondary, enabling bumpless transfer of control within one scan cycle upon primary fault detection. Redundant power supplies (dual IC695PSD040) are strongly recommended to eliminate power-layer single points of failure.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues identified during the warranty period. All units are tested prior to shipment under simulated operational conditions. ZYPLC maintains dedicated inventory of PACSystems RX3i components — including CPUs, power supplies, I/O modules, and communications modules — to support both planned maintenance schedules and emergency replacement requirements. For warranty claims or spare parts inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
