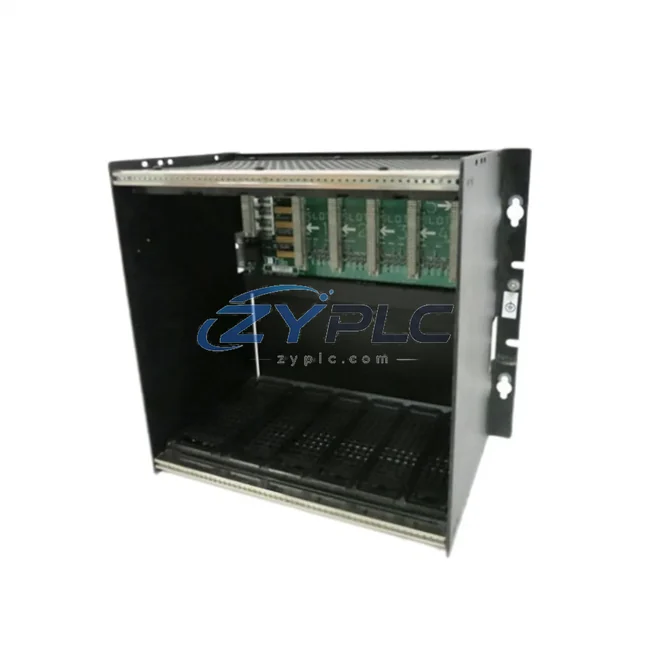

GE IC697CHS750 PLC Rack for Series 90-70

GE IC697CHS750 PLC Rack for Series 90-70: Efficiency Control and Production Line Optimization

The GE IC697CHS750 is a 5-slot rear-mount backplane rack designed for the GE Series 90-70 programmable logic controller platform — one of the most widely deployed industrial automation architectures in heavy manufacturing, process control, and energy-intensive production environments. In facilities where uptime directly translates to energy cost, the IC697CHS750 plays a foundational role in reducing idle power draw, minimizing control system restarts, and maintaining the structural integrity of the entire PLC chassis assembly.

At ZYPLC, every IC697CHS750 unit is sourced from verified supply channels, subjected to outgoing shipment testing, and backed by a warranty terms confirmed during quotation — ensuring that your replacement or expansion rack arrives ready for immediate integration without compromising your production schedule.

Product Specification Table

System Compatibility and Application

The IC697CHS750 rack does not operate in isolation — it is the physical backbone that holds together an entire industrial control architecture. In a typical Series 90-70 deployment, the rack houses the IC697CPU772 or IC697CPU781 central processing unit, which executes ladder logic and function block programs that govern motor start/stop sequences, drive speed references, and process interlocks. When the CPU operates without bus errors or slot conflicts — conditions directly influenced by rack integrity — the control cycle runs at its rated scan time, preventing unplanned downtime caused by redundant polling or watchdog-triggered restarts.

Alongside the CPU, the rack typically accommodates the IC697PWR711 or IC697PWR724 power supply module, which converts incoming AC voltage to the regulated DC bus that feeds all installed modules. A degraded or mismatched rack can introduce voltage ripple that forces the power supply to operate outside its efficiency curve, increasing heat dissipation and shortening module lifespan. The IC697CHS750’s robust backplane connectors maintain clean electrical contact, keeping the power supply in its optimal operating band.

For analog condition monitoring, engineers frequently install the IC697ALG320 or IC697ALG440 analog input modules within the same rack to collect 4–20 mA signals from current transformers, power transducers, and flow meters. These signals feed real-time operating load data directly into the PLC scan cycle, enabling closed-loop control strategies that throttle drive outputs when process demand drops — a direct mechanism for reducing operating-hour consumption per production unit.

On the drive side, the Series 90-70 platform communicates with variable frequency drives such as the GE AF-600 FP series via discrete I/O or serial communication modules like the IC697CMM711. By maintaining a stable, error-free communication path through the IC697CHS750 rack, the PLC can issue precise speed reference commands to the VFD, enabling the drive to operate motors at the lowest speed necessary for the current load — the single most impactful operational-efficiency strategy in motor-driven systems. A rack with intermittent bus faults forces the drive to fall back to fixed-speed operation, eliminating all variable-speed operational stability.

For facilities using distributed I/O architectures, the IC697BEM711 bus expansion module can be installed in the IC697CHS750 rack to extend the control network to remote I/O drops, reducing the need for long home-run wiring runs and the associated voltage drop losses. Combined with IC697MDL340 or IC697MDL753 discrete I/O modules for field device interfacing, the rack becomes the central node of a lean, low-loss control topology.

Maintenance and Replacement Notes

In automotive stamping lines, food processing facilities, and chemical batch plants, unplanned PLC downtime is not merely a productivity loss — it is an energy event. When a control system trips offline, compressed air systems continue to run, conveyor drives remain energized in standby, and HVAC systems maintain process temperatures for equipment that is no longer producing. Every minute of unplanned downtime carries a hidden energy cost that rarely appears in maintenance reports but consistently inflates utility bills.

The IC697CHS750 addresses this at the hardware level. Its rear-mount design allows module replacement without disturbing front-panel wiring, reducing the mean time to repair (MTTR) for slot-level faults. Faster repairs mean shorter periods of unproductive operating load. In facilities running three-shift operations, even a 15-minute reduction in average repair time per incident — across multiple lines — can represent measurable reductions in monthly energy spend.

From a predictive maintenance perspective, a rack with clean backplane contacts produces consistent module diagnostics. The Series 90-70 CPU continuously monitors module health through the backplane bus; when contact resistance increases due to rack wear or contamination, diagnostic false positives increase, triggering unnecessary shutdowns. Replacing an aging rack with a tested IC697CHS750 unit restores diagnostic accuracy, allowing maintenance teams to act on real fault data rather than chasing phantom alarms — a direct improvement in equipment utilization rate (EUR).

For production lines optimizing takt time, the IC697CHS750 supports full-slot utilization without derating, meaning engineers can install the maximum complement of I/O and communication modules needed for fine-grained process control. Tighter control granularity translates to narrower process windows, less material waste, and more consistent operating load per production cycle — the foundation of any industrial maintenance planning program.

ZYPLC maintains ready inventory of the IC697CHS750 to support both planned maintenance schedules and emergency replacement scenarios. All units undergo outgoing shipment testing to verify backplane continuity and slot integrity before dispatch, and are covered by a warranty terms confirmed during quotation from the date of purchase.

Product Sourcing FAQ

Q1: How does replacing the IC697CHS750 rack contribute to operational stability on my production line?
A worn or faulty backplane rack introduces bus errors that force the Series 90-70 CPU into fault recovery cycles, increasing scan time and causing drives and actuators to operate in uncontrolled states. Replacing the rack with a tested IC697CHS750 restores deterministic scan performance, allowing variable frequency drives and servo systems to execute speed and torque commands precisely — the primary mechanism for motor operational stability in automated lines.

Q2: Is the IC697CHS750 compatible with all GE Series 90-70 modules and power supplies?
Yes. The IC697CHS750 is a standard 5-slot Series 90-70 backplane and is compatible with the full range of GE Series 90-70 CPUs, power supply modules (including IC697PWR711 and IC697PWR724), analog and discrete I/O modules, and communication modules. It is interchangeable with other IC697CHS-series racks of the same slot count within the Series 90-70 platform.

Q3: What testing does ZYPLC perform before shipping the IC697CHS750?
Every IC697CHS750 unit shipped by ZYPLC undergoes outgoing shipment testing that includes backplane bus continuity verification, slot connector inspection, and physical integrity checks. Units that do not meet specification are not dispatched. All shipped units are covered by a warranty terms confirmed during quotation, and ZYPLC’s technical team is available to support installation and compatibility queries.

Q4: Can the IC697CHS750 be used as a direct replacement in an existing Series 90-70 cabinet without rewiring?
Yes. The rear-mount design of the IC697CHS750 is intended to allow module and rack replacement without disturbing front-panel field wiring. In most installations, the rack can be swapped by removing the installed modules, replacing the rack, and reinstalling the modules — minimizing downtime and reducing the risk of wiring errors that could affect system safety or energy control logic.
