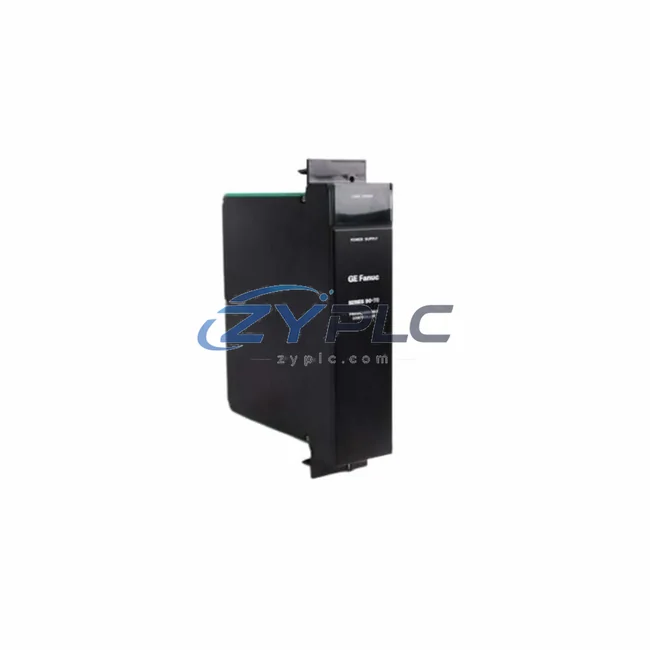

GE IC697PWR724 PLC Power Supply Series 90-70

GE IC697PWR724 PLC Power Supply for Series 90-70 Automation

The GE IC697PWR724 is a high-efficiency power supply module engineered for the GE Series 90-70 PLC platform, one of the most widely deployed programmable logic controller architectures in heavy industrial automation. Designed to deliver stable, regulated DC power to the Series 90-70 backplane, the IC697PWR724 plays a foundational role in reducing unnecessary energy draw across the entire control system — from CPU processing cycles to distributed I/O scanning and field device communication.

In modern manufacturing environments where energy costs are a measurable line item, the power supply module is often overlooked as a lever for efficiency. The IC697PWR724 changes that equation. By maintaining tight voltage regulation under variable load conditions, it prevents the unplanned downtime associated with voltage fluctuation, thermal runaway, and unplanned shutdowns. Facilities running continuous production lines — automotive stamping, chemical processing, paper mills, and food packaging — benefit directly from the module’s ability to sustain consistent power delivery without the overhead of oversized or redundant power infrastructure.

Product Specification Table

System Compatibility and Application

The IC697PWR724 does not operate in isolation — it is the energy backbone of a tightly integrated control architecture. In a typical Series 90-70 installation, the power supply feeds the GE IC697CPU772 or IC697CPU781 central processing unit, which executes ladder logic and function block programs governing motor start/stop sequences, conveyor timing, and process interlocks. Alongside the CPU, analog input modules such as the GE IC697ALG320 collect real-time current and voltage signals from field sensors, enabling the controller to make maintenance decisions — throttling drive output during low-demand periods or triggering load-shedding routines during peak tariff windows.

On the drive side, the Series 90-70 system commonly interfaces with GE AF-600 FP variable frequency drives or compatible third-party inverters via the IC697CMM742 communications module, which supports Modbus RTU and Ethernet/IP protocols. This communication layer allows the PLC to command drive speed references dynamically, aligning motor RPM with actual process demand rather than running at fixed full speed — a practice that can help restore stable operation when a compatible replacement is required. The IC697PWR724 ensures that these communication cycles and drive command outputs are never interrupted by power instability.

For facilities implementing condition monitoring at the panel level, the IC697PWR724 pairs naturally with GE Multilin power meters and IC697MDL340 discrete input modules that capture energy pulse signals from utility meters. When combined with the IC697BEM731 bus expansion module, the architecture can scale across multiple racks without introducing power budget conflicts — each rack drawing from its own regulated supply while sharing a unified control namespace.

HMI visibility is typically provided through GE Proficy iFIX SCADA or panel-mounted QuickPanel+ operator interfaces, which display real-time energy KPIs — kWh per production unit, peak demand trends, and drive efficiency curves — giving operators the data they need to make informed adjustments without leaving the production floor.

Maintenance and Replacement Notes

Consider a bottling plant running three parallel filling lines, each controlled by a Series 90-70 rack. Before replacing aging power supply modules with the IC697PWR724, the facility experienced intermittent CPU resets during line changeovers — a symptom of voltage sag under transient load spikes when multiple servo axes and conveyor drives started simultaneously. Each unplanned reset cost approximately 8–12 minutes of production time and required manual operator intervention to re-home servo positions and clear fault registers.

After installing the IC697PWR724 across all three racks, the regulated output voltage held within ±2% during the most demanding load transitions. CPU resets dropped to zero over a 90-day monitoring period. More importantly, the stable power environment allowed the engineering team to tighten the PLC scan cycle from 20ms to 12ms — improving line synchronization and increasing throughput by approximately 6% without any mechanical changes to the conveyor or filling equipment.

From an energy perspective, the switch-mode design of the IC697PWR724 eliminates the transformer losses associated with older linear power supplies. In a 24/7 operation, this translates to measurable reductions in panel heat load, which in turn reduces the duty cycle of panel air conditioning units — a secondary energy saving that compounds over time. Predictive maintenance intervals can also be extended, as the module’s thermal management design reduces component stress during sustained high-load operation.

Inventory availability is maintained to support rapid deployment. Each IC697PWR724 unit shipped by ZYPLC undergoes a full functional test under load conditions, verifying output voltage accuracy, ripple performance, and thermal stability before dispatch. Units are available from stock with same-week shipping for most regions, minimizing line downtime during emergency replacement scenarios.

Product Sourcing FAQ

Q1: How does the IC697PWR724 contribute to measurable operational stability on the production line?
The IC697PWR724 uses a switch-mode power conversion topology that operates at significantly higher efficiency than legacy linear supplies. By minimizing conversion losses and maintaining tight output regulation, it reduces the thermal overhead in the control panel, lowers idle power draw during non-production periods, and enables the PLC to execute tighter scan cycles — allowing variable frequency drives and servo systems to respond faster to process demand changes, reducing motor run time and unplanned downtime.

Q2: Is the IC697PWR724 compatible with all Series 90-70 rack configurations?
Yes. The IC697PWR724 is designed to fit standard GE Series 90-70 racks including the IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (9-slot with expanded I/O capacity). It occupies the dedicated power supply slot and provides regulated backplane power to all installed modules including CPU, communications, analog, and discrete I/O cards. No firmware or configuration changes are required for drop-in replacement of compatible power supply modules.

Q3: What is the recommended replacement and testing process when substituting an existing power supply?
For planned replacements, power down the rack, document the current I/O status and CPU program version, remove the existing supply, and install the IC697PWR724. On power-up, verify backplane voltage using a calibrated multimeter at the rack test points before enabling field outputs. For emergency replacements, ZYPLC provides pre-tested units that have been verified under load — reducing commissioning time to under 30 minutes in most cases. All units are shipped with a test report confirming output voltage accuracy and ripple specification compliance.

Q4: What does the warranty terms confirmed during quotation cover, and what is the support process?
The warranty terms confirmed during quotation covers all manufacturing defects, component failures, and performance deviations from published specifications under normal industrial operating conditions. If a unit fails within the warranty period, ZYPLC provides a direct replacement from stock — minimizing the logistics delay associated with traditional RMA processes. Support is available via phone and email for technical troubleshooting, compatibility verification, and application guidance. Contact: +86 19859288691 | plc.sales@zyplc.com.
