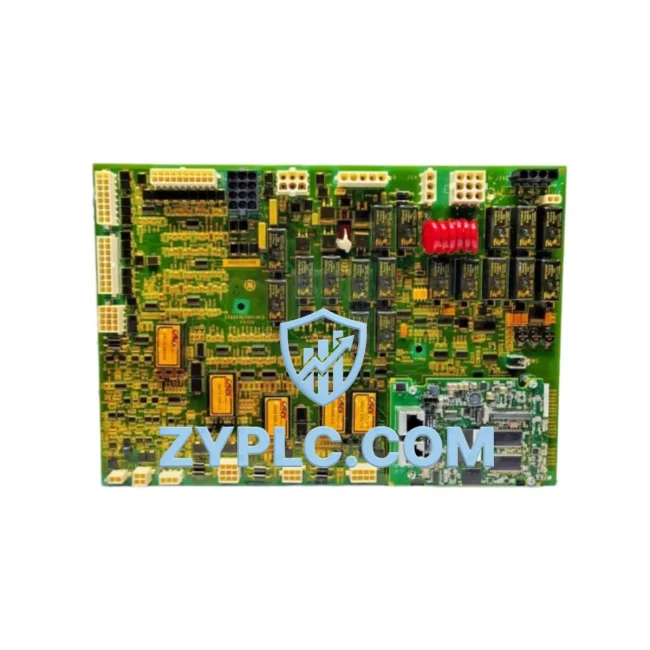

GE IS200BPPBH2CAA System-Ready Power Supply for Mark VI Architecture

GE IS200BPPBH2CAA System-Ready Power Supply for Mark VI Architecture: Control System Coordination and Upstream-Downstream Synergy

The GE IS200BPPBH2CAA is a dedicated power supply board engineered for deployment within the GE Mark VI Turbine Control System architecture. Rather than functioning as a standalone component, this board occupies a critical position in the layered control hierarchy — bridging the power distribution layer with the logic execution layer to ensure stable, uninterrupted operation across the entire control platform. In complex industrial environments such as gas turbine power generation, combined-cycle plants, and heavy process industries, the integrity of the power supply layer directly determines the reliability of every upstream and downstream subsystem. The IS200BPPBH2CAA is designed with this systemic responsibility in mind.

Within the Mark VI architecture, the IS200BPPBH2CAA interfaces directly with the VCMI (VME Communications and Memory Interface) backplane, supplying regulated DC power to the controller cards, I/O terminal boards, and communication modules housed within the same rack assembly. Its role is not merely to convert and distribute power — it actively supports the redundancy model that defines the Mark VI platform. When deployed in a TMR (Triple Modular Redundancy) configuration alongside modules such as the IS200TBAAH1A terminal board assembly and the IS215VCMIH2C VME communication card, the IS200BPPBH2CAA ensures that no single power event can propagate into a control fault. This architecture-level resilience is essential for turbine protection systems operating under IEC 61511 and NFPA 85 compliance frameworks.

Architecture Specification Table

Coordinated Control System Design

The IS200BPPBH2CAA does not operate in isolation. Its value is realized through coordinated interaction with the full suite of Mark VI hardware components. At the controller layer, the IS215UCVEH2A and IS215UCVEH2B UCVE processor cards depend on stable, ripple-free DC power to execute turbine protection logic without interruption. Any voltage deviation at the power supply board level will directly affect scan cycle consistency and watchdog timer behavior in these processors — making the IS200BPPBH2CAA a foundational element of control loop integrity.

At the I/O layer, terminal board assemblies such as the IS200TBAAH1A, IS200TBCIH1C, and IS200TRLYH1C relay output board receive their operating power through the rack backplane, which the IS200BPPBH2CAA feeds. Signal conditioning accuracy on analog input boards like the IS200AAIAH1A depends on clean power rails; ground noise or supply instability introduced at the power board level can manifest as measurement drift in thermocouple and RTD channels — a critical concern in combustion temperature monitoring applications.

At the network and communication layer, the IS215VCMIH2C VME communication interface card manages IONET traffic between the Mark VI controller and the HMI workstation running GE’s ToolboxST configuration environment. This card’s Ethernet PHY and memory subsystems require stable 5 V and 3.3 V rails, both of which originate from the IS200BPPBH2CAA’s regulated outputs. Communication dropouts or CRC errors on the IONET segment are frequently traced back to power supply degradation rather than network hardware faults — underscoring the diagnostic importance of maintaining a healthy IS200BPPBH2CAA in the rack.

In redundant power architectures, the IS200BPPBH2CAA is paired with a secondary power supply module to achieve N+1 redundancy at the rack level. This configuration ensures that a single power supply failure does not interrupt turbine control, allowing maintenance personnel to hot-swap the failed unit without initiating a controlled shutdown. This capability is particularly valued in baseload gas turbine applications where unplanned outages carry significant financial and grid-stability consequences.

At the human-machine interface layer, operator workstations running ToolboxST communicate with the Mark VI controller via the IONET network. The stability of this communication path — and therefore the accuracy of real-time trend data, alarm annunciation, and setpoint adjustment — is contingent on the uninterrupted power delivery that the IS200BPPBH2CAA provides to the VCMI communication card. Engineers performing live calibration or logic downloads depend on this link remaining stable throughout the engineering session.

Application in Layered Automation Systems

Power Generation — Gas and Steam Turbine Plants: The IS200BPPBH2CAA is most commonly deployed in gas turbine control panels where the Mark VI system manages fuel control, compressor protection, exhaust temperature monitoring, and speed governing. In combined-cycle plants, the same Mark VI rack may simultaneously control the gas turbine, steam turbine bypass valves, and HRSG (Heat Recovery Steam Generator) damper actuators. The power supply board’s ability to maintain stable output under varying load conditions — as I/O modules cycle between active scanning and idle states — is essential to preventing nuisance trips in these high-value assets.

Petrochemical and Refinery Process Control: In refinery applications, Mark VI systems are deployed for compressor anti-surge control, fired heater management, and rotating equipment protection. The IS200BPPBH2CAA supports these applications by ensuring that the high-speed analog input boards responsible for vibration and axial displacement monitoring receive clean, stable power. Signal integrity at the I/O layer is non-negotiable in machinery protection applications where response times are measured in milliseconds.

Power Transmission and Substation Automation: Mark VI controllers are also used in substation automation and generator excitation control applications. In these environments, the IS200BPPBH2CAA must perform reliably in the presence of high electromagnetic interference from switchgear and bus bars. Its design incorporates filtering and isolation appropriate for these electrically noisy environments, supporting long-term reliability in utility-grade installations.

Mining and Metals Processing: In mining and smelting operations, Mark VI systems control large drive systems, conveyor protection relays, and process interlocks. The IS200BPPBH2CAA’s robust construction supports operation in environments with elevated ambient temperatures and vibration levels typical of heavy industrial facilities.

Architecture Engineering FAQ

Q1: Is the IS200BPPBH2CAA compatible with both simplex and TMR Mark VI rack configurations?
Yes. The IS200BPPBH2CAA is designed for use in both simplex (single-controller) and TMR (Triple Modular Redundancy) Mark VI rack assemblies. In TMR configurations, three independent power supply boards — one per controller module — provide isolated power rails to each redundant controller, ensuring that a single power supply failure does not affect the voting logic or the system’s ability to maintain safe output states. Compatibility should always be verified against the specific rack assembly drawing and GE Mark VI system documentation for your installation.

Q2: What are the recommended steps for replacing the IS200BPPBH2CAA in a live Mark VI system without initiating a turbine trip?
In a properly configured redundant Mark VI system, the IS200BPPBH2CAA can be replaced without a controlled shutdown, provided the redundant power supply is confirmed healthy and the system is operating in a degraded-but-stable state. The recommended procedure involves: (1) confirming redundant power supply health via ToolboxST diagnostics, (2) notifying the control room operator, (3) carefully extracting the failed board from the rack while monitoring system alarms, and (4) inserting the replacement IS200BPPBH2CAA and verifying output voltage stability before returning the system to normal redundancy status. Always follow site-specific lock-out/tag-out (LOTO) procedures and GE Mark VI maintenance documentation.

Q3: What does the 12-Month Warranty cover for the IS200BPPBH2CAA, and what support is available during the warranty period?
The 12-Month Warranty covers the IS200BPPBH2CAA against defects in materials and workmanship, including electrical component failures, output voltage regulation faults, and backplane interface issues that arise under normal operating conditions. During the warranty period, customers are entitled to technical support for installation and integration questions, as well as replacement or repair of the board if a covered defect is identified. The warranty supports Contextual Integration — meaning the board is validated for use within the specific Mark VI system architecture described at the time of purchase. For warranty claims or technical assistance, contact ZYPLC directly.
