GE IS200ECGIH1A Energy-Saving Terminal Board Mark VI

GE IS200ECGIH1A Energy-Saving Terminal Board Mark VI: Precision Energy Control for Industrial Automation

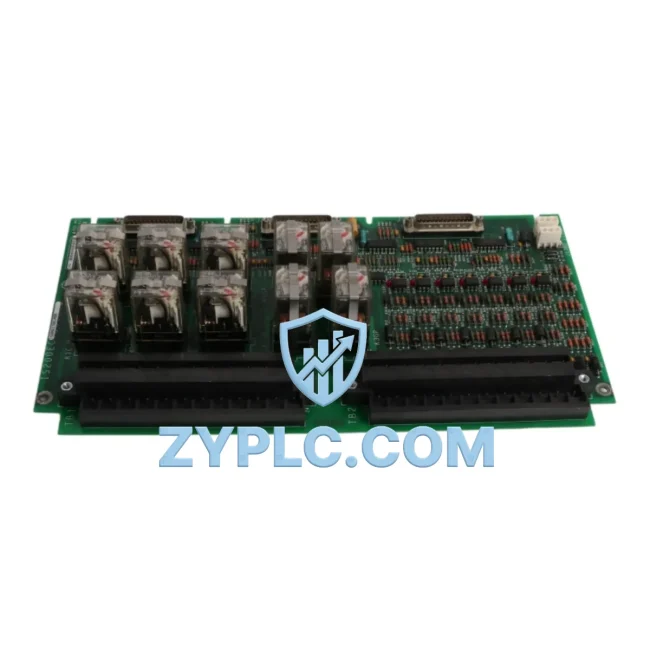

The GE IS200ECGIH1A is a high-efficiency terminal board engineered for the GE Mark VI turbine control platform. Designed to serve as the critical signal interface between field instrumentation and the Mark VI controller core, this terminal board plays a pivotal role in reducing unnecessary energy consumption across gas turbine, steam turbine, and combined-cycle power generation systems. By ensuring clean, low-loss signal transmission and reliable I/O connectivity, the IS200ECGIH1A directly contributes to tighter control loops, faster system response, and measurable reductions in fuel and auxiliary power consumption.

In modern industrial energy optimization strategies, the quality of signal conditioning at the terminal board level determines how accurately the control system can respond to real-time process deviations. A degraded or mismatched terminal board introduces latency and noise into the feedback loop, forcing the turbine control system to compensate with wider operating margins — translating directly into wasted energy. The IS200ECGIH1A eliminates this inefficiency by providing stable, high-integrity I/O termination that keeps the Mark VI controller operating at its designed efficiency envelope.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200ECGIH1A does not operate in isolation — it is the connective tissue of a broader energy-aware automation architecture built around the GE Mark VI control platform. Understanding how this terminal board interacts with surrounding system components reveals its true energy optimization value.

At the controller level, the GE Mark VI VCMI (VME Communication and Memory Interface) module relies on accurate, low-noise I/O data delivered through terminal boards like the IS200ECGIH1A to execute fuel control algorithms with precision. Any signal degradation at the terminal board introduces error into the combustion control loop, increasing specific fuel consumption. Paired with the IS200VTURH1B VTUR turbine control module, the IS200ECGIH1A ensures that speed and temperature feedback signals are captured with the fidelity needed for optimal turbine efficiency curves.

On the drive and actuation side, the Mark VI system frequently interfaces with GE EX2100 excitation control systems and LCI (Load Commutated Inverter) variable frequency drive systems for large synchronous motor starting. The IS200ECGIH1A terminal board provides the clean I/O interface that allows the Mark VI to coordinate with these drive systems, enabling soft-start sequences that dramatically reduce inrush current and peak demand charges — a direct energy cost saving on every startup cycle.

For power quality monitoring and energy metering, the Mark VI architecture integrates with GE Multilin power management relays and energy monitoring modules. The IS200ECGIH1A’s reliable analog input termination ensures that current transformer (CT) and potential transformer (PT) signals from the plant electrical system are accurately routed to the controller, enabling real-time power factor correction and load optimization decisions. This is further supported by IS200EPSMH1A power supply modules that maintain stable bus voltage across the I/O network, preventing voltage sag events that would otherwise corrupt energy measurement data.

Communication and data transparency are equally critical to energy optimization. The Mark VI system uses GE Proficy HMI/SCADA and the IS200STCIH1A serial communication terminal board to relay real-time energy and performance data to plant historians and energy management systems. When the IS200ECGIH1A is functioning correctly, operators receive accurate, low-latency data that enables proactive load shedding, demand response participation, and predictive maintenance scheduling — all of which reduce unnecessary energy expenditure.

In servo and valve control applications, the IS200ECGIH1A works alongside the IS200VSVO servo control module to manage inlet guide vane (IGV) positioning and fuel valve actuation. Precise IGV control is one of the highest-leverage energy optimization levers in gas turbine operation, with even a 1% improvement in IGV positioning accuracy translating to measurable heat rate improvements across a full operating season.

Power Optimization in Real Production Lines

In real-world power generation and industrial process facilities, the IS200ECGIH1A delivers energy optimization benefits across three primary dimensions: reduced control deviation energy waste, lower unplanned downtime energy costs, and improved equipment utilization rates.

Reduced Control Deviation Energy Waste: When terminal board connections are degraded — through corrosion, loose terminations, or component aging — the Mark VI controller receives noisy or offset signals. The controller compensates by widening its control bands, which in a gas turbine translates to higher exhaust temperature variance, increased fuel consumption, and reduced thermal efficiency. Replacing a degraded terminal board with a tested IS200ECGIH1A immediately tightens the control loop, restoring the turbine to its designed heat rate performance. Facilities report fuel savings of 0.5–2% of annual fuel spend following precision I/O restoration projects of this type.

Lower Unplanned Downtime Energy Costs: Unplanned turbine trips caused by I/O faults are among the most energy-expensive events in a power plant’s operational profile. Each cold restart of a gas turbine consumes significant startup fuel and imposes thermal stress that accelerates component wear. The IS200ECGIH1A, supplied with a 12-month warranty and subjected to a rigorous 5-step quality assurance process including functional testing, insulation resistance verification, and signal path continuity checks, provides the reliability needed to prevent I/O-related trips. Every avoided unplanned trip represents not only fuel savings but also avoided wear on combustion liners, transition pieces, and turbine blades.

Improved Equipment Utilization Rates: Planned maintenance windows that include terminal board inspection and replacement allow facilities to maintain high equipment availability factors. A turbine running at 95% availability versus 88% availability due to recurring I/O faults represents a substantial difference in capacity factor and revenue per unit of fuel consumed. The IS200ECGIH1A supports predictive maintenance strategies by providing stable, consistent signal outputs that allow condition monitoring systems to detect early signs of sensor drift, actuator degradation, or process anomalies — enabling maintenance teams to intervene before efficiency losses compound.

From a production line rhythm perspective, facilities that maintain a healthy inventory of critical spare terminal boards like the IS200ECGIH1A report significantly shorter mean time to repair (MTTR) for I/O-related faults. ZYPLC maintains ready stock of the IS200ECGIH1A with same-day shipping capability, ensuring that a terminal board fault does not become a multi-day production outage. All units are shipped with full test documentation and are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does replacing the IS200ECGIH1A terminal board contribute to measurable energy savings?
A: The IS200ECGIH1A restores signal integrity to the Mark VI control loop, allowing the turbine controller to operate with tighter fuel and temperature control bands. This directly reduces specific fuel consumption (heat rate) by eliminating the control margin padding that a degraded I/O path forces the system to maintain. In gas turbine applications, restoring I/O integrity typically yields heat rate improvements of 0.5–2%, which at scale represents significant annual fuel cost reductions.

Q2: Is the IS200ECGIH1A compatible with all Mark VI system configurations?
A: The IS200ECGIH1A is designed for the GE Mark VI turbine control platform and is compatible with standard Mark VI I/O module configurations including VCMI, VTUR, VSVO, and VDYN series modules. Compatibility with specific plant configurations should be verified against the plant’s Mark VI I/O assignment drawings. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the replacement and testing process for the IS200ECGIH1A?
A: All IS200ECGIH1A units supplied by ZYPLC undergo a 5-step quality assurance process: (1) visual inspection for physical damage, (2) insulation resistance testing, (3) signal path continuity verification, (4) functional I/O simulation testing against Mark VI specifications, and (5) final burn-in and documentation. Units are shipped with test reports. On-site replacement follows standard Mark VI maintenance procedures with the turbine in a safe shutdown state.

Q4: What warranty and after-sales support does ZYPLC provide for the IS200ECGIH1A?
A: Every IS200ECGIH1A supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Warranty coverage includes replacement or repair for any unit that fails under normal operating conditions within the warranty period. ZYPLC’s technical support team is available to assist with installation questions, compatibility verification, and troubleshooting throughout the warranty period and beyond.
