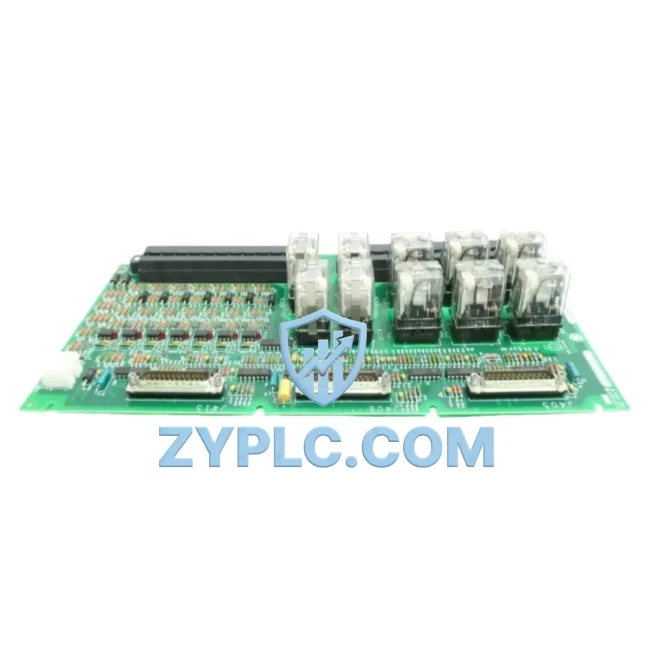

GE IS200ECTBG1A Energy-Saving Exciter Terminal Board

GE IS200ECTBG1A Energy-Saving Exciter Terminal Board: Precision Exciter Control for Mark VI Turbine Efficiency

The GE IS200ECTBG1A is a high-performance exciter contact terminal board engineered for the GE Mark VI Turbine Control System. In modern industrial power generation and heavy manufacturing environments, exciter control accuracy directly determines generator output stability, reactive power balance, and overall plant energy efficiency. The IS200ECTBG1A serves as the critical interface between the Mark VI controller and the excitation system, ensuring that voltage regulation commands are executed with minimal latency and maximum signal fidelity — translating directly into reduced energy waste and optimized generator utilization.

Facilities running GE Mark VI-based turbine control architectures depend on precise exciter feedback loops to maintain grid synchronization and avoid costly reactive power penalties. The IS200ECTBG1A’s robust contact terminal design minimizes signal degradation across the exciter interface, supporting stable closed-loop voltage regulation that reduces unnecessary excitation overcurrent — a common hidden source of energy loss in aging turbine control installations.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200ECTBG1A does not operate in isolation — it is one node in a tightly integrated energy-aware automation architecture. In a typical Mark VI turbine control installation, the exciter terminal board works in concert with the IS200EACFG1A Exciter AC Feedback Board, which captures real-time AC voltage and current signals from the generator excitation circuit. These signals feed into the IS200VCRCH1B Voltage Regulator Control Card, which computes the corrective excitation command and routes it back through the IS200ECTBG1A contact interface to the exciter field circuit.

Upstream, the IS215UCVEH2A Mark VIe VME Controller coordinates turbine speed, load, and excitation setpoints in a unified control loop. The controller communicates with plant-level SCADA and energy management systems via the IS200TREGH1B Ethernet Communication Module, enabling real-time power factor monitoring and remote excitation trim commands — critical capabilities for facilities participating in grid ancillary services markets where reactive power optimization directly reduces energy procurement costs.

On the I/O side, the IS200IOCAG1A I/O Controller Board aggregates discrete contact signals from protection relays, breaker status, and exciter interlock circuits, feeding them into the Mark VI logic solver. Paired with the IS200DSPXH1D Digital Signal Processor Board, the system achieves sub-millisecond excitation response times that prevent voltage transients from propagating into the power network — a key factor in reducing harmonic distortion losses across the plant distribution system.

For facilities with co-located variable-speed drives, the Mark VI excitation control architecture integrates with GE Drive Systems using the IS200PSVOH1A Power Supply Voltage Output Board, ensuring that drive-induced voltage fluctuations on the plant bus do not destabilize the generator excitation loop. The IS200TTURH1C Turbine Terminal Board further extends the system’s energy monitoring reach by consolidating thermocouple and RTD inputs from turbine hot-section sensors, enabling the control system to correlate thermal efficiency data with excitation performance in real time.

Power Optimization in Real Production Lines

In combined-cycle power plants and industrial cogeneration facilities, the exciter control interface is one of the most energy-sensitive points in the entire generation system. A degraded or mismatched exciter terminal board introduces contact resistance variations that corrupt the voltage feedback signal, causing the automatic voltage regulator (AVR) to hunt — oscillating the excitation current above and below the optimal setpoint. This hunting behavior wastes reactive power, increases rotor winding thermal stress, and shortens exciter brush life, all of which translate into measurable increases in maintenance cost and unplanned downtime.

The GE IS200ECTBG1A eliminates these inefficiencies by providing a clean, low-resistance contact interface that maintains signal integrity across the full operating temperature range of the turbine control cabinet. Facilities that have replaced degraded exciter terminal boards with genuine IS200ECTBG1A units consistently report stabilized power factor readings, reduced AVR hunting events, and extended intervals between exciter maintenance cycles — directly improving plant availability and reducing the energy cost per megawatt-hour of generation.

From a production line rhythm perspective, unplanned turbine trips caused by exciter control faults are among the most disruptive events in power-intensive manufacturing facilities. Each trip event not only interrupts production but also requires a full turbine restart sequence that consumes significant auxiliary power and thermal energy. By maintaining a reliable IS200ECTBG1A in service — backed by our in-stock inventory and same-day shipping capability — plant operators can minimize mean time to repair (MTTR) and restore production rhythm with minimal energy penalty.

Our pre-shipment testing protocol subjects every IS200ECTBG1A to a full functional verification under simulated Mark VI operating conditions, including contact resistance measurement, insulation resistance testing, and signal integrity verification across all terminal points. This ensures that the board performs to GE factory specifications from the moment it is installed, eliminating the commissioning delays and re-tuning cycles that often accompany the use of untested replacement parts.

Energy Optimization FAQ

Q1: How does the IS200ECTBG1A contribute to measurable energy savings in a turbine plant?
The IS200ECTBG1A maintains low-resistance, high-integrity contact interfaces in the exciter feedback loop, which stabilizes the automatic voltage regulator and prevents reactive power waste from AVR hunting. Stable excitation control directly improves power factor, reduces rotor thermal losses, and lowers auxiliary power consumption during turbine operation — all contributing to a lower energy cost per unit of generation output.

Q2: Is the IS200ECTBG1A compatible with both Mark VI and Mark VIe control systems?
Yes. The IS200ECTBG1A is designed for the GE Mark VI turbine control platform and is also compatible with Mark VIe installations that retain the same exciter interface architecture. For Mark VIe systems with updated I/O modules, we recommend verifying the exciter interface wiring configuration against the GE Mark VIe system documentation before installation.

Q3: What is the recommended replacement interval, and how do I know when the board needs to be replaced?
GE Mark VI exciter terminal boards typically exhibit degradation symptoms including increased AVR hunting frequency, intermittent exciter fault alarms, and elevated contact resistance readings during routine maintenance. If your Mark VI diagnostics log shows recurring exciter interface faults or your power factor trend data shows increasing instability, the IS200ECTBG1A should be evaluated for replacement. Proactive replacement during scheduled outages is strongly recommended to avoid unplanned trips.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every IS200ECTBG1A supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive test protocol including contact resistance measurement, insulation resistance testing, and full functional verification under simulated Mark VI operating conditions. A test report is available upon request. Units are shipped in anti-static packaging with full traceability documentation.
