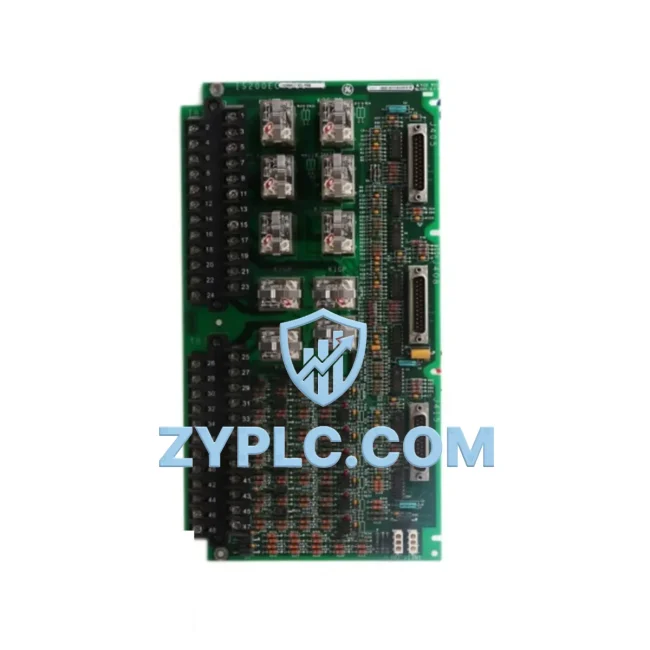

GE IS200ECTBG1ABB Energy-Saving Circuit Board for Mark VI

GE IS200ECTBG1ABB Energy-Saving Circuit Board for Mark VI Automation

The GE IS200ECTBG1ABB is a high-performance excitation control circuit board designed for the GE Mark VI turbine control system. In industrial power generation and heavy manufacturing environments, this module plays a critical role in regulating excitation current, stabilizing generator output voltage, and minimizing reactive power losses — directly contributing to measurable reductions in plant-level energy consumption. By maintaining precise control over generator excitation, the IS200ECTBG1ABB helps facilities avoid the energy penalties associated with under- or over-excitation, improving overall power factor and reducing unnecessary load on auxiliary systems.

Unlike generic replacement boards, the IS200ECTBG1ABB is engineered to integrate seamlessly within the Mark VI distributed control architecture, communicating over the IONet high-speed deterministic network that links turbine control racks. This tight integration ensures that excitation feedback loops operate with minimal latency, enabling the control system to respond rapidly to load transients and grid disturbances — a key factor in reducing energy waste during dynamic operating conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200ECTBG1ABB does not operate in isolation — its energy optimization value is fully realized when it functions as part of a coordinated Mark VI control architecture. In a typical turbine control cabinet, this board works alongside the IS200EACFG1A excitation analog control board and the IS200EPCTG1A excitation power converter board to form a complete excitation regulation loop. The IS200TRLYH1BEC relay output terminal board handles discrete switching commands, while the IS200VTURH1BCC turbine protection module monitors critical operating parameters and triggers protective actions when thresholds are exceeded — preventing energy-wasting fault conditions before they escalate.

On the I/O side, the IS200IOATH1A analog I/O terminal board collects real-time sensor data — including current transformers, voltage transformers, and temperature probes — feeding the excitation control loop with the high-fidelity signals needed for accurate power factor correction. The IS200DSPXH1B digital signal processor board performs the core control calculations, executing excitation algorithms that keep generator output within tight efficiency bands even as load conditions shift across production shifts.

For facilities running integrated plant automation, the Mark VI system communicates upstream to DCS platforms via Modbus TCP or PROFIBUS DP gateways, enabling energy management systems to receive real-time generator efficiency data and adjust dispatch schedules accordingly. HMI terminals running GE Cimplicity or third-party SCADA platforms can visualize excitation trends, power factor curves, and reactive power flows — giving energy managers the visibility needed to identify inefficiency patterns and schedule predictive maintenance before performance degrades.

Power Optimization in Real Production Lines

In gas turbine power plants and combined-cycle facilities, excitation control directly affects fuel efficiency. When the excitation system operates with degraded or faulty control boards, generators may run at suboptimal power factors, forcing the plant to draw additional reactive power from the grid or run auxiliary capacitor banks at higher duty cycles — both of which increase operating costs. The IS200ECTBG1ABB restores precise excitation regulation, allowing the generator to operate at or near unity power factor under normal load conditions, reducing reactive power demand charges and improving overall plant heat rate.

In manufacturing environments where turbine-driven compressors or large synchronous motors are part of the production line, stable excitation control also reduces voltage fluctuations that can disrupt sensitive downstream equipment — including variable frequency drives (VFDs) controlling conveyor systems, pump stations, and HVAC units. By maintaining stable bus voltage, the IS200ECTBG1ABB indirectly protects the efficiency of every motor-driven load on the same electrical bus, reducing nuisance trips, soft-start cycles, and the associated energy spikes that accompany repeated motor restarts.

From a maintenance perspective, replacing a degraded excitation control board proactively — rather than waiting for a forced outage — eliminates the energy and production losses associated with unplanned downtime. Each unplanned turbine trip in a power generation facility can result in hours of lost generation capacity and significant restart fuel consumption. The IS200ECTBG1ABB, backed by a 12-month warranty and fully tested prior to shipment, provides the reliability assurance needed to support planned maintenance windows and minimize mean time between failures (MTBF) in critical excitation circuits.

All units are sourced from verified supply channels, undergo comprehensive functional testing on GE Mark VI-compatible test benches, and are shipped with full documentation. Inventory is maintained in-house to support urgent dispatch requirements, with same-day or next-business-day shipping available for in-stock units.

Energy Optimization FAQ

Q1: How does the IS200ECTBG1ABB contribute to energy savings in a turbine plant?
By precisely regulating generator excitation current, this board maintains optimal power factor, reducing reactive power losses and lowering reactive demand charges. Stable excitation also prevents voltage instability that can force auxiliary systems to operate at higher energy consumption levels.

Q2: Is the IS200ECTBG1ABB compatible with all Mark VI system configurations?
The IS200ECTBG1ABB is designed for GE Mark VI turbine control systems. Compatibility depends on your specific rack configuration and firmware revision. We recommend verifying your system’s Bill of Materials (BOM) or contacting our technical team with your Mark VI configuration details before ordering.

Q3: Can this board replace a failed excitation module without a full system shutdown?
In most Mark VI configurations, board replacement requires a controlled maintenance window. Hot-swap capability depends on your system’s redundancy configuration. Our technical team can advise on the safest replacement procedure for your specific installation to minimize production downtime and energy disruption.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every IS200ECTBG1ABB unit undergoes full functional testing on Mark VI-compatible test equipment prior to shipment, verifying excitation control logic, communication integrity, and analog signal accuracy. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are repaired or replaced at no charge.
