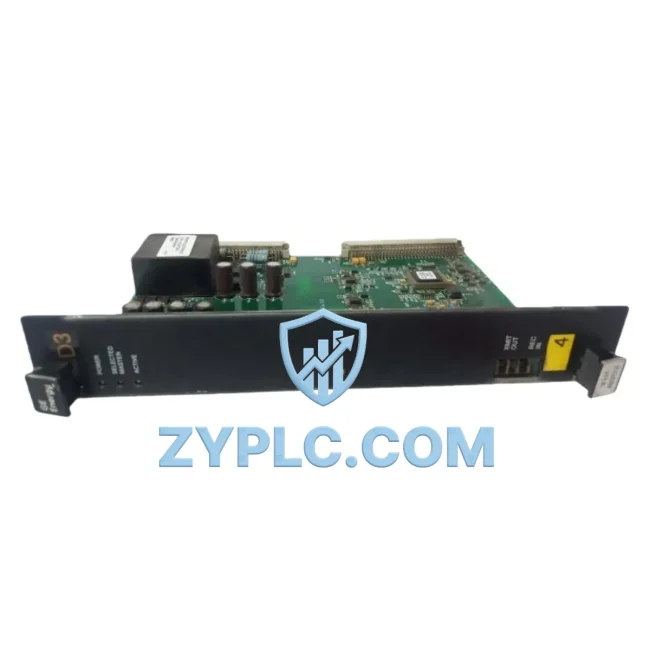

GE IS200EGDMH1AFG System-Ready Ethernet Gateway for Mark VI Architecture

GE IS200EGDMH1AFG System-Ready Ethernet Gateway for Mark VI Control System Architecture

The GE IS200EGDMH1AFG is a high-performance Ethernet Gateway Module engineered for seamless integration within the GE Mark VI Turbine Control System architecture. Designed to serve as the critical communication bridge between the control layer and the plant-wide network infrastructure, this module enables deterministic, high-speed data exchange across distributed control environments. Rather than functioning as a standalone component, the IS200EGDMH1AFG is conceived as a system-level asset — one that enhances overall architecture coherence, supports redundant communication pathways, and simplifies long-term maintenance across multi-tier automation platforms including GE’s Mark VI and EX2100 excitation control systems.

In modern industrial automation, the integrity of the communication layer is as critical as the control logic itself. The IS200EGDMH1AFG addresses this requirement by providing a robust Ethernet gateway function that connects the Mark VI’s internal IONet (I/O Network) to external Ethernet-based supervisory systems, historian servers, and HMI platforms. This contextual integration capability ensures that real-time turbine data — including speed, temperature, vibration, and flame detection signals — is accurately transmitted to higher-level SCADA and DCS layers without latency or data loss.

Architecture Specification Table

Coordinated Control System Design

The IS200EGDMH1AFG does not operate in isolation — its value is fully realized when deployed within a complete Mark VI control system architecture. At the control layer, the module interfaces directly with the IS215UCVEH2A Mark VIe Controller Board, which serves as the primary CPU managing turbine sequencing, protection logic, and closed-loop control. The gateway module translates the controller’s internal IONet communications into standard Ethernet frames, enabling upstream connectivity to plant DCS platforms and historian systems.

On the I/O layer, the IS200EGDMH1AFG works in conjunction with I/O terminal boards such as the IS200TBAIH2BCD Analog Input Terminal Board and the IS200TBCIH1C Contact Input Terminal Board, which aggregate field signals from thermocouples, pressure transmitters, and discrete sensors. These signals are processed by the controller and then made available to the Ethernet gateway for transmission to supervisory systems. The gateway ensures that I/O data integrity is preserved across the network boundary, supporting accurate process visualization and alarm management at the HMI layer.

For power distribution, the Mark VI architecture relies on dedicated power supply modules such as the IS200EPCTG1A Power Controller Board, which conditions and distributes 24 VDC across the VME backplane. The IS200EGDMH1AFG draws its operating power from this backplane, ensuring that communication functions remain active even during partial system faults. This design supports the Mark VI’s inherent TMR (Triple Modular Redundancy) philosophy, where three independent control paths — each with its own gateway and I/O modules — vote on control outputs to eliminate single points of failure.

At the network layer, the IS200EGDMH1AFG connects to plant-wide Ethernet switches and routers, enabling integration with GE Proficy Historian servers and iFIX SCADA platforms. In redundant architectures, dual IS200EGDMH1AFG modules are deployed — one active, one standby — ensuring continuous data flow even during module replacement or network reconfiguration. This redundancy is further supported by the IS200EPDMG1B Ethernet Protection Module, which monitors gateway health and initiates automatic failover when communication anomalies are detected.

For human-machine interface integration, the gateway’s Ethernet output feeds directly into GE Cimplicity HMI workstations and operator panels, providing real-time turbine status, alarm annunciation, and trend data. In EX2100 excitation control applications, the IS200EGDMH1AFG similarly bridges the excitation controller’s internal bus to the plant DCS, enabling coordinated voltage regulation and reactive power management across the generator control architecture.

Application in Layered Automation Systems

The IS200EGDMH1AFG finds application across a broad spectrum of industrial sectors where GE Mark VI turbine control systems are deployed. In power generation facilities — including gas turbine, steam turbine, and combined-cycle plants — the module serves as the communication backbone between the turbine control panel and the plant-wide energy management system. Operators rely on the gateway’s real-time data transmission to monitor turbine performance, coordinate load dispatch, and respond to grid frequency events.

In petrochemical and refinery environments, the IS200EGDMH1AFG enables integration between GE turbine-driven compressor controls and the facility’s DCS platform, supporting coordinated process control across compression trains, heat exchangers, and separation units. The module’s robust Ethernet communication ensures that compressor surge protection data and vibration monitoring signals are continuously available to the process control layer.

In mining and metallurgical applications, where large electric motors and turbine-driven equipment operate under demanding conditions, the IS200EGDMH1AFG provides reliable communication between the Mark VI control system and the plant’s SCADA infrastructure. This connectivity supports predictive maintenance programs by enabling continuous transmission of equipment health data to historian and analytics platforms.

For water treatment and municipal utility operators, the gateway module facilitates integration between turbine-driven pump controls and the facility’s supervisory control system, supporting automated flow management, pressure regulation, and alarm response across distributed pump stations. The module’s 12-Month Warranty and proven field reliability make it a preferred choice for critical infrastructure applications where unplanned downtime carries significant operational and regulatory consequences.

Architecture Engineering FAQ

Q1: Is the IS200EGDMH1AFG compatible with both Mark VI and Mark VIe control systems?
Yes. The IS200EGDMH1AFG is designed for use within the GE Mark VI VME-based architecture and is also compatible with Mark VIe systems when installed in the appropriate backplane configuration. For Mark VIe deployments, verify backplane slot assignments and IONet addressing with the system’s configuration tool (ToolboxST) to ensure proper module recognition and communication mapping. Contextual Integration with upstream DCS and historian platforms is supported in both architectures.

Q2: Can the IS200EGDMH1AFG be used in a redundant communication architecture, and what is required?
Yes. Redundant gateway configurations are supported by deploying two IS200EGDMH1AFG modules in designated redundant slots within the Mark VI rack. Each module connects to an independent Ethernet switch, providing dual communication paths to the plant network. Failover between active and standby gateways is managed by the Mark VI controller’s communication health monitoring logic. Ensure that both modules are configured with matching IONet node addresses and Ethernet IP parameters within ToolboxST to enable seamless failover without data interruption.

Q3: What does the 12-Month Warranty cover, and how is long-term maintenance supported?
The IS200EGDMH1AFG supplied by ZYPLC includes a 12-Month Warranty covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Warranty service includes module replacement or repair, with technical support available throughout the warranty period. For long-term maintenance, ZYPLC maintains inventory of IS200EGDMH1AFG and related Mark VI modules, enabling rapid replacement to minimize turbine downtime. Customers are encouraged to maintain a spare module on-site as part of their critical spares program, particularly in single-gateway configurations where communication redundancy is not implemented.
