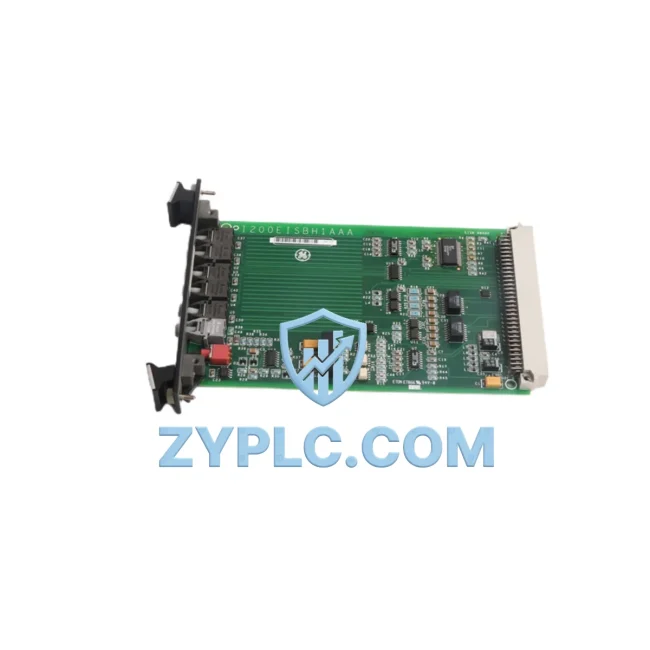

GE IS200EISBH1A System-Ready Fiber Optic Board for Mark VI Architecture

GE IS200EISBH1A System-Ready Fiber Optic Board for Mark VI Architecture

The GE IS200EISBH1A (also catalogued as IS200EISBH1AAA) is a dedicated fiber optic interface board engineered for seamless integration within the GE Mark VI Speedtronic turbine control architecture. Rather than functioning as a standalone component, this board occupies a precise role within a layered automation hierarchy — bridging high-speed optical signal transmission between the control layer and the I/O subsystem, ensuring deterministic communication across the entire turbine management platform. In distributed control environments where signal integrity, latency, and redundancy are non-negotiable, the IS200EISBH1A delivers the optical backbone that keeps the system coherent under continuous industrial load.

Within the Mark VI control framework, the IS200EISBH1A interfaces directly with the VCMI (VME Communication and Memory Interface) board and the PPRO (Protection Processor) module, forming the optical data highway that connects the controller core to field I/O packs such as the VSVO, VTUR, and VGEN terminal boards. This architecture ensures that analog and digital signals from sensors, actuators, and transducers are transmitted with minimal electromagnetic interference — a critical requirement in high-voltage generator halls, gas turbine enclosures, and steam turbine control rooms where copper-based signal paths are vulnerable to noise-induced faults.

Architecture Specification Table

Coordinated Control System Design

The IS200EISBH1A does not operate in isolation. Its value is fully realized when considered within the complete Mark VI control cabinet assembly. At the controller core, the IS200EISBH1A works in tandem with the IS215VCMIH2B VCMI board, which manages VME bus arbitration and memory-mapped I/O coordination. The optical signals routed through the IS200EISBH1A feed directly into the IS215PPROS1B Protection Processor, which executes turbine protection logic and trip sequencing in real time.

On the I/O side, the fiber optic link established by the IS200EISBH1A connects to terminal boards including the IS200VTURH1B turbine I/O board for speed and temperature signal conditioning, the IS200VSVO servo output board for valve and actuator control, and the IS200VGEN generator protection terminal board for electrical parameter monitoring. These boards are mounted on the IS200ISBAH1A I/O pack backplane, which provides the mechanical and electrical interface between the VME rack and the field wiring terminals.

Power integrity across the system is maintained by the IS200EPBAG1A power supply board, which conditions incoming AC or DC supply into the regulated voltages required by the VME backplane and all installed modules. In redundant configurations, a secondary power supply module mirrors this function, ensuring no single point of failure in the power distribution layer.

For operator interface and system diagnostics, the Mark VI architecture typically integrates an HMI workstation running GE’s ToolboxST configuration software, connected via Ethernet to the VCMI board. This allows engineers to monitor fiber optic link status, perform board-level diagnostics, and execute firmware updates without interrupting turbine operation. The IS200EISBH1A’s optical link status is visible in real time through ToolboxST’s I/O diagnostics panel, enabling rapid fault isolation during commissioning and maintenance cycles.

In TMR (Triple Modular Redundancy) deployments, three IS200EISBH1A boards operate in parallel across three independent controller racks — designated R, S, and T — with voting logic implemented at the PPRO level. This architecture ensures that a single board failure does not interrupt turbine control, as the remaining two channels continue to provide valid optical data. The 12-Month Warranty covering the IS200EISBH1A supports long-term maintenance planning, with guaranteed replacement or repair for any board-level defect arising within the warranty period.

Application in Layered Automation Systems

The IS200EISBH1A finds application across a broad range of heavy industrial environments where the GE Mark VI platform has been deployed as the primary turbine control system.

In combined-cycle power plants, the board supports the optical communication backbone between the gas turbine controller and the heat recovery steam generator (HRSG) control system, ensuring synchronized startup and load-following sequences. In petrochemical and refinery applications, the IS200EISBH1A enables reliable signal transmission in environments with high electromagnetic interference from variable-frequency drives, large motor starters, and high-voltage switchgear — conditions where copper-based communication would introduce unacceptable noise margins.

In offshore oil and gas platforms, the board’s fiber optic architecture provides inherent galvanic isolation between the control room and hazardous-area field devices, satisfying IEC 60079 and ATEX installation requirements for intrinsically safe system design. For steel mill and metallurgical applications, the IS200EISBH1A supports turbine-driven compressor control systems where continuous operation is critical to blast furnace and rolling mill production schedules.

In water treatment and pumping stations using turbine-driven high-capacity pumps, the Mark VI system with IS200EISBH1A provides the communication reliability needed for unattended remote operation, with fiber optic links immune to the ground potential differences common in large pumping infrastructure. Across all these applications, the board’s Contextual Integration capability — its ability to slot into an existing Mark VI architecture without requiring system-wide reconfiguration — makes it the preferred replacement choice for maintenance engineers managing aging turbine control systems.

Architecture Engineering FAQ

Q1: Is the IS200EISBH1A compatible with both Mark VI and Mark VIe control systems?
The IS200EISBH1A is specifically designed for the GE Mark VI Speedtronic platform. While the Mark VIe system shares architectural lineage with the Mark VI, it uses a different I/O pack communication protocol (Ethernet-based IONet rather than the legacy optical bus). Direct installation of the IS200EISBH1A into a Mark VIe rack is not supported without engineering review. For Mark VIe applications, consult the IS200 series compatibility matrix or contact our technical team to confirm the correct fiber optic interface module for your specific controller revision.

Q2: What is covered under the 12-Month Warranty, and how does it support long-term maintenance planning?
The 12-Month Warranty covers all manufacturing defects, component failures, and functional faults identified under normal operating conditions from the date of shipment. This includes board-level repair or full replacement at no additional cost. For maintenance engineers managing multi-year turbine overhaul schedules, the warranty period aligns with typical annual inspection intervals, allowing boards replaced during a planned outage to remain under warranty through the next scheduled maintenance window. Warranty claims are processed with documented test reports confirming the fault condition.

Q3: Can the IS200EISBH1A be installed as a hot-swap replacement during turbine operation in a TMR system?
In a properly configured TMR architecture, the Mark VI system can tolerate the removal and replacement of a single controller channel while the remaining two channels maintain turbine control. However, hot-swap procedures for the IS200EISBH1A require strict adherence to GE’s Mark VI maintenance procedures, including proper ESD precautions, fiber optic connector cleaning, and ToolboxST diagnostic confirmation of optical link re-establishment before returning the replaced channel to service. It is strongly recommended that hot-swap replacements be performed by qualified GE Mark VI system engineers or certified automation technicians to avoid inadvertent protection system impairment.
