GE IS200ESYSH2A Energy-Saving Exciter Sync Module Mark VI

GE IS200ESYSH2A Energy-Saving Exciter Sync Module for Optimized Mark VI Automation

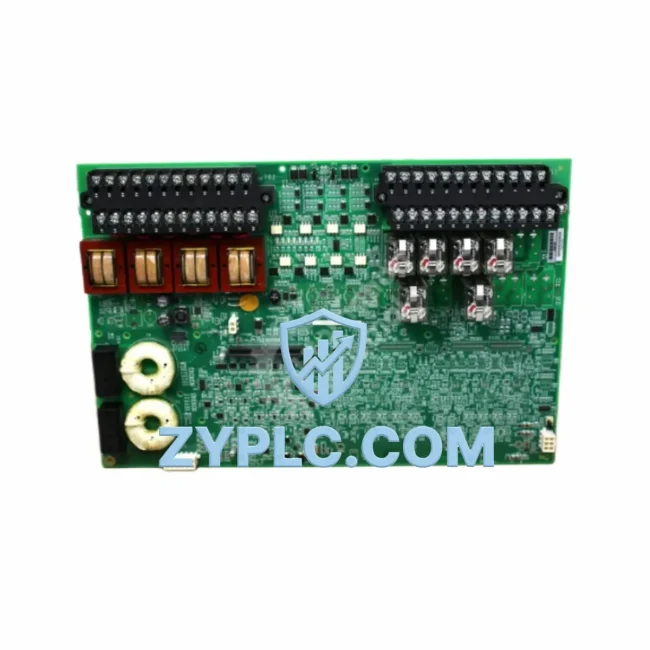

The GE IS200ESYSH2A is a high-performance exciter synchronization module engineered for the GE Mark VI turbine control platform. Designed to operate within demanding industrial power generation and heavy manufacturing environments, this module plays a critical role in regulating excitation current, synchronizing generator output, and maintaining stable voltage across the turbine-generator set. By precisely managing the excitation cycle, the IS200ESYSH2A directly reduces reactive power losses, minimizes unnecessary energy draw during partial-load operation, and supports a leaner, more efficient power generation profile across the entire production line.

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the ability to fine-tune excitation control is not merely a technical requirement — it is a strategic energy optimization lever. The IS200ESYSH2A enables plant engineers to reduce excitation overshoot, eliminate voltage hunting, and maintain tighter frequency regulation, all of which translate into measurable reductions in fuel consumption and heat dissipation at the generator level.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200ESYSH2A does not operate in isolation. Its energy optimization value is fully realized when integrated within a well-structured Mark VI control architecture. In a typical turbine automation system, the IS200ESYSH2A works in close coordination with the IS200EACFG1A exciter application card, which handles the high-level excitation control logic, and the IS200VCRCH1B voltage regulator card, which provides closed-loop AVR (Automatic Voltage Regulator) feedback to stabilize generator terminal voltage under varying load conditions.

On the I/O side, the IS200IOCIH1A I/O controller interface module routes real-time analog and digital signals between field sensors and the Mark VI processor rack, ensuring that excitation commands are executed with minimal latency. This tight signal loop is essential for preventing energy-wasting voltage transients during load changes or grid disturbances.

For drive-level energy management, many facilities pair the Mark VI excitation system with GE AF-650GP or GE AF-600FP series variable frequency drives (VFDs) on auxiliary motor circuits — including cooling fans, lube oil pumps, and fuel gas compressors. These VFDs reduce motor energy consumption by matching rotational speed to actual process demand rather than running at fixed full speed, a strategy that can reduce auxiliary power consumption by 20–40% depending on load profile.

Power quality monitoring is handled upstream by modules such as the IS200PTURH1B turbine protection card and the IS200TREGH1B trip relay module, which together provide real-time protection against overcurrent, overvoltage, and frequency deviation events that would otherwise force unplanned shutdowns and energy-intensive restart cycles. Integrating these protection layers with the IS200ESYSH2A’s synchronization output creates a self-correcting energy management loop that keeps the turbine operating within its optimal efficiency band.

HMI visibility is provided through GE Cimplicity SCADA or compatible third-party HMI panels connected via the Mark VI’s IONet Ethernet backbone, giving operators real-time dashboards of excitation current, power factor, and reactive power — the key metrics for identifying energy waste at the generator level.

Power Optimization in Real Production Lines

In gas turbine power plants and cogeneration facilities, excitation instability is one of the leading causes of unplanned derating events — situations where the turbine must reduce output to protect the generator from voltage or current excursions. Each derating event represents not only lost generation capacity but also increased specific fuel consumption, as the turbine operates away from its designed efficiency point. The IS200ESYSH2A addresses this directly by providing stable, low-latency synchronization signals that keep the excitation system locked to the generator’s actual operating state.

For facilities running multiple turbine-generator sets in parallel, the synchronization accuracy of the IS200ESYSH2A is critical for load sharing. Poor synchronization between units forces reactive power circulation between generators — a form of internal energy loss that increases winding temperatures, accelerates insulation aging, and raises maintenance frequency. By maintaining precise phase and voltage synchronization, the IS200ESYSH2A reduces reactive circulation losses and extends the service interval of generator windings and exciter components.

From a predictive maintenance perspective, the IS200ESYSH2A’s stable output signals provide a reliable baseline for condition monitoring systems. Deviations from normal excitation patterns — detectable through the Mark VI’s onboard diagnostics or via external power quality analyzers — serve as early indicators of developing faults in the exciter diode bridge, field winding, or AVR feedback circuit. Catching these faults early eliminates the energy and production cost of emergency shutdowns and allows maintenance to be scheduled during planned outage windows.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including excitation signal output verification, backplane communication checks, and thermal cycling validation. This ensures that replacement modules perform to OEM specification from the first power-on, eliminating the energy waste and production disruption associated with infant-failure returns. Every IS200ESYSH2A is backed by a 12-month warranty and supported by our technical team for installation guidance and system integration advice.

Energy Optimization FAQ

Q1: How does the IS200ESYSH2A contribute to reducing turbine energy consumption?
The IS200ESYSH2A optimizes excitation synchronization, which directly reduces reactive power losses and prevents voltage hunting. Stable excitation means the turbine-generator operates closer to its rated power factor, reducing fuel consumption per unit of electrical output and minimizing heat losses in the generator windings.

Q2: Is the IS200ESYSH2A compatible with both Mark VI and Mark VIe control systems?
The IS200ESYSH2A is designed for the GE Mark VI platform. Compatibility with Mark VIe systems depends on the specific rack configuration and firmware version. We recommend providing your full system configuration details so our technical team can confirm compatibility before ordering.

Q3: What is the recommended replacement procedure, and how does it minimize production downtime?
Module replacement follows standard Mark VI hot-swap protocols where supported, or requires a controlled shutdown sequence for non-redundant configurations. ZYPLC provides pre-tested, pre-configured replacement modules to minimize commissioning time. Our technical support team can guide your engineers through the swap procedure to ensure the turbine returns to full-efficiency operation as quickly as possible.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Every IS200ESYSH2A supplied by ZYPLC is tested for full functional operation including signal output integrity, backplane communication, and thermal performance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our quality control process includes burn-in testing and final inspection documentation shipped with each unit.
