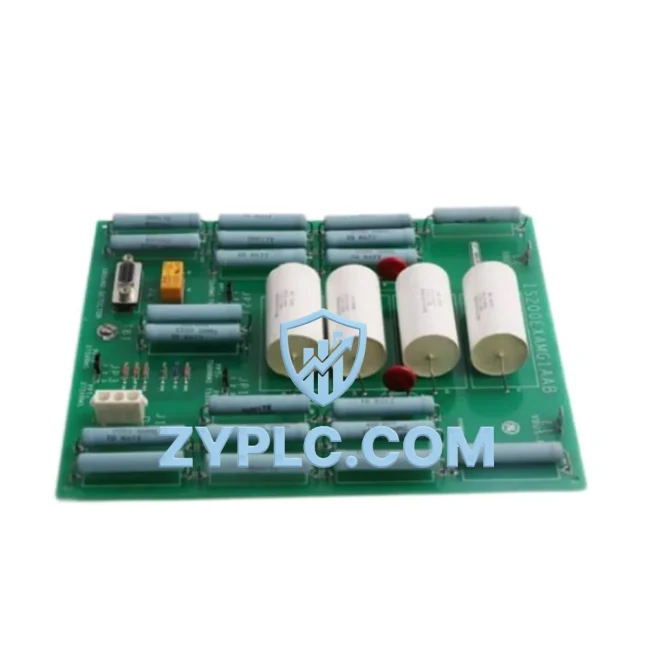

The GE IS200EXAMG1A is a precision-engineered exciter attenuator module designed for the GE Mark VI turbine control platform. In modern industrial power generation and heavy-process environments, excitation system efficiency is a critical but often overlooked lever for reducing total energy consumption. The IS200EXAMG1A addresses this directly — by conditioning and attenuating excitation signals with high fidelity, it minimizes reactive power losses, stabilizes generator output, and reduces the thermal stress that leads to premature component failure and unplanned downtime.

For plant engineers focused on energy key performance indicators (KPIs), deploying the IS200EXAMG1A as part of a fully optimized Mark VI control architecture delivers measurable improvements in equipment utilization rates, production line cycle times, and overall electrical efficiency. Every unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200EXAMG1A does not operate in isolation — its energy optimization value is fully realized when integrated within a coherent Mark VI control architecture. In a typical turbine control cabinet, the module works in concert with the IS200EACFG1A exciter application card, which governs the overall excitation control logic, and the IS200EPCTG1A exciter protection card, which safeguards the generator field circuit against overvoltage and overcurrent events that waste energy and damage insulation.

On the I/O side, modules such as the IS200VTURH1BBA turbine I/O board and the IS200TRLYH1BCC relay output board collect real-time process signals — rotor speed, generator terminal voltage, field current — and feed them back into the Mark VI controller. This closed-loop feedback is what allows the excitation system to continuously trim reactive power output to match actual grid demand, rather than running at a fixed, wasteful setpoint.

For drive-side energy management, the Mark VI platform often interfaces with GE’s LCI (Load Commutated Inverter) drive systems and IS200DSPXH1D digital signal processing boards, which regulate motor speed and torque in variable-load applications. Pairing the IS200EXAMG1A’s clean excitation signal with a properly tuned LCI drive eliminates harmonic distortion that would otherwise inflate apparent power consumption and reduce power factor across the production line.

Communication and data transparency are handled through modules like the IS200VSVOH1B servo control board and the IS200STCIH1A communication interface card, which relay energy and performance data to plant-level SCADA or DCS systems. When operators can see real-time excitation efficiency data alongside turbine heat rate and generator output, they can make informed decisions about load scheduling, maintenance windows, and energy procurement — all of which directly impact operating costs.

Power quality monitoring is further supported by the IS200PSVCG1A power supply verification card, which ensures that the 24 VDC backplane supply feeding the IS200EXAMG1A and adjacent modules remains within tolerance. Voltage sag or ripple on the control power bus can introduce measurement errors in excitation feedback, causing the AVR (Automatic Voltage Regulator) to overcorrect and waste reactive power. Stable control power, verified continuously, is a prerequisite for efficient excitation management.

Power Optimization in Real Production Lines

In gas turbine power plants operating in combined-cycle or simple-cycle mode, the excitation system accounts for a non-trivial share of auxiliary power consumption. An attenuator module that introduces signal noise or impedance mismatch forces the AVR to hunt — oscillating around the setpoint and consuming excess field current in the process. The IS200EXAMG1A eliminates this hunting behavior by delivering a clean, stable attenuation characteristic that the Mark VI excitation controller can rely on without correction cycles.

For facilities running multiple generating units, the cumulative effect is significant. Across a four-unit gas turbine plant, reducing excitation-related auxiliary losses by even 0.5% per unit can translate to hundreds of megawatt-hours of recovered energy annually — energy that was previously dissipated as heat in the field winding and exciter transformer. This directly improves the plant heat rate and reduces fuel consumption per unit of electrical output.

From a maintenance cost perspective, the IS200EXAMG1A’s stable signal conditioning reduces thermal cycling stress on adjacent components in the Mark VI cabinet. Lower operating temperatures extend the service life of capacitors, optocouplers, and PCB traces throughout the excitation control chain. Predictive maintenance intervals can be extended, and the frequency of unplanned outages caused by excitation system faults decreases — both of which improve overall equipment effectiveness (OEE) and reduce the cost per operating hour.

During commissioning or replacement scenarios, the module’s compatibility with the standard Mark VI backplane means zero custom wiring or firmware changes are required. Swap time is minimized, production line restart is faster, and the risk of introducing configuration errors — which can cause inefficient operation for weeks before being detected — is eliminated. All units shipped by ZYPLC are tested against Mark VI signal specifications before dispatch, ensuring the module performs to GE’s original efficiency standards from the first power-on.

Energy Optimization FAQ

Q1: How does the IS200EXAMG1A contribute to measurable energy savings in a Mark VI turbine control system?
The module conditions and attenuates excitation feedback signals with high precision, preventing AVR hunting and over-excitation. This reduces reactive power output to the minimum required for voltage stability, lowering field current draw and reducing heat generation in the exciter and generator field winding. In continuous-operation plants, this translates to a lower auxiliary power consumption ratio and improved generator efficiency.

Q2: Is the IS200EXAMG1A compatible with both Mark VI and Mark VIe control platforms?
The IS200EXAMG1A is designed for the GE Mark VI turbine control system. Compatibility with Mark VIe configurations depends on the specific backplane and I/O architecture of the installation. We recommend confirming the exact system revision and slot assignment with your control system documentation before ordering. Our technical team can assist with cross-referencing if needed.

Q3: What is the recommended replacement or upgrade path if the existing exciter attenuator module is causing excitation instability?
If the existing module shows signs of signal drift, increased AVR correction frequency, or elevated field current at steady-state load, direct replacement with a new IS200EXAMG1A is the recommended first step. Before replacement, verify that the IS200EACFG1A exciter application card and IS200EPCTG1A protection card are also within specification, as a degraded attenuator can mask or be masked by faults in adjacent excitation modules.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every IS200EXAMG1A unit undergoes functional testing against GE Mark VI signal specifications prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail to perform to specification within the warranty period are eligible for replacement or refund. Contact our team at plc.sales@zyplc.com with your order details and fault description to initiate a warranty claim.
