GE IS200TPROH1B Energy-Saving Termination Board Mark VI

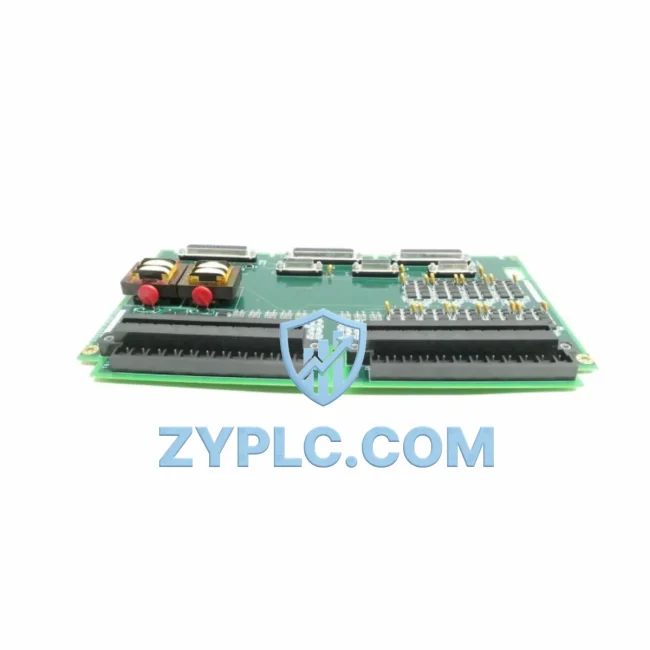

GE IS200TPROH1B Energy-Saving Termination Board for Mark VI Automation Control

The GE IS200TPROH1B is a high-precision termination board module engineered for the GE Mark VI turbine control platform. Designed to serve as the critical signal interface layer between field instrumentation and the Mark VI controller core, this module plays a foundational role in reducing signal loss, minimizing unnecessary energy draw from redundant wiring paths, and ensuring that every I/O channel operates at peak electrical efficiency. In modern industrial facilities where turbine uptime and energy cost per MWh are tightly monitored KPIs, the IS200TPROH1B delivers the signal integrity and low-impedance termination architecture that keeps control loops stable and power consumption predictable.

Unlike generic termination solutions, the IS200TPROH1B is purpose-built for the Mark VI ecosystem, ensuring seamless compatibility with GE’s distributed control architecture. When integrated with the IS200TBAIH1B analog input terminal board and the IS200VSVOH1B servo driver board, the system achieves a tightly coupled control chain that eliminates signal degradation between the field and the controller — a common source of hidden energy waste in aging turbine control systems. Proper termination reduces the need for signal amplification, which in turn lowers auxiliary power consumption across the I/O subsystem.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200TPROH1B does not operate in isolation — its energy optimization value is fully realized when it functions as part of a coherent Mark VI control architecture. In a typical combined-cycle power plant, the Mark VI controller rack houses multiple I/O boards, each responsible for a specific signal domain. The IS200TPROH1B serves as the termination interface for protection and regulation I/O channels, working in concert with boards such as the IS200TRLYH1B relay output board, which handles discrete trip and alarm outputs, and the IS200TTURH1B turbine protection board, which monitors critical speed and temperature thresholds.

On the drive side, the Mark VI system interfaces with servo actuators through the IS200VSVOH1B servo driver, which modulates fuel valve position with sub-millisecond response times. Accurate termination from the IS200TPROH1B ensures that the servo command signals arrive without distortion, preventing over-travel events that waste fuel and increase thermal stress on turbine components. Similarly, the IS200TBAIH1B analog input board, which collects thermocouple and pressure transducer data, depends on clean termination to deliver accurate readings to the PID control loops — inaccurate readings force the controller to compensate with excess fuel flow, directly increasing specific fuel consumption.

For facilities running GE’s Mark VIe distributed architecture, the IS200TPROH1B integrates into an IONet-based communication backbone alongside IS200ECTBG1A Ethernet communication boards, enabling real-time data exchange between the turbine controller and plant-level SCADA or DCS systems. This connectivity supports energy monitoring dashboards that track heat rate, auxiliary power consumption, and emissions per unit of output — all critical metrics for ISO 50001 energy management compliance.

Power quality at the controller level is maintained by the IS200EPCTG1A power supply board, which provides regulated 28 VDC to the I/O subsystem. A stable power supply reduces micro-interruptions that can cause spurious I/O reads, forcing unnecessary control corrections that consume additional actuator energy. The IS200TPROH1B’s role in maintaining clean signal paths directly supports the power supply’s ability to operate within its rated efficiency band.

Power Optimization in Real Production Lines

In gas turbine power generation, every percentage point of heat rate improvement translates directly into fuel cost savings and reduced CO₂ output. The IS200TPROH1B contributes to heat rate optimization by ensuring that the Mark VI controller receives accurate, noise-free signals from field instruments. When termination boards are worn, corroded, or improperly matched, signal noise introduces errors into the temperature and pressure measurements that the controller uses to calculate optimal fuel-to-air ratios. The result is a turbine running slightly off its efficiency peak — a condition that may go undetected for months but accumulates significant fuel waste over time.

Beyond fuel efficiency, the IS200TPROH1B reduces unplanned downtime — one of the largest hidden energy costs in industrial operations. When a turbine trips unexpectedly due to a false signal caused by a degraded termination board, the restart sequence consumes substantial auxiliary power and subjects the turbine to thermal cycling stress that accelerates component wear. By maintaining reliable signal termination, the IS200TPROH1B helps operations teams achieve longer mean time between failures (MTBF) and reduces the frequency of energy-intensive restart cycles.

Predictive maintenance programs benefit directly from the signal quality improvements delivered by the IS200TPROH1B. When vibration sensors, exhaust temperature thermocouples, and inlet pressure transducers all report through clean termination paths, condition monitoring algorithms can detect subtle performance degradation trends weeks before they cause a failure. This allows maintenance teams to schedule interventions during planned outages rather than emergency shutdowns, optimizing both energy use and labor costs. Plants using GE’s Asset Performance Management (APM) platform see the greatest benefit, as APM’s machine learning models require high-fidelity sensor data to generate accurate remaining useful life predictions.

For facilities managing multiple turbine units, the IS200TPROH1B supports fleet-wide energy benchmarking by ensuring that each unit’s control system reports consistent, comparable data. When one unit’s termination board is degraded, its reported performance metrics diverge from actual conditions, making it impossible to accurately compare unit efficiency across the fleet. Replacing degraded IS200TPROH1B modules restores data integrity and enables operations teams to identify which units offer the greatest opportunity for efficiency improvement — a critical capability for facilities participating in capacity markets where dispatch decisions are based on real-time heat rate data.

Energy Optimization FAQ

Q1: How does the IS200TPROH1B contribute to energy savings in a Mark VI turbine control system?
The IS200TPROH1B ensures low-impedance, noise-free signal termination between field instruments and the Mark VI controller. Clean signals allow the controller’s PID loops to maintain tighter fuel-to-air ratio control, reducing fuel consumption and improving heat rate. It also eliminates the need for external signal conditioning hardware, reducing auxiliary power draw in the I/O subsystem.

Q2: Is the IS200TPROH1B compatible with both Mark VI and Mark VIe systems?
Yes. The IS200TPROH1B is designed for the GE Mark VI platform and is also compatible with Mark VIe systems that use the same I/O termination architecture. For Mark VIe installations using the newer IONet communication backbone, compatibility should be verified against the specific rack configuration and I/O module assignments. Our technical team can assist with compatibility confirmation prior to purchase.

Q3: What is the recommended replacement interval, and how do I know if my current board needs replacing?
GE recommends periodic inspection of termination boards as part of scheduled turbine control system maintenance, typically every 3–5 years depending on operating environment. Signs of a degraded IS200TPROH1B include increased signal noise on analog inputs, intermittent I/O faults logged by the Mark VI controller, and unexplained deviations in sensor readings. If your condition monitoring system shows increasing variance in thermocouple or pressure readings without corresponding process changes, the termination board should be inspected and tested.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every IS200TPROH1B unit undergoes functional testing prior to shipment, including continuity verification, impedance measurement, and visual inspection for connector damage, corrosion, and component integrity. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty service includes replacement or repair at no additional cost. Units are packaged in anti-static materials and shipped with full traceability documentation.
