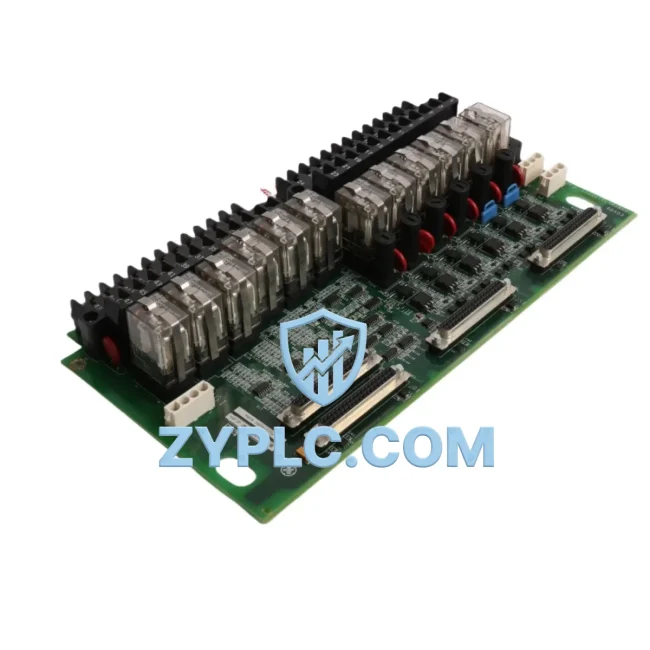

GE IS200TRLYS1B System-Ready Output Terminal Board for Mark VI Architecture

GE IS200TRLYS1B System-Ready Output Terminal Board for Mark VI Architecture

The GE IS200TRLYS1B is a dedicated output terminal board engineered for deployment within the GE Mark VI Turbine Control System — one of the most widely adopted distributed control architectures in power generation, oil & gas, and heavy industrial environments. Rather than functioning as a standalone component, the IS200TRLYS1B occupies a critical position within the Mark VI’s layered I/O infrastructure, serving as the physical interface between the controller’s digital output signals and the field-level actuators, relays, and solenoid drivers that govern turbine operation. Understanding its role requires examining the full system architecture in which it operates — from the VME-based controller backplane down through the terminal board layer to the process field.

In a complete Mark VI control system, the architecture is organized across several functional layers. At the control layer, the IS215UCVEH2A or IS215UCVEH2AE UCVE controller board serves as the central processing unit, executing turbine protection logic, sequencing algorithms, and closed-loop control strategies. This controller communicates with I/O boards through the VME backplane, where modules such as the IS200VSVOH1B servo output board and the IS200DSPXH1A digital signal processor board handle high-speed signal conditioning. The IS200TRLYS1B connects downstream from these boards, providing the physical terminal interface that routes discrete output signals to field devices.

The terminal board layer in Mark VI architecture is designed for modularity and field accessibility. The IS200TRLYS1B mounts in the control cabinet’s terminal board zone, where it interfaces with the I/O pack via a dedicated ribbon or cable connector. Its output channels are wired directly to field devices — including solenoid valves, trip relays, and auxiliary contactors — making it a critical node in the turbine’s protective and sequencing logic. In redundant Mark VI configurations (TMR — Triple Modular Redundancy), three sets of I/O packs and terminal boards operate in parallel, with voting logic ensuring that a single board failure does not interrupt turbine operation. The IS200TRLYS1B is fully compatible with this TMR architecture, supporting the system’s overall availability and fault-tolerance requirements.

From a network and communications perspective, the Mark VI system relies on the IS200EACFG1A Ethernet adapter and the IS200STCIS1A serial communications interface to connect the control system to plant-level SCADA, DCS, and historian platforms. The IS200TRLYS1B does not participate directly in network communications, but its reliable output switching is essential for the integrity of the data that these communication modules report upstream. Any degradation in output terminal board performance — such as contact wear, wiring faults, or connector oxidation — can produce false state changes that propagate through the entire data acquisition chain.

Power distribution within the Mark VI cabinet is managed by dedicated power supply modules, including the IS200EPCTG1A power converter and associated bus distribution boards. The IS200TRLYS1B operates within the 24 VDC or 125 VDC field power domain, depending on the specific output channel configuration and the field device requirements. Proper power segmentation between the controller logic supply and the field output supply is essential for noise immunity and for protecting the controller backplane from field-side transients. Engineers commissioning systems with the IS200TRLYS1B should verify field power voltage levels and fusing before energizing output channels.

At the human-machine interface layer, the Mark VI system typically integrates with GE’s Cimplicity HMI or third-party SCADA platforms via OPC-DA or OPC-UA protocols. Operators monitor turbine output states — including the discrete outputs driven through the IS200TRLYS1B — on graphical mimic displays that reflect real-time field device status. Accurate terminal board wiring and correct I/O pack configuration are prerequisites for reliable HMI state representation. During commissioning, engineers use the Mark VI ToolboxST configuration software to map IS200TRLYS1B output channels to their corresponding logic variables, verify signal forcing, and validate trip relay operation before turbine startup.

For long-term maintenance, the IS200TRLYS1B offers significant advantages in a spares management strategy. As a field-replaceable unit, it can be swapped without disturbing the I/O pack or the controller backplane, minimizing downtime during corrective maintenance. Its terminal block design allows field wiring to be disconnected and reconnected without re-termination, provided that wiring labels and documentation are maintained. Plants operating multiple GE Mark VI systems — common in combined-cycle power plants with multiple gas turbine trains — benefit from standardizing on a common spare inventory that includes the IS200TRLYS1B alongside companion boards such as the IS200TRLYH1B and IS200TRLYS1A, ensuring cross-unit interchangeability.

Architecture Specification Table

Coordinated Control System Design

Deploying the IS200TRLYS1B within a Mark VI architecture requires careful coordination across multiple system layers. At the controller level, the IS215UCVEH2A UCVE processor executes the output logic that drives the terminal board’s relay channels. The controller communicates with the I/O pack — typically an IS200IOCIH1A or equivalent I/O controller interface — which in turn drives the IS200TRLYS1B’s output channels based on the configured logic state. In TMR systems, three independent I/O packs drive three IS200TRLYS1B boards simultaneously, with the voted output determining the actual field device state.

Power for the output relay coils is sourced from the cabinet’s field power bus, distributed through the IS200EPCTG1A power converter module. Signal integrity between the I/O pack and the terminal board depends on the condition of the interconnecting cable and the cleanliness of the connector pins — a common maintenance checkpoint during annual turbine outages. At the field side, the IS200TRLYS1B’s output terminals connect to solenoid valve drivers, trip relay coils, and auxiliary contact inputs on motor control centers, integrating the turbine control system with the plant’s broader electrical infrastructure.

For system architects designing new Mark VI installations or upgrading existing ones, the IS200TRLYS1B pairs naturally with the IS200TRLYH1B (a higher-density relay output terminal board variant) and the IS200TRLYS1A (the predecessor revision), allowing flexible configuration of output channel counts based on the turbine’s I/O requirements. Communication gateway modules such as the IS200EACFG1A Ethernet adapter ensure that output states are accurately reflected in the plant DCS and historian, supporting both real-time monitoring and post-event analysis.

Application in Layered Automation Systems

The IS200TRLYS1B finds its primary application in gas turbine and steam turbine control systems at combined-cycle power plants, simple-cycle peaker plants, and industrial cogeneration facilities. In these environments, the board’s relay output channels control critical protective functions — including fuel valve trip solenoids, lube oil pump starters, and cooling system actuators — that must respond within milliseconds to turbine protection logic commands. The Mark VI’s TMR architecture, supported by the IS200TRLYS1B’s redundant deployment, ensures that protective actions are executed reliably even in the presence of a single-point hardware failure.

In oil and gas applications — including offshore platform compression trains and onshore gas processing facilities — the IS200TRLYS1B supports the control of compressor anti-surge valves, seal gas systems, and emergency shutdown (ESD) relay circuits. The board’s compatibility with 125 VDC field power makes it suitable for integration with plant-wide ESD systems that use high-voltage DC for relay coil operation, a common design choice in facilities where long cable runs require higher drive voltages for reliable relay actuation.

In petrochemical and refinery process control applications, the IS200TRLYS1B is deployed in rotating equipment control panels where GE Mark VI systems manage compressor trains, pumps, and blowers. Its modular, field-replaceable design supports the maintenance philosophies of facilities that operate on continuous production schedules, where planned outage windows are short and corrective maintenance must be completed rapidly. The availability of tested, warranted spare boards — such as those supplied by ZYPLC with a 12-Month Warranty — is a key factor in minimizing mean time to repair (MTTR) for these critical assets.

Architecture Engineering FAQ

Q1: Is the IS200TRLYS1B compatible with both TMR and Simplex Mark VI configurations?
Yes. The IS200TRLYS1B is designed for use in both TMR (Triple Modular Redundancy) and Simplex Mark VI architectures. In TMR systems, three boards are deployed in parallel with voted output logic; in Simplex systems, a single board is used per output group. The board’s physical form factor and connector interface are identical in both configurations, simplifying spare parts management across mixed-architecture fleets.

Q2: What is the recommended procedure for replacing an IS200TRLYS1B during a turbine outage?
Replacement should follow GE Mark VI maintenance procedures: de-energize the field power supply for the affected output group, disconnect the I/O pack cable, label and remove field wiring from the terminal blocks, install the replacement IS200TRLYS1B, reconnect field wiring per the as-built wiring diagrams, reconnect the I/O pack cable, and re-energize. After replacement, use ToolboxST to verify I/O pack communication with the new terminal board and perform output signal forcing tests to confirm correct field device response before returning the turbine to service.

Q3: What warranty and quality assurance does ZYPLC provide for the IS200TRLYS1B?
ZYPLC supplies the IS200TRLYS1B with a 12-Month Warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output channel continuity and connector integrity. ZYPLC maintains stock of Mark VI terminal boards and I/O components to support urgent spare requirements, with expedited shipping available for critical plant outage situations. For technical inquiries or order support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
