GE IS200TSVOH1B System-Ready Servo Termination for Mark VI

GE IS200TSVOH1B System-Ready Servo Termination for Mark VI: Control System Architecture and Upstream-Downstream Coordination

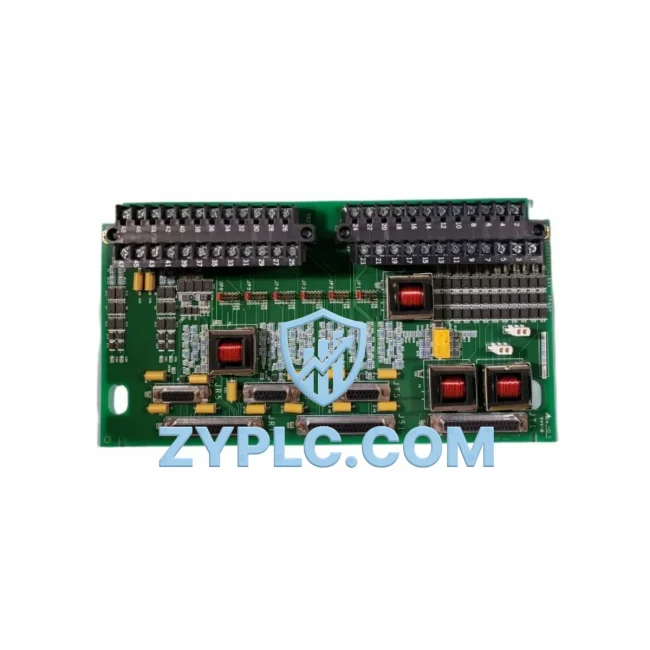

The GE IS200TSVOH1B is a Servo Termination Board engineered specifically for deployment within the GE Mark VI Turbine Control System architecture. Rather than functioning as a standalone component, the IS200TSVOH1B occupies a critical position in the servo control layer, bridging the digital command outputs of the Mark VI controller with the physical actuators that govern turbine valve positioning, fuel flow regulation, and speed control. Understanding this board’s role requires examining the full control system hierarchy — from the CPU and I/O modules at the top, through the communication and termination layers, down to the servo actuators and field devices that execute real-time commands.

In a complete Mark VI turbine control architecture, the IS200TSVOH1B works in close coordination with the IS200TSVOH1A predecessor variant, the IS215VCMIH2B VME Communication Module, and the IS200TREGH1B Turbine Regulation Board. The servo termination board receives conditioned analog and digital signals from the IS200TBCIH1B I/O Terminal Board and routes them through precisely matched servo amplifier channels to the hydraulic or electro-mechanical actuators on the turbine skid. This signal path must maintain sub-millisecond latency and microvolt-level accuracy to ensure stable turbine speed and load response — requirements that the IS200TSVOH1B is specifically designed to meet within the Mark VI’s deterministic control loop.

Architecture Specification Table

Coordinated Control System Design

The IS200TSVOH1B does not operate in isolation. Its value is realized only when properly integrated within the broader Mark VI control architecture, where each module layer contributes to system-wide determinism, redundancy, and maintainability.

At the CPU and controller layer, the IS215UCVEH2A or IS215UCVEH2B Mark VI controller card issues servo position commands based on real-time turbine speed, load, and temperature feedback. These commands are transmitted over the IONet communication network — GE’s proprietary deterministic Ethernet protocol — to the I/O and termination boards downstream. The IS200TSVOH1B receives these commands and converts them into the precise analog current or voltage signals required by the servo valve amplifiers.

At the I/O and termination layer, the IS200TSVOH1B works alongside the IS200TBCIH1B Terminal Board for signal conditioning and the IS200TREGH1B Turbine Regulation Board for speed and load governing. The IS200TSVOH1B specifically handles the servo output channels, providing the low-impedance, high-accuracy drive signals that servo actuators require. Feedback signals from LVDT (Linear Variable Differential Transformer) or RVDT (Rotary Variable Differential Transformer) position sensors are returned through the IS200TSVOH1B back to the controller, closing the servo control loop with the precision necessary for turbine stability.

At the power distribution layer, the IS200TPROS1B Power Supply Board or equivalent Mark VI power module provides regulated 24 VDC to the IS200TSVOH1B and adjacent boards. Proper power sequencing and voltage stability are prerequisites for accurate servo output — any ripple or transient on the supply rail can introduce positioning errors that affect turbine valve response. The IS200TSVOH1B’s internal filtering and regulation circuitry is designed to reject common-mode noise from the industrial power environment.

At the communication and network layer, the IS215VCMIH2B VME Communication Module manages the IONet interface between the controller and the I/O boards, including the IS200TSVOH1B. In TMR (Triple Modular Redundancy) configurations, three independent IS200TSVOH1B boards may be installed in parallel, with the Mark VI controller performing continuous voting logic to detect and isolate any single-channel fault without interrupting turbine operation. This redundancy architecture is essential for gas turbine, steam turbine, and combined-cycle power plant applications where unplanned shutdowns carry significant operational and financial consequences.

At the HMI and supervisory layer, the GE Cimplicity or ToolboxST engineering workstation provides the configuration interface for servo channel calibration, LVDT scaling, and fault diagnostics. Engineers use ToolboxST to map IS200TSVOH1B servo channels to specific valve actuators, set position limits, configure feedback gain, and verify loop integrity during commissioning. This software-hardware integration is a key advantage of the Mark VI platform — all servo parameters are stored in the controller configuration and can be restored rapidly during board replacement, minimizing maintenance downtime.

Application in Layered Automation Systems

The IS200TSVOH1B finds application across a wide range of industrial automation environments where precise actuator control and system reliability are non-negotiable requirements.

In gas turbine power generation, the IS200TSVOH1B controls the fuel control valve, inlet guide vane actuator, and bleed valve servo systems. Accurate servo positioning directly affects combustion efficiency, emissions compliance, and turbine ramp rate. Plants operating GE Frame 6, Frame 7, and Frame 9 gas turbines rely on the IS200T series termination boards to maintain sub-1% positioning accuracy across the full load range.

In steam turbine and combined-cycle plants, the IS200TSVOH1B interfaces with the main steam control valve and extraction valve servo systems. The board’s ability to support TMR redundancy makes it suitable for base-load steam turbines where continuous availability is required. Combined-cycle plants benefit from the IS200TSVOH1B’s compatibility with both the gas turbine and steam turbine Mark VI controllers, simplifying spare parts inventory and maintenance training.

In petrochemical and refinery applications, compressor anti-surge control systems use servo termination boards to drive high-speed recycle valve actuators. The IS200TSVOH1B’s fast response time and high output accuracy are critical in these applications, where a delayed or inaccurate servo response can result in compressor surge, equipment damage, and process shutdown.

In water and wastewater treatment, large pump and turbine installations use Mark VI-based control systems with IS200T series boards for flow control valve positioning. The IS200TSVOH1B’s industrial temperature rating and noise immunity make it suitable for the electrically challenging environments found in pump stations and treatment facilities.

In mining and mineral processing, grinding mill drives and large fan systems use servo-controlled actuators for load balancing and process optimization. The IS200TSVOH1B supports these applications through its robust signal conditioning and compatibility with the Mark VI’s process control extensions.

Architecture Engineering FAQ

Q1: Is the IS200TSVOH1B compatible with both Mark VI and Mark VIe control systems, and can it be used in TMR configurations?
The IS200TSVOH1B is designed for the GE Mark VI Turbine Control System and is compatible with Mark VI TMR, Mark VI Simplex, and select Mark VIe migration architectures. In TMR configurations, three boards are installed in parallel across the R, S, and T controller channels, with the Mark VI performing continuous three-way voting on servo feedback signals. Compatibility with specific Mark VIe configurations should be verified against the system’s I/O module mapping and ToolboxST configuration files before installation.

Q2: What is the recommended procedure for replacing an IS200TSVOH1B in a live turbine control system, and how does the 12-Month Warranty apply?
In TMR systems, the IS200TSVOH1B can typically be replaced on one channel while the turbine remains online, provided the remaining two channels are healthy and the controller is in TMR voting mode. The replacement board should be pre-configured using ToolboxST before installation to minimize the time the system operates in duplex mode. Our 12-Month Warranty covers the IS200TSVOH1B against functional failure under normal operating conditions, including servo output accuracy, feedback signal integrity, and communication interface performance. Warranty claims are supported with full documentation and technical assistance.

Q3: How does the IS200TSVOH1B support long-term maintenance and spare parts strategy for aging Mark VI installations?
As GE Mark VI systems age, maintaining a reliable supply of IS200T series boards becomes a critical element of plant maintenance strategy. The IS200TSVOH1B is available as a tested, inspected spare with full functional verification, supporting plants that need to maintain multi-year inventory buffers. Because all servo channel configurations are stored in the ToolboxST controller database rather than on the board itself, replacement boards can be installed and commissioned rapidly without re-engineering. This architecture-level design choice significantly reduces the skill level and time required for board-level maintenance, making the IS200TSVOH1B a cost-effective long-term spare for Mark VI installations worldwide.
