GE IS200TSVOH1BBB Energy-Saving Servo Terminal Board

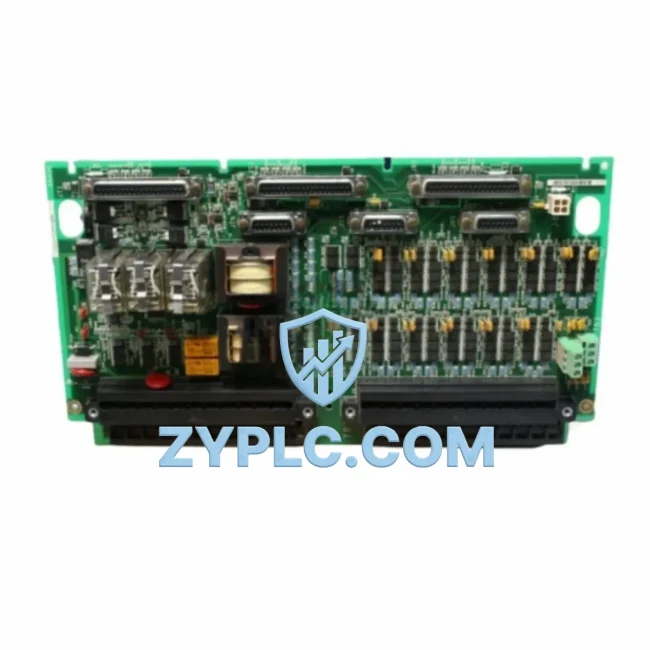

GE IS200TSVOH1BBB Energy-Saving Servo Terminal Board: Precision Control for Mark VI Automation

The GE IS200TSVOH1BBB is a high-performance servo terminal board engineered for the GE Mark VI turbine control system, one of the most widely deployed distributed control platforms in power generation and heavy industrial automation. Designed to interface servo actuators with the Mark VI controller backbone, the IS200TSVOH1BBB plays a critical role in reducing unnecessary actuator cycling, minimizing valve hunting, and ensuring that energy delivered to rotating machinery is precisely matched to process demand — directly contributing to measurable reductions in fuel consumption and auxiliary power draw.

In modern industrial facilities where energy cost per operating hour is under constant scrutiny, the quality of servo control signal conditioning directly impacts turbine heat rate, compressor efficiency, and overall plant availability. The IS200TSVOH1BBB provides the signal integrity and loop stability required to keep servo-driven actuators operating within their optimal efficiency band, avoiding the micro-oscillations that silently erode energy performance over thousands of operating hours.

Every unit offered by ZYPLC undergoes full functional testing prior to shipment, is backed by a 12-month warranty, and is available from in-stock inventory for rapid global dispatch.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200TSVOH1BBB does not operate in isolation — its energy optimization value is realized through its tight integration within the broader GE Mark VI control architecture. At the controller level, the GE IS200VCMIH1B VCMI board manages communication between the Mark VI processor and I/O terminal boards including the IS200TSVOH1BBB, ensuring that servo command signals are transmitted with minimal latency and without data corruption that could cause unnecessary actuator movement.

On the drive side, the servo loop managed through the IS200TSVOH1BBB works in coordination with the GE IS200VSVO servo output board, which converts digital control commands into the analog current signals that position hydraulic servo valves. When these two boards operate in a well-tuned loop, valve positioning accuracy improves, reducing the excess fuel flow that results from valve overshoot in poorly conditioned servo systems.

For facilities running variable-speed auxiliary equipment alongside their turbine trains, pairing the Mark VI servo control system with a GE AF-650GP or AF-600FP variable frequency drive on auxiliary motors — such as cooling water pumps, lube oil pumps, and fuel gas compressors — creates a layered energy optimization strategy. The VFD reduces motor energy consumption during partial-load conditions while the IS200TSVOH1BBB ensures the primary turbine actuators respond precisely to load demand changes, preventing the cascade of inefficiencies that occurs when actuator response lags behind process demand.

Power quality and energy monitoring are equally important in this architecture. The GE IS200EPCTG1A power conditioning board and associated IS200IOCAG1A I/O terminal board provide the measurement infrastructure needed to capture real-time power consumption data from the control system cabinet, enabling operators to detect abnormal draw patterns that may indicate a degrading servo actuator or a developing fault in the servo amplifier chain — before those faults escalate into unplanned downtime.

At the HMI and supervisory level, the Mark VI system interfaces with GE Cimplicity SCADA or third-party DCS platforms via the IS200STCIH1A communication interface board, enabling plant-wide energy dashboards that correlate servo valve position, actuator current draw, and turbine heat rate in real time. This data loop — from the IS200TSVOH1BBB servo terminal through the VCMI, across the communication interface, and up to the SCADA layer — forms the backbone of a predictive maintenance strategy that identifies energy waste before it becomes a reliability event.

For redundancy-critical installations, the GE IS200TRLYH1B relay output board and IS200TTURH1C turbine terminal board complement the IS200TSVOH1BBB in the Mark VI I/O chassis, ensuring that protective relay logic and turbine supervisory signals remain available even during partial board replacement or maintenance windows — minimizing the energy and production losses associated with unplanned shutdowns.

Power Optimization in Real Production Lines

In a combined-cycle power plant operating a GE Frame 7 or Frame 9 gas turbine, the servo control system managed through boards like the IS200TSVOH1BBB directly influences the turbine’s heat rate — the amount of fuel energy required to generate one kilowatt-hour of electrical output. A servo terminal board that introduces signal noise, offset drift, or loop instability forces the turbine’s fuel control valve to hunt continuously around its setpoint, consuming excess fuel and generating additional thermal stress on hot-section components.

Field data from Mark VI-controlled turbine installations consistently shows that replacing a degraded or counterfeit servo terminal board with a genuine, tested IS200TSVOH1BBB restores valve positioning accuracy to within specification, reducing heat rate deviation by measurable margins. In a 100 MW gas turbine operating at a heat rate deviation of just 0.5%, the annual fuel cost impact can exceed hundreds of thousands of dollars — making the cost of a properly sourced, tested servo terminal board negligible by comparison.

Beyond fuel efficiency, the IS200TSVOH1BBB contributes to production line rhythm optimization by ensuring that turbine load response to grid demand signals is smooth and predictable. Erratic servo response creates load swings that stress the generator, the step-up transformer, and the grid interconnection equipment, increasing maintenance frequency and reducing the effective availability of the generating unit. A stable, well-conditioned servo terminal board is therefore not just an energy efficiency component — it is a reliability asset that directly supports higher equipment utilization rates and lower lifecycle maintenance costs.

For industrial facilities using the Mark VI to control steam turbine-driven compressors or pumps, the same principles apply: precise servo control of the governor valve reduces steam consumption at partial load, lowers condenser thermal load, and extends the interval between major overhauls by reducing the mechanical fatigue associated with valve cycling. ZYPLC maintains in-stock inventory of the IS200TSVOH1BBB specifically to support rapid replacement scenarios where production continuity depends on same-week board availability.

Energy Optimization FAQ

Q1: How does the IS200TSVOH1BBB contribute to energy savings in a Mark VI turbine control system?
The IS200TSVOH1BBB conditions and routes servo command signals between the Mark VI controller and hydraulic servo actuators. By maintaining signal integrity and loop stability, it prevents actuator hunting — the continuous small oscillations around a setpoint that waste fuel, increase wear, and degrade turbine heat rate. A properly functioning servo terminal board is one of the lowest-cost, highest-impact components for sustaining turbine energy efficiency over time.

Q2: Is the IS200TSVOH1BBB compatible with both Mark VI and Mark VIe control systems?
The IS200TSVOH1BBB is designed for the GE Mark VI platform. Compatibility with Mark VIe configurations depends on the specific I/O chassis and VCMI board revision in use. ZYPLC’s technical team can verify cross-compatibility based on your existing board revision and chassis configuration before shipment — contact us with your full system BOM for confirmation.

Q3: What is the recommended replacement process, and how is the board tested before shipment?
Every IS200TSVOH1BBB shipped by ZYPLC undergoes a full functional test that verifies signal conditioning performance, connector integrity, and board-level power draw within specification. Replacement is a direct board swap within the Mark VI I/O chassis — no firmware changes are required for same-revision replacements. ZYPLC recommends performing a servo loop calibration check after installation to confirm that actuator positioning accuracy meets the turbine OEM’s specification.

Q4: What warranty and after-sales support does ZYPLC provide for the IS200TSVOH1BBB?
All IS200TSVOH1BBB units are covered by a 12-month warranty from the date of shipment. If a board fails within the warranty period under normal operating conditions, ZYPLC will provide a replacement unit. Our team also offers pre-sale technical consultation to confirm part compatibility and post-sale support for installation questions. Contact us at [email protected] or +86 19859288691.
