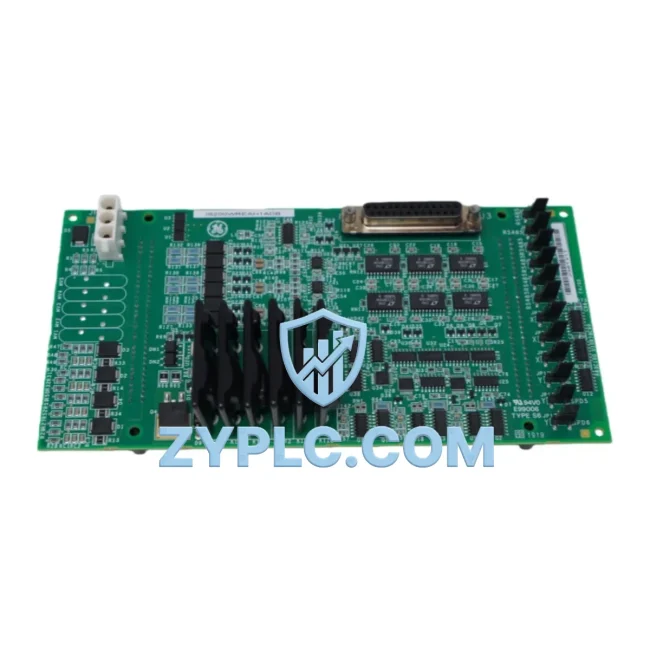

GE IS200WREAH1ABB System-Ready Servo Control for Mark VI Architecture

GE IS200WREAH1ABB System-Ready Servo Control for Mark VI Architecture

The GE IS200WREAH1ABB is a precision-engineered Servo Control Module purpose-built for integration within the GE Mark VI Turbine Control System architecture. Rather than functioning as a standalone component, the IS200WREAH1ABB occupies a critical position within the layered automation hierarchy — bridging the control layer and the execution layer to deliver deterministic servo positioning, real-time feedback processing, and closed-loop actuator management across gas turbine, steam turbine, and combined-cycle power generation platforms.

In modern industrial control architectures, system consistency depends on the seamless coordination of every module across the control, I/O, network, power, HMI, and execution layers. The IS200WREAH1ABB is designed with this philosophy at its core. Its servo drive outputs interface directly with hydraulic actuators and valve positioners at the execution layer, while its upstream communication path connects to the Mark VI controller backbone — typically managed by the IS215UCVEH2A or IS220PTURH1B controller modules — ensuring that turbine speed, load, and fuel control commands are executed with microsecond-level precision.

Architecture Specification Table

Coordinated Control System Design

The IS200WREAH1ABB does not operate in isolation. Its value is realized through its contextual integration within a complete Mark VI control cabinet. In a typical TMR (Triple Modular Redundancy) turbine control architecture, three IS200WREAH1ABB modules operate in parallel — each receiving identical servo commands from the controller and voting on output to eliminate single-point failures. This redundancy design is coordinated with the IS200TSVOH1B servo voter module, which arbitrates between the three servo outputs before driving the final actuator signal.

At the power layer, the IS200WREAH1ABB relies on stable DC bus distribution from the IS200EPCTG1A power converter module, which conditions incoming AC supply into the regulated voltages required by the servo electronics. Any instability at the power layer directly impacts servo loop stability, making power module selection and maintenance a critical architectural consideration.

On the I/O layer, the IS200WREAH1ABB works in conjunction with IS200AEPAH1A analog I/O modules and IS200DTURH1BBB digital I/O terminal boards to aggregate position feedback signals, limit switch states, and actuator health diagnostics. These signals are routed through the IONet communication backbone — a deterministic, high-speed network that connects all I/O modules to the central controller without the latency associated with standard Ethernet or fieldbus protocols.

For human-machine interface integration, the Mark VI system typically pairs with GE Cimplicity HMI workstations or third-party SCADA platforms via OPC-DA/UA gateways. The IS200WREAH1ABB’s servo status, loop error, and actuator position data are surfaced through these HMI layers, enabling operators to monitor valve positioning in real time and respond to process deviations without direct panel access.

In extended rack configurations, the IS200BICLH1A backplane interconnect module and IS200TRLYH1BCC relay output terminal board are commonly deployed alongside the IS200WREAH1ABB to expand I/O capacity and provide hardwired trip relay outputs — essential for emergency shutdown (ESD) integration in turbine protection systems.

Application in Layered Automation Systems

The IS200WREAH1ABB finds its primary application in power generation facilities operating GE Frame 6, Frame 7, and Frame 9 gas turbines, as well as steam turbine installations in combined-cycle plants. In these environments, the servo control module governs the positioning of fuel control valves, inlet guide vanes, and bypass valves — components whose precise actuation directly determines turbine efficiency, emissions compliance, and grid synchronization performance.

In petrochemical and refinery applications, the IS200WREAH1ABB is deployed within compressor control systems where anti-surge valve positioning demands sub-millisecond response times. The module’s closed-loop LVDT feedback architecture ensures that valve position errors are corrected within a single control scan cycle, preventing compressor surge events that could result in equipment damage and unplanned shutdowns.

Water treatment and pumping station applications leverage the IS200WREAH1ABB for flow control valve automation, where consistent servo positioning across variable pressure conditions is essential for maintaining regulatory compliance with discharge flow rates. The module’s compatibility with the Mark VI TMR architecture provides the fault-tolerance required for continuous 24/7 operation without manual intervention.

In mining and mineral processing facilities, the IS200WREAH1ABB supports conveyor drive control and crusher feed rate management through integration with variable-speed hydraulic actuator systems. Its robust operating temperature range and rack-mounted form factor make it suitable for installation in field control panels subject to vibration, dust ingress, and thermal cycling.

Across all these applications, the IS200WREAH1ABB’s value extends beyond initial commissioning. Its modular design allows for hot-swap replacement in TMR configurations without process interruption, reducing mean time to repair (MTTR) and supporting the long-term maintenance strategies of facilities operating on extended turnaround cycles. Combined with a 12-Month Warranty and full pre-shipment functional testing, the IS200WREAH1ABB represents a reliable, cost-effective solution for both new system builds and legacy Mark VI fleet maintenance programs.

Architecture Engineering FAQ

Q1: Is the IS200WREAH1ABB compatible with both simplex and TMR Mark VI configurations?
Yes. The IS200WREAH1ABB is designed to operate in simplex (single-controller), dual-redundant, and full TMR Mark VI architectures. In TMR configurations, three modules are installed in the R, S, and T racks respectively, with servo output voting managed by the IS200TSVOH1B voter module. Slot assignment and rack wiring must follow GE Mark VI system engineering guidelines to ensure correct TMR arbitration behavior.

Q2: What commissioning steps are required when replacing an IS200WREAH1ABB in a live Mark VI system?
In a TMR architecture, the IS200WREAH1ABB can be replaced on the affected rack (R, S, or T) while the remaining two racks maintain control. After physical installation, the replacement module must be initialized through the Mark VI Toolbox software — specifically the Control System Toolbox (CST) — to download the current application configuration, calibrate the LVDT feedback channel, and verify servo loop tuning parameters against the as-built engineering documentation. A servo stroke test should be performed before returning the module to automatic control.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term system maintenance?
The 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) replacements. All units are tested against GE Mark VI electrical and functional specifications prior to shipment. Contextual Integration support means that our technical team can assist with rack compatibility verification, firmware revision matching, and system architecture review to ensure the IS200WREAH1ABB is correctly specified for your existing Mark VI platform — reducing the risk of compatibility issues during installation and minimizing engineering rework costs.
