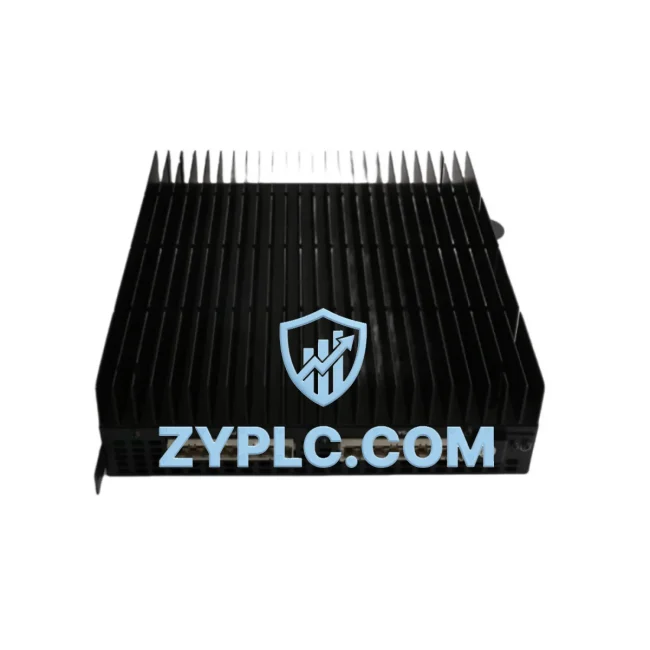

GE IS2020RKPSG1AK System-Ready Rack Power Supply for Mark VIe Architecture

GE IS2020RKPSG1AK System-Ready Rack Power Supply for Mark VIe Control Architecture

The GE IS2020RKPSG1AK is a rack-mounted power supply module purpose-engineered for deployment within the GE Mark VIe distributed control system architecture. As a foundational power layer component, this module delivers regulated, conditioned DC power to the Mark VIe I/O and controller racks, ensuring that every upstream and downstream element in the control hierarchy operates within its specified electrical envelope. In turbine control, power generation, and process automation environments where system uptime is non-negotiable, the IS2020RKPSG1AK provides the electrical backbone that sustains continuous, fault-tolerant operation across all control tiers.

Unlike generic power supplies, the IS2020RKPSG1AK is designed with the Mark VIe rack form factor and backplane interface in mind. It integrates directly into the IS2020 series rack assembly, distributing power to co-resident modules including the IS2020VCMIH2B VME controller module, IS2020AEBIH1B analog I/O boards, and IS2020DTURH1A digital I/O terminal boards. This native compatibility eliminates the need for external power conditioning hardware and reduces the number of potential failure points within the control cabinet, directly improving mean time between failures (MTBF) for the overall system.

In a fully configured Mark VIe system, the IS2020RKPSG1AK operates in close coordination with the IS2020TRPSH1A terminal power supply and the IS2020RKPSH1A redundant power supply module. When deployed in a dual-supply redundant configuration, the system achieves N+1 power redundancy, allowing one supply to assume full load without interruption in the event of a primary supply fault. This architecture is particularly critical in gas turbine control panels, steam turbine protection systems, and combined-cycle plant automation where unplanned shutdowns carry significant operational and financial consequences.

From a system architecture perspective, the IS2020RKPSG1AK sits at the power layer, feeding regulated voltage rails to the control layer (Mark VIe VCMI controllers), the I/O layer (analog and digital I/O modules), and the communication layer (IS2020XTBA Ethernet gateway and IONET communication modules). The stability of this power layer directly determines the signal integrity of the I/O layer, the determinism of the control layer scan cycle, and the reliability of the network layer’s real-time data exchange. Any voltage ripple or transient at the power supply output propagates through the rack backplane and can introduce noise into analog signal chains or cause spurious digital state changes — risks that the IS2020RKPSG1AK is specifically designed to eliminate through its internal filtering and regulation circuitry.

For engineering teams managing large-scale automation projects, the IS2020RKPSG1AK also simplifies spare parts management. Because it is a standardized module within the Mark VIe platform, a single spare unit can serve as a replacement across multiple rack assemblies within the same plant, reducing the total spare parts inventory required to maintain system availability. This standardization extends to the module’s diagnostic interface: the IS2020RKPSG1AK reports power status and fault conditions through the Mark VIe diagnostic bus, allowing the CIMPLICITY HMI or ToolboxST configuration software to surface power supply health data alongside process variables and controller diagnostics in a unified engineering view.

In layered automation architectures, the IS2020RKPSG1AK supports deployment in environments ranging from simple single-rack turbine control panels to complex multi-rack, multi-controller plant-wide DCS installations. Its wide input voltage tolerance accommodates the variable power quality conditions found in industrial substations and remote generation facilities, while its thermal design supports continuous operation across the full industrial temperature range without derating. These characteristics make it equally suitable for indoor control room installations and outdoor weatherproof enclosures in petrochemical, mining, and water treatment applications.

All IS2020RKPSG1AK units supplied by ZYPLC are fully tested prior to shipment, with functional verification performed under load conditions representative of a populated Mark VIe rack. Each unit is covered by a 12-Month Warranty and is supported by ZYPLC’s Contextual Integration service, which provides application-specific guidance on rack assembly, power budget calculation, redundancy configuration, and ToolboxST commissioning. Our engineering support team is available to assist with system architecture reviews, ensuring that the IS2020RKPSG1AK is correctly specified and integrated within your specific control system topology.

Architecture Specification Table

Coordinated Control System Design

The IS2020RKPSG1AK does not operate in isolation — its value is realized through its role as the power foundation for a coordinated ensemble of Mark VIe modules. In a typical turbine control rack, the IS2020RKPSG1AK supplies power to the IS2020VCMIH2B VME controller module, which executes the real-time control algorithms for turbine speed, temperature, and load management. Adjacent to the controller, IS2020AEBIH1B analog input/output boards condition thermocouple, RTD, and 4–20 mA process signals, while IS2020DTURH1A digital I/O terminal boards interface with discrete field devices including solenoid valves, limit switches, and relay outputs.

At the network layer, the IS2020XTBA Ethernet communication gateway bridges the Mark VIe IONET control network to the plant DCS backbone, enabling real-time data exchange with the CIMPLICITY HMI workstation and the plant historian. The IS2020TRPSH1A terminal power supply complements the IS2020RKPSG1AK by providing isolated power to field terminal assemblies, ensuring that field wiring faults do not propagate into the rack power bus. For applications requiring enhanced availability, the IS2020RKPSH1A redundant power supply module is installed alongside the IS2020RKPSG1AK to form a hot-standby power pair.

At the execution layer, the Mark VIe system interfaces with GE Speedtronic servo amplifiers and electro-hydraulic control (EHC) valve positioners through the I/O modules powered by the IS2020RKPSG1AK. The integrity of the power supply directly determines the accuracy of the servo control loop and the response time of the hydraulic actuators. In redundant TMR (Triple Modular Redundancy) configurations, three IS2020RKPSG1AK units — one per controller rack — operate in parallel, with the Mark VIe voting logic ensuring that a single power supply fault does not affect the control output.

Application in Layered Automation Systems

The IS2020RKPSG1AK is deployed across a broad range of industrial automation sectors where the Mark VIe platform is the control system of choice. In power generation, it powers the turbine control racks in gas turbine, steam turbine, and combined-cycle plants operated by major utilities worldwide. In petrochemical and refinery applications, it supports Mark VIe-based compressor control and rotating equipment protection systems, where continuous operation is mandated by process safety requirements.

In mining and minerals processing, the IS2020RKPSG1AK is found in mill drive control systems and conveyor automation panels, where the harsh electrical environment — characterized by high-frequency switching transients from variable frequency drives — demands a power supply with robust input filtering. In water and wastewater treatment facilities, it supports pump station automation and SCADA-integrated control panels, where the Mark VIe’s diagnostic transparency reduces the cost of remote site maintenance. In metallurgical and steel plant applications, it powers the control racks managing electric arc furnace (EAF) electrode regulation and rolling mill automation, where thermal cycling and vibration place additional demands on power supply reliability.

Across all these sectors, the IS2020RKPSG1AK’s role is consistent: to provide a stable, regulated power foundation that allows every other module in the Mark VIe rack to perform at its specified accuracy and reliability level, from initial commissioning through decades of continuous operation.

Architecture Engineering FAQ

Q1: Is the IS2020RKPSG1AK compatible with all Mark VIe rack configurations, including TMR and simplex systems?
A: Yes. The IS2020RKPSG1AK is compatible with both simplex and TMR Mark VIe rack assemblies. In TMR configurations, one unit is installed per controller rack, and the Mark VIe platform manages power fault detection and system voting independently of the power supply hardware. ZYPLC’s Contextual Integration service can assist with power budget verification for your specific rack population to confirm compatibility before installation.

Q2: Can the IS2020RKPSG1AK be replaced online without shutting down the Mark VIe system?
A: In a dual-supply redundant configuration using the IS2020RKPSG1AK and IS2020RKPSH1A, the redundant supply assumes full load when the primary is removed, enabling hot-swap replacement without process interruption. In simplex configurations, a controlled shutdown is required. ZYPLC recommends maintaining at least one spare IS2020RKPSG1AK on-site for rapid replacement, and all units supplied carry a 12-Month Warranty covering manufacturing defects and premature failure.

Q3: What commissioning steps are required when installing a replacement IS2020RKPSG1AK in an existing Mark VIe system?
A: Replacement of the IS2020RKPSG1AK is a hardware swap that does not require ToolboxST reconfiguration, as the module does not carry application software. After installation, verify output voltage levels at the rack backplane test points, confirm that the Mark VIe diagnostic bus reports the supply as healthy in ToolboxST, and check that all co-resident I/O modules have resumed normal operation. ZYPLC’s Contextual Integration support team is available to guide engineers through the commissioning verification process remotely.

—
