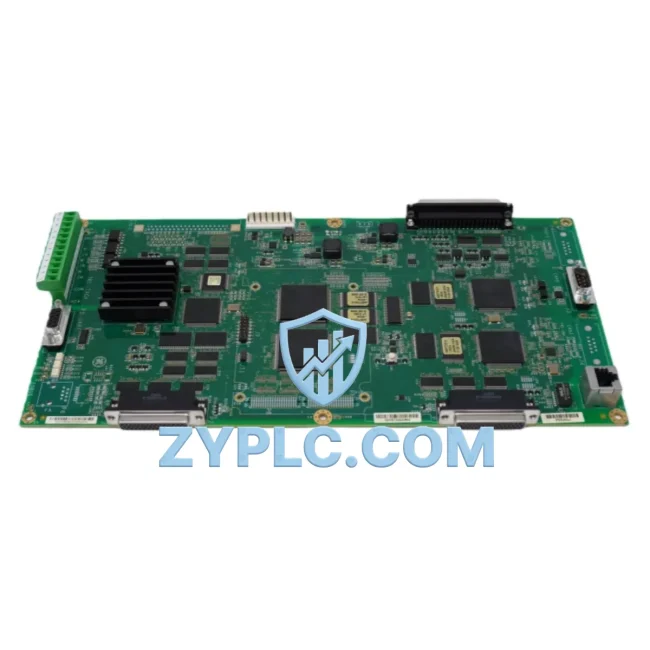

GE IS210MACCH1A Energy-Saving Input Terminal Board Mark VIe

GE IS210MACCH1A Energy-Saving Input Terminal Board for Optimized Mark VIe Automation

The GE IS210MACCH1A is a high-performance input terminal board engineered for the GE Mark VIe turbine control platform. Designed to serve as a critical interface between field instrumentation and the control system, this board plays a pivotal role in reducing energy waste, improving signal fidelity, and enabling real-time power optimization across gas turbine, steam turbine, and combined-cycle power generation facilities. With a 12-month warranty, factory-tested quality assurance, and immediate stock availability, the IS210MACCH1A is a trusted solution for facilities seeking to maximize equipment uptime and minimize operational energy costs.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern turbine control environment, energy efficiency is not achieved by a single component — it is the result of a tightly integrated system where every module contributes to reducing losses and improving response accuracy. The IS210MACCH1A sits at the heart of this architecture as the primary input interface, collecting real-time process data from field sensors and transmitting it with high fidelity to the GE Mark VIe controller core.

On the controller side, the IS215UCVEH2A VME controller card processes the incoming signals and executes turbine sequencing logic, ensuring that fuel consumption is precisely matched to load demand — a key factor in reducing idle-state energy waste. Paired with the IS200TREGH1B terminal board for excitation regulation, the system maintains generator output stability without over-driving the excitation circuit, which directly reduces reactive power losses.

For drive-level energy management, the GE AF-650 GP variable frequency drive (VFD) works in tandem with the Mark VIe I/O system to modulate motor speed on auxiliary equipment such as cooling fans, lube oil pumps, and fuel gas compressors. By receiving setpoint commands derived from the IS210MACCH1A’s sensor inputs, the VFD eliminates the energy penalty of fixed-speed motor operation — often reducing auxiliary motor energy consumption by 20–40% under partial load conditions.

Power quality and consumption monitoring are handled by the IS200EPCTG1A power distribution board and supplemented by the IS215ACLEH1A AC line filter module, which together ensure that harmonic distortion from drive switching does not propagate back into the plant power grid. The IS210AEBIH3A analog I/O board extends the system’s monitoring reach to additional process variables — pressure, flow, and temperature — feeding the energy management loop with the granular data needed for dynamic optimization.

At the HMI and supervisory level, the GE Cimplicity SCADA platform aggregates the data streams from all Mark VIe I/O boards, including the IS210MACCH1A, to generate real-time energy dashboards and trend logs. Operators can identify inefficient operating windows, correlate energy spikes with specific process events, and schedule maintenance before a degraded sensor causes the control system to compensate with excess fuel or power. The IS200DSPXH1D digital signal processor board further enhances this loop by executing fast Fourier transform (FFT) analysis on vibration and electrical signals, enabling early detection of bearing wear or winding degradation that would otherwise increase motor draw.

Communication across the entire architecture relies on the IONet Ethernet-based I/O network, which provides deterministic, low-latency data exchange between the IS210MACCH1A and the controller. This eliminates polling delays that can cause control lag, ensuring that energy-saving setpoint adjustments are executed within the required cycle time. For facilities integrating with plant-wide DCS or MES systems, the IS200BICLH1A communication interface board supports Modbus TCP and OPC-UA bridging, enabling the Mark VIe energy data to flow seamlessly into enterprise energy management platforms.

Power Optimization in Real Production Lines

In gas turbine power plants operating under variable grid demand, the ability to precisely track load changes without over-fueling is the single largest lever for heat rate improvement. The IS210MACCH1A enables this by providing the Mark VIe controller with accurate, low-noise analog inputs from fuel flow transmitters, inlet guide vane position sensors, and exhaust temperature thermocouples. When these signals are clean and timely, the controller’s combustion tuning algorithms can operate at their designed efficiency point — reducing specific fuel consumption and CO₂ output per MWh generated.

In combined-cycle facilities, the board’s multi-channel input capability allows simultaneous monitoring of both the gas turbine and heat recovery steam generator (HRSG) instrumentation loops from a single terminal board assembly. This consolidation reduces wiring complexity, lowers the risk of ground loops that introduce measurement error, and decreases the number of I/O chassis required — all of which translate to lower panel power consumption and reduced cooling load in the control room.

For compressor stations and industrial process plants, the IS210MACCH1A supports predictive maintenance workflows by feeding high-resolution process data into the Mark VIe’s condition monitoring functions. Vibration amplitude trends, bearing temperature gradients, and seal gas differential pressure readings are continuously logged and compared against baseline profiles. When a deviation is detected, the system generates an early warning alarm — allowing maintenance teams to schedule intervention during planned downtime rather than responding to an emergency trip that wastes energy through uncontrolled shutdown and restart cycles.

Facilities that have standardized on the GE Mark VIe platform report measurable improvements in overall equipment effectiveness (OEE) after replacing degraded or counterfeit I/O boards with genuine, tested components like the IS210MACCH1A. Accurate signal inputs reduce the frequency of spurious trips, which are among the most energy-intensive events in turbine operation due to the fuel and time required for a cold restart. Every avoided trip represents not only energy savings but also reduced thermal stress on hot-section components — extending the interval between major inspections and lowering lifecycle maintenance costs.

All units supplied by ZYPLC undergo a structured outgoing inspection process that includes functional signal path verification, insulation resistance testing, and communication loop-back testing on a Mark VIe-compatible test bench. This ensures that the IS210MACCH1A performs to GE specification from the moment it is installed, eliminating the commissioning delays and energy-wasting tuning iterations that can accompany untested replacement parts.

Energy Optimization FAQ

Q1: How does the IS210MACCH1A contribute to reducing turbine energy consumption?
The IS210MACCH1A provides the Mark VIe controller with accurate, low-noise process inputs that enable precise combustion and load control. By eliminating signal errors that cause the controller to apply conservative fuel margins or trigger unnecessary protective actions, the board helps the turbine operate closer to its optimal heat rate curve — directly reducing fuel consumption per unit of power output.

Q2: Is the IS210MACCH1A compatible with both Mark VI and Mark VIe systems?
The IS210MACCH1A is designed primarily for the GE Mark VIe platform. While some terminal boards share mechanical form factors with the earlier Mark VI series, compatibility depends on the specific I/O pack and controller revision in your system. ZYPLC’s technical team can verify compatibility based on your system’s Bill of Materials (BOM) or controller firmware version before shipment.

Q3: What is the recommended replacement and testing process for this board?
ZYPLC recommends a hot-standby swap procedure where the replacement IS210MACCH1A is pre-configured and verified on a test bench before installation. Each unit shipped by ZYPLC has passed functional signal path testing and loop-back communication verification. Upon installation, the Mark VIe’s built-in I/O diagnostics will confirm channel health within the first controller scan cycle. Full commissioning typically requires less than two hours, minimizing production interruption.

Q4: What warranty coverage is provided, and what does it include?
All IS210MACCH1A units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions and includes free replacement or repair. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. ZYPLC maintains stock of tested replacement units to ensure rapid warranty fulfillment with minimal lead time.
