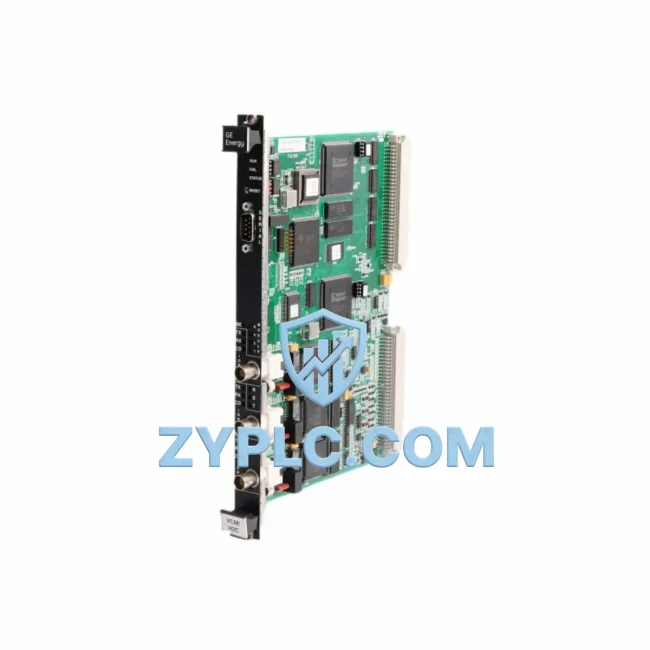

GE IS215VCMIH2CA System-Ready VCMI Module for Mark VIe Architecture

GE IS215VCMIH2CA System-Ready VCMI Module for Mark VIe Control System Architecture

The GE IS215VCMIH2CA is a VME Communications Module Interface (VCMI) card engineered for deployment within GE’s Mark VIe distributed control platform. Rather than functioning as a standalone component, this module occupies a critical position in the layered architecture of turbine and process control systems — serving as the high-speed communication backbone between the VME backplane, I/O packs, and the broader plant network. Its role spans the control layer, network layer, and I/O coordination layer simultaneously, making it one of the most architecturally significant cards in the Mark VIe cabinet.

In a complete Mark VIe control system, the IS215VCMIH2CA works in close coordination with the IS215UCVEH2A (UCVE controller card), the IS215AEPAH1B (analog I/O pack), and the IS215VCROH2A (VCRO relay output module). Together, these components form the core of a redundant, high-availability control architecture capable of managing gas turbines, steam turbines, combined-cycle units, and compressor trains. The VCMI card handles the IONet Ethernet communication protocol that links the controller to distributed I/O packs mounted in remote terminal units or local I/O enclosures.

System architects integrating the IS215VCMIH2CA into a new or retrofit installation will typically pair it with the IS215VCOCH1B (VCOC I/O communication card) and the IS200VTURH1BBA (turbine protection module) to establish a complete signal chain from field sensors through the control layer to the operator interface. The module supports TMR (Triple Modular Redundancy) configurations when used alongside duplicate controller racks, ensuring that no single point of failure can interrupt turbine protection or process control functions.

From a network layer perspective, the IS215VCMIH2CA interfaces with the plant’s Ethernet infrastructure through dedicated IONet ports, enabling deterministic, low-latency communication between the Mark VIe controller and its associated I/O packs. This architecture eliminates the traditional serial bottlenecks found in older Mark V and Mark IV systems, replacing them with a structured, packet-based communication model that supports real-time diagnostics, remote configuration, and online firmware updates without process interruption.

In power generation applications — including combined-cycle plants, peaking units, and cogeneration facilities — the IS215VCMIH2CA enables the Mark VIe system to maintain synchronization across multiple control domains. When integrated with the IS215VCMIH2CB variant or used alongside the IS200TREGH1B (turbine regulation card), the module supports load-sharing algorithms, speed governing, and protective relay coordination. This makes it equally applicable in petrochemical compressor control, offshore platform automation, and large-scale industrial process management.

For maintenance engineers, the IS215VCMIH2CA offers significant advantages in long-term system upkeep. Its hot-swap capability — when the system is configured for redundant operation — allows card replacement without shutting down the turbine or process unit. Diagnostic LEDs on the faceplate provide immediate visual feedback on communication status, power integrity, and fault conditions, reducing mean time to repair (MTTR) in critical production environments. Spare card inventory management is simplified by the module’s broad compatibility across Mark VIe rack configurations, including both the IS200BPPBH1A backplane and the IS200BPPBH1B extended backplane variants.

In water treatment and municipal utility applications, the IS215VCMIH2CA supports SCADA integration through the Mark VIe’s OPC-UA and Modbus TCP gateway functions, enabling seamless data exchange with supervisory systems without requiring additional protocol converters. Mining and mineral processing installations benefit from the module’s robust EMI shielding and wide operating temperature range, which ensures reliable communication in electrically noisy environments typical of crusher circuits, conveyor drives, and flotation cell control systems.

Every IS215VCMIH2CA supplied by ZYPLC is covered by a 12-Month Warranty, with pre-shipment functional verification performed on calibrated GE Mark VIe test benches. This ensures that each unit arrives ready for immediate rack installation and system commissioning, minimizing project schedule risk for both new installations and emergency replacement scenarios.

Architecture Specification Table

Coordinated Control System Design

A complete Mark VIe turbine control architecture built around the IS215VCMIH2CA typically includes the following coordinated components across all system layers:

At the control layer, the IS215UCVEH2A UCVE controller card serves as the primary processing unit, executing turbine control algorithms and protective logic while the IS215VCMIH2CA manages all IONet communication traffic between the controller and the I/O network. In TMR configurations, three UCVE cards operate in parallel with three VCMI cards, with voting logic ensuring that any single card failure is masked without process interruption.

At the I/O layer, the IS215AEPAH1B analog I/O pack and IS215VCROH2A relay output module receive commands and return process data through the IONet links managed by the IS215VCMIH2CA. Thermocouple inputs from exhaust temperature arrays, pressure transmitter signals from compressor stages, and vibration data from proximity probes all flow through this communication path before reaching the controller for processing.

The network layer is extended through the IS215VCOCH1B VCOC card, which provides additional communication ports for plant historian integration, HMI connectivity, and remote engineering workstation access. The IS200TREGH1B turbine regulation card interfaces with the speed governing system, while the IS200VTURH1BBA turbine protection module handles overspeed detection and emergency shutdown logic — both dependent on the reliable IONet communication maintained by the IS215VCMIH2CA.

At the power layer, the Mark VIe cabinet’s power distribution system — typically fed through redundant 24 VDC or 125 VDC supplies — provides conditioned power to the VME backplane, ensuring that the IS215VCMIH2CA and all co-resident cards receive stable, regulated voltage even during plant power disturbances. The IS200BPPBH1A backplane distributes this power across all card slots while maintaining the VME bus integrity required for high-speed VCMI communication.

Application in Layered Automation Systems

In combined-cycle power generation, the IS215VCMIH2CA enables coordinated control of gas turbine, steam turbine, and heat recovery steam generator (HRSG) systems within a unified Mark VIe architecture. The module’s IONet communication links allow the gas turbine controller to share load-sharing signals with the steam turbine controller in real time, enabling optimized combined-cycle efficiency without requiring separate DCS integration middleware.

In petrochemical and refinery applications, the IS215VCMIH2CA supports compressor anti-surge control systems where millisecond-level response times are required to prevent surge events that could damage rotating equipment. The module’s deterministic communication latency — a fundamental characteristic of the IONet protocol — ensures that anti-surge valve commands reach the output modules within the timing windows required by the control algorithm.

In water and wastewater treatment facilities, the Mark VIe system with IS215VCMIH2CA provides a scalable control platform for pump station automation, chemical dosing control, and filtration process management. The module’s SCADA integration capability allows plant operators to monitor and control distributed pump stations from a central control room, with all process data archived to the plant historian through the OPC-UA interface.

In mining and mineral processing, the IS215VCMIH2CA’s robust EMI tolerance makes it suitable for deployment in crusher control rooms, concentrator plant control systems, and tailings management automation. The module’s wide operating temperature range accommodates the thermal cycling typical of outdoor electrical rooms in open-pit mining environments.

Architecture Engineering FAQ

Q1: Is the IS215VCMIH2CA compatible with both TMR and dual-redundant Mark VIe configurations?
Yes. The IS215VCMIH2CA supports both Triple Modular Redundancy (TMR) and dual-redundant Mark VIe architectures. In TMR configurations, three VCMI cards operate simultaneously with voting logic managed by the UCVE controller cards. In dual-redundant configurations, one active and one standby VCMI card provide automatic failover without process interruption. The specific redundancy mode is determined by the Mark VIe system configuration file (ToolboxST project), not by the hardware itself.

Q2: Can the IS215VCMIH2CA be replaced online without shutting down the turbine?
In properly configured redundant Mark VIe systems, the IS215VCMIH2CA supports hot-swap replacement when the redundant partner card is healthy and active. The replacement procedure requires following GE’s Mark VIe maintenance procedures, including verifying that the redundant communication path is fully operational before removing the faulted card. ZYPLC recommends maintaining at least one spare IS215VCMIH2CA in site inventory to minimize replacement time during unplanned failures. All units supplied by ZYPLC include a 12-Month Warranty and are pre-tested for immediate installation readiness.

Q3: What is the long-term availability and support status of the IS215VCMIH2CA?
The IS215VCMIH2CA is a mature Mark VIe platform component with an extensive installed base across global power generation and industrial facilities. ZYPLC maintains stock of both new and refurbished IS215VCMIH2CA units to support long-term maintenance requirements for plants operating Mark VIe systems beyond the original OEM support window. Each unit is covered by a 12-Month Warranty and undergoes functional verification before shipment. For plants transitioning to newer GE control platforms, ZYPLC can advise on compatible migration paths that preserve existing I/O infrastructure investments.
