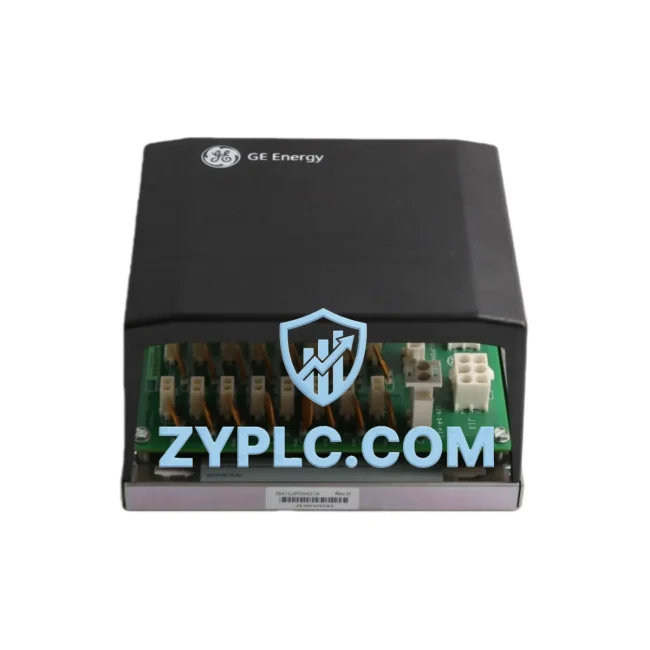

GE IS400JPDHG1A Energy-Saving Power Distribution Board for Mark VI Automation
The GE IS400JPDHG1A is a high-efficiency power distribution board engineered for the GE Mark VI turbine control platform. Designed to meet the rigorous demands of industrial energy optimization, this module plays a central role in regulating, distributing, and monitoring electrical power across critical automation architectures. In environments where every watt of consumed energy translates directly into operational cost, the IS400JPDHG1A delivers structured power routing that minimizes resistive losses, eliminates redundant switching paths, and ensures stable voltage delivery to downstream control and drive components.
Industrial facilities operating gas turbines, steam turbines, or combined-cycle power plants rely on the Mark VI control system to maintain precise operational parameters. The IS400JPDHG1A serves as the backbone of that power infrastructure — ensuring that controllers, I/O modules, servo amplifiers, and communication gateways all receive clean, conditioned power without voltage sag or transient interference that could trigger unnecessary shutdowns or degrade control accuracy.
Efficiency Performance Table
| Parameter |
Specification |
| SKU |
IS400JPDHG1A |
| Brand / Series |
GE (General Electric) / Mark VI |
| Product Type |
Power Distribution Board |
| Power Consumption |
Low-loss distribution architecture; optimized for 24 VDC / 28 VDC Mark VI bus rails |
| Operating Efficiency |
High-efficiency power routing with minimal voltage drop across distribution nodes |
| Compatible Systems |
GE Mark VI Turbine Control System; compatible with VCMI, TCCB, TCCA, and TCQB modules |
| Application Environment |
Gas turbine, steam turbine, combined-cycle power plants, industrial energy facilities |
| Energy Saving Value |
Reduces parasitic power losses; supports stable load distribution to prevent energy waste from control faults |
| Origin |
United States |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The IS400JPDHG1A does not operate in isolation — it is the power foundation upon which an entire energy-aware automation architecture is built. In a typical Mark VI turbine control cabinet, the distribution board interfaces directly with the GE IS200VCMIH2BAA VCMI communication module, which handles high-speed data exchange between the turbine controller and plant-level SCADA systems. Accurate, low-latency communication depends entirely on stable power delivery, and the IS400JPDHG1A ensures that communication integrity is never compromised by power fluctuation.
On the control execution side, the GE IS215TCCBH2A turbine control board and IS215TCQAH2A quad-core processor module draw regulated power from the distribution bus managed by the IS400JPDHG1A. These controllers execute real-time PID loops, fuel valve positioning, and load-sharing algorithms — all of which require microsecond-level power stability to avoid control drift that would otherwise increase fuel consumption and reduce turbine efficiency.
For drive-level energy management, the Mark VI system integrates with external variable frequency drives (VFDs) such as the GE AF-600 FP series for auxiliary motor control — including cooling fans, lube oil pumps, and fuel gas compressors. The IS400JPDHG1A supports the I/O infrastructure that feeds speed reference signals and enable commands to these drives, allowing the control system to modulate motor speed in response to real-time load demand rather than running motors at fixed speed and wasting energy.
Power quality monitoring is handled through dedicated measurement modules such as the GE IS200EPCTG1A power conditioning board, which works in tandem with the distribution board to filter harmonics and regulate bus voltage. On the I/O side, GE IS200AEPAH1A analog I/O modules collect sensor data from thermocouples, pressure transducers, and flow meters — feeding the control system with the real-time process data needed to make energy-efficient control decisions. The GE IS200TREGH1B turbine regulation module uses this data to continuously trim fuel flow and inlet guide vane position, directly reducing heat rate and improving overall plant efficiency.
For human-machine interface and energy visualization, the Mark VI system connects to GE Cimplicity HMI workstations via the IS200VCMIH2BAA Ethernet gateway, allowing operators to monitor real-time power consumption, turbine output, and efficiency KPIs from a centralized dashboard. This closed-loop visibility — from power distribution through control execution to operator interface — is what makes the IS400JPDHG1A a critical enabler of plant-wide energy optimization rather than just a passive power routing component.
Power Optimization in Real Production Lines
In real-world turbine control applications, unplanned downtime is the single largest driver of energy inefficiency. When a turbine trips due to a power fault in the control cabinet, the restart sequence consumes significant fuel and generates no useful output for 20–40 minutes. The IS400JPDHG1A mitigates this risk by providing redundant power distribution paths and robust board-level protection against overcurrent and voltage transients — keeping the Mark VI system online and the turbine generating at rated efficiency.
Beyond fault prevention, the IS400JPDHG1A contributes to production line rhythm optimization by ensuring that all control modules receive power simultaneously and without sequencing delays. In combined-cycle plants where gas turbine exhaust feeds a heat recovery steam generator (HRSG), control synchronization between the gas turbine Mark VI and the steam turbine control system is essential. Any power-related delay in the gas turbine controller can desynchronize the thermal cycle, forcing the plant to dump steam and waste recovered energy.
Predictive maintenance is another area where the IS400JPDHG1A delivers measurable value. By maintaining stable power to the GE IS200AEPAH1A analog input modules and vibration monitoring channels, the control system can continuously track bearing temperatures, shaft vibration, and lube oil pressure — building the historical dataset needed for condition-based maintenance scheduling. This shifts maintenance from time-based (replacing parts on a calendar schedule regardless of condition) to condition-based (replacing parts only when degradation is detected), reducing both maintenance costs and the energy wasted during unnecessary maintenance shutdowns.
All units supplied by ZYPLC are sourced from verified industrial channels, subjected to functional power-on testing, and covered by a 12-month warranty. Stock availability is maintained to support urgent replacement requirements, with fast global shipping to minimize turbine downtime and restore energy production as quickly as possible.
Energy Optimization FAQ
Q1: How does the IS400JPDHG1A contribute to energy savings in a Mark VI turbine control system?
The IS400JPDHG1A optimizes power distribution across the Mark VI control cabinet by minimizing resistive losses and ensuring stable voltage delivery to all control, I/O, and communication modules. Stable power prevents control faults that cause turbine trips — and avoiding unplanned trips is one of the most impactful ways to improve overall plant energy efficiency and capacity factor.
Q2: Is the IS400JPDHG1A compatible with both gas turbine and steam turbine Mark VI configurations?
Yes. The IS400JPDHG1A is designed for the GE Mark VI platform, which is deployed across gas turbine, steam turbine, and combined-cycle applications. It is compatible with standard Mark VI cabinet configurations including VCMI, TCCB, TCCA, and TCQB module arrangements. If you are unsure about compatibility with your specific cabinet revision, contact our technical team with your cabinet drawing number.
Q3: What is the recommended replacement process, and how long does it take?
Replacement of the IS400JPDHG1A is typically performed during a planned maintenance window. The board is a plug-in module within the Mark VI power distribution assembly. Before replacement, the turbine should be taken offline and the cabinet de-energized per GE Mark VI maintenance procedures. The physical swap takes approximately 30–60 minutes; post-installation power-on verification and control system restart add another 1–2 hours. ZYPLC provides pre-tested units to eliminate the risk of installing a faulty replacement.
Q4: Does ZYPLC’s 12-month warranty cover the IS400JPDHG1A, and what does it include?
Yes. Every IS400JPDHG1A supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes power-on testing and functional verification before dispatch. In the event of a warranty claim, ZYPLC will provide a replacement unit or repair service — contact plc.sales@zyplc.com or +86 19859288691 to initiate a claim.
