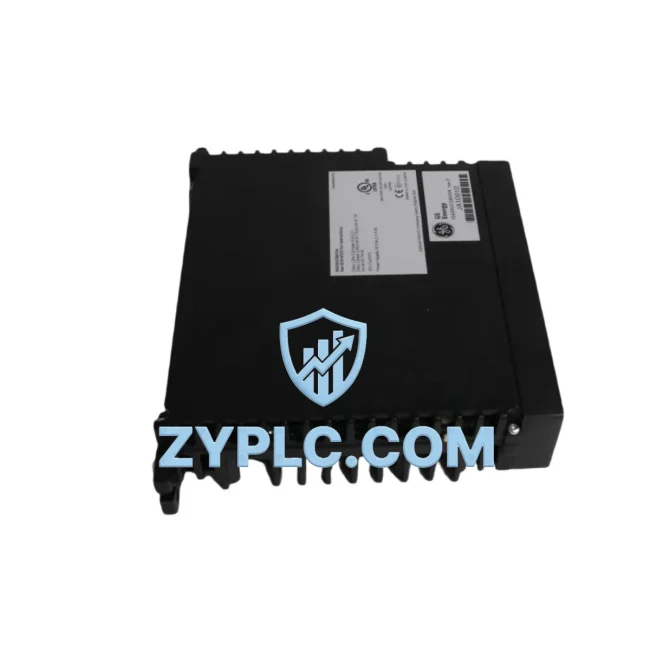

GE IS420UCSB1A System-Ready UCSB Controller for Mark VIe Architecture

GE IS420UCSB1A System-Ready UCSB Controller for Mark VIe Architecture: Control System Architecture and Upstream-Downstream Coordination

The GE IS420UCSB1A is a UCSB (Universal Controller Simplex Board) module engineered as a core processing unit within the GE Mark VIe distributed control system platform. Rather than functioning as a standalone component, the IS420UCSB1A occupies a critical position at the control layer of a multi-tier automation architecture — coordinating signal acquisition from the I/O layer, executing real-time logic, managing communication across the network layer, and delivering command outputs to the execution layer. Understanding this module’s role within the full system hierarchy is essential for engineers designing, commissioning, or maintaining turbine control, power generation, or process automation systems built on the Mark VIe platform.

In a complete Mark VIe control architecture, the IS420UCSB1A operates in conjunction with a structured set of upstream and downstream components. At the I/O layer, terminal boards such as the IS200TBCIH1B and IS200TBAIH1B interface directly with field instrumentation — thermocouples, pressure transmitters, speed sensors, and discrete I/O devices — converting analog and digital signals into data streams that the UCSB controller processes in real time. The IS420UCSB1A receives these signals via the Mark VIe I/O pack architecture, where I/O packs such as the IS420YDOAS1B or IS420YAICS1B serve as intermediaries between terminal boards and the controller backplane.

At the network layer, the IS420UCSB1A supports IONet — GE’s proprietary deterministic Ethernet-based I/O network — enabling high-speed, low-latency communication between the controller and distributed I/O packs across the control cabinet. This network architecture allows the UCSB module to maintain synchronization with multiple I/O domains simultaneously, which is particularly important in turbine control applications where signal timing directly affects protection response and operational stability. The module also supports integration with higher-level SCADA and DCS networks through standard communication gateways, enabling contextual integration with plant-wide data historians and operator workstations.

The power layer supporting the IS420UCSB1A typically includes redundant DC power supply modules such as the IS420PSVOH1B, which provide regulated 28 VDC to the Mark VIe controller rack. Proper power architecture is critical to maintaining controller uptime in continuous-process environments, and the IS420UCSB1A is designed to operate within a rack that supports hot-standby power redundancy. At the human-machine interface layer, operator workstations running GE’s ToolboxST configuration software communicate directly with the UCSB controller for parameter configuration, diagnostic monitoring, and firmware management — making the IS420UCSB1A the central node through which all engineering and operational interactions pass.

For applications requiring high availability, the IS420UCSB1A can be deployed in a TMR (Triple Modular Redundancy) or dual-redundant controller configuration alongside companion UCSB modules, where voting logic ensures that a single controller fault does not interrupt process control. This redundancy architecture is commonly specified in power generation, oil and gas, and petrochemical applications where unplanned shutdowns carry significant operational and safety consequences. The module’s backplane connectivity within the Mark VIe rack also supports seamless integration with communication modules such as the IS420UCSBH1B for expanded network capability.

Architecture Specification Table

Coordinated Control System Design

Deploying the IS420UCSB1A effectively requires a systems-level perspective that accounts for every layer of the Mark VIe architecture. At the I/O acquisition layer, terminal boards such as the IS200TBCIH1B (thermocouple input) and IS200TBAIH1B (analog input) collect field signals and pass them to I/O packs including the IS420YDOAS1B (analog output) and IS420YAICS1B (analog input controller). These packs communicate with the IS420UCSB1A over IONet, delivering real-time process data for control logic execution.

The controller rack housing the IS420UCSB1A is powered by redundant supply modules such as the IS420PSVOH1B, ensuring that power interruptions at the supply level do not propagate to the controller. In TMR configurations, two or more IS420UCSB1A modules operate in parallel with voting logic managed at the backplane level, providing fault-tolerant control for critical turbine or compressor applications. Communication gateways installed in the same rack enable Modbus TCP or OPC-UA connectivity to plant SCADA systems, allowing the IS420UCSB1A’s real-time data to be surfaced to operator workstations and data historians without disrupting control loop execution.

From an engineering and maintenance perspective, the IS420UCSB1A’s compatibility with ToolboxST means that configuration changes, diagnostic reads, and firmware updates can all be performed online without requiring controller shutdown — a significant advantage in continuous-process environments. Spare module availability is a key consideration for long-term maintenance planning, and ZYPLC maintains tested stock of the IS420UCSB1A and related Mark VIe components to support both planned maintenance cycles and emergency replacement scenarios.

Application in Layered Automation Systems

The IS420UCSB1A is deployed across a wide range of industrial sectors where the GE Mark VIe platform is the control system of choice. In power generation — including gas turbines, steam turbines, and combined-cycle plants — the UCSB controller manages turbine sequencing, speed control, fuel valve positioning, and protection logic, coordinating with flame detectors, vibration monitors, and exhaust temperature arrays through the Mark VIe I/O network.

In oil and gas applications, the IS420UCSB1A serves as the primary controller for compressor trains, wellhead control panels, and pipeline SCADA integration points, where its IONet communication capability ensures deterministic response times even under high I/O load conditions. Petrochemical and refinery applications leverage the module’s TMR redundancy support to meet SIL-rated safety requirements for reactor control and emergency shutdown systems.

Water treatment and municipal utility applications use the IS420UCSB1A in pump station automation, filtration control, and SCADA-integrated monitoring systems, where its long operational lifecycle and broad I/O compatibility reduce the need for platform migrations. In mining and metals processing, the module supports conveyor control, crusher automation, and smelter process management — environments characterized by high electrical noise, wide temperature variation, and demanding continuous-operation requirements. Packaging and discrete manufacturing lines also benefit from the Mark VIe platform’s precision timing and the IS420UCSB1A’s ability to coordinate multi-axis motion and process control within a single controller architecture.

Architecture Engineering FAQ

Q1: Is the IS420UCSB1A compatible with both simplex and TMR Mark VIe controller configurations?
Yes. The IS420UCSB1A is designed for use in simplex controller configurations as a standalone UCSB module, and it is also compatible with TMR (Triple Modular Redundancy) architectures when deployed alongside additional UCSB modules in a voting configuration. The specific redundancy topology is defined during system engineering using GE ToolboxST, and the backplane architecture of the Mark VIe rack supports both configurations without hardware modification.

Q2: What communication protocols does the IS420UCSB1A support for integration with plant SCADA or DCS networks?
The IS420UCSB1A communicates natively over IONet, GE’s deterministic Ethernet-based I/O network, for real-time I/O pack communication. For plant-level integration, the Mark VIe system supports Modbus TCP, OPC-UA, and Profibus connectivity through dedicated communication gateway modules installed in the same controller rack. This enables contextual integration with third-party SCADA platforms, data historians, and operator workstations without impacting control loop performance.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for IS420UCSB1A installations?
All IS420UCSB1A units supplied by ZYPLC are fully tested prior to shipment and covered by a 12-Month Warranty against manufacturing defects and functional failures. ZYPLC maintains ongoing stock of the IS420UCSB1A and related Mark VIe components — including I/O packs, terminal boards, and power supply modules — to support both scheduled maintenance replacements and emergency procurement. Our technical team can assist with compatibility verification, installation guidance, and system architecture consultation to ensure long-term operational continuity for your Mark VIe installation.
